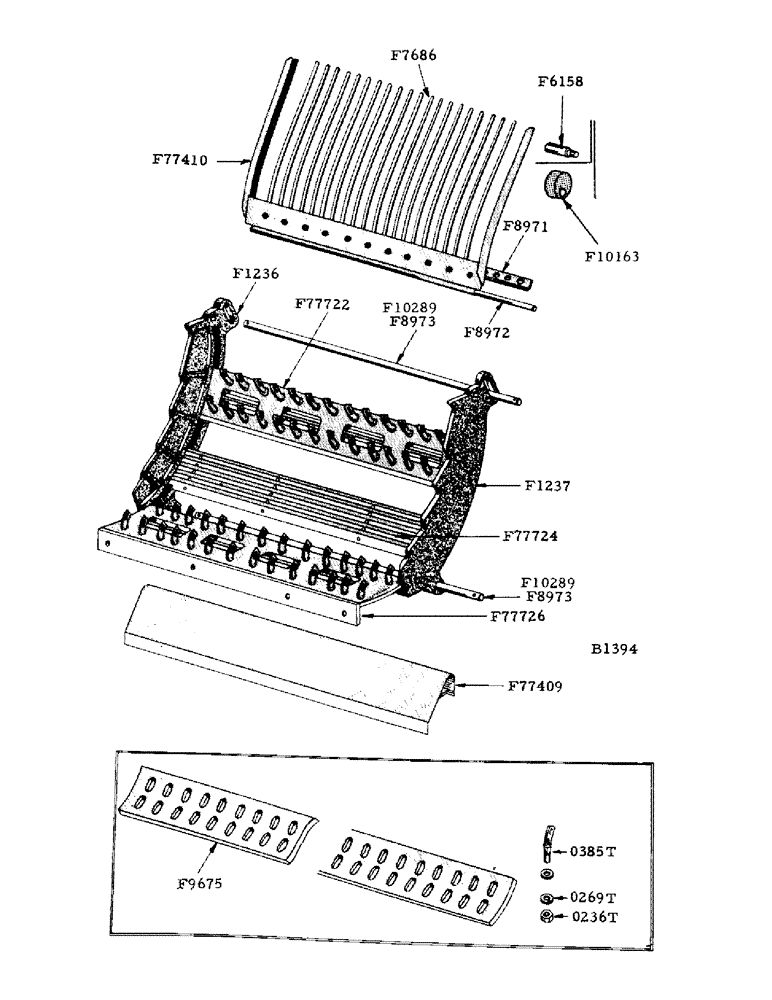

Запчасти Case IH 800 (062) - CONCAVES, TINES AND REMOVABLE FEED PLATE, SPIKE TOOTH CYLINDER (66) - THRESHING

F1236

CIRCLE - concave, R.H.

1шт.

F1237

CIRCLE - concave, L.H.

1шт.

F6158

STUD - tine assembly guide (standard before no. 8179101) F10163 may be used when these stocks are exhausted

2шт.

3/8" N.C. hex. nut and lockwasher

2шт.

F7686

TINE - grate

19шт.

1/4" x 1" carr. bolt w/hex. nut and lockwasher

19шт.

F8971

STRIP - bolting, grate tine

1шт.

F8972

ROD - grate tine hinge

1шт.

F8973

SHAFT - concave, front and rear (standard on machines before no. 8179751) use F10289 when these stocks are exhausted

2шт.

F9675

CONCAVE - blank (see F77724)

1шт.

F10163

ECCENTRIC - tine assembly guide (after no. 8179101) replaces F6158

1шт.

F10289

SHAFT - concave, front and rear (standard on machines after no. 8179751) will replace F8973 on earlier models

2шт.

F77409

PLATE - feed, removable

1шт.

F77410

TINE ASSEMBLY

1шт.

F77722

CONCAVE - rear (includes 29-0236T nuts, 29-0269T lockwasher and 29-0385T teeth) see F77723

1шт.

F77723

CONCAVE - rear, less teeth (see F77261)

1шт.

F77724

CONCAVE - open grate (see F9675)

1шт.

F77726

CONCAVE - front (includes 29-0236T, 29-0269T lockwasher and 29-0385T teeth)

1шт.

F77727

CONCAVE - front, less teeth

1шт.

0236T

NUT - concave tooth

58шт.

0269T

LOCKWASHER

58шт.

0385T

TOOTH - concave

58шт.

1/2" plain washer

58шт.

F9676

CONCAVE - rear, less teeth, clover and alfalfa

1шт.

F9677

CONCAVE - blank, clover and alfalfa

1шт.

F77729

CONCAVE - front, with 4 rows of teeth, clover and alfalfa

1шт.

F77731

CONCAVE - front, less teeth (see F77729), clover and alfalfa

1шт.

F77732

CONCAVE - rear, with 4 rows of teeth, clover and alfalfa

1шт.

0236T

NUT - tooth, clover and alfalfa concaves

116шт.

0269T

LOCKWASHER, tooth, clover and alfalfa concaves

116шт.

0387T

TOOTH - concave, clover and alfalfa

116шт.

F9675

CONCAVE - blank, edible bean, special

1шт.

F78185

CONCAVE - rear, with teeth, edible bean, special

1шт.

F78187

CONCAVE - front, with teeth, edible bean, special

1шт.

07006A

WASHER, edible bean concave, special

42шт.

217-1/2CS

STRIP - cylinder filler, edible bean concave, special

9шт.

03986CS

BLANK - concave, rear, edible bean, special

1шт.

04090CS

CLIP - for 217-1/2CS filler strip, edible bean concave, special

18шт.

5/16" x 1-1/4" carr. bolt with hex. nut and lockwasher, edible bean concave, special

18шт.

0269T

LOCKWASHER - tooth, edible bean concave, special

42шт.

0386T

TOOTH (round) front and rear concaves, edible bean, special

42шт.
