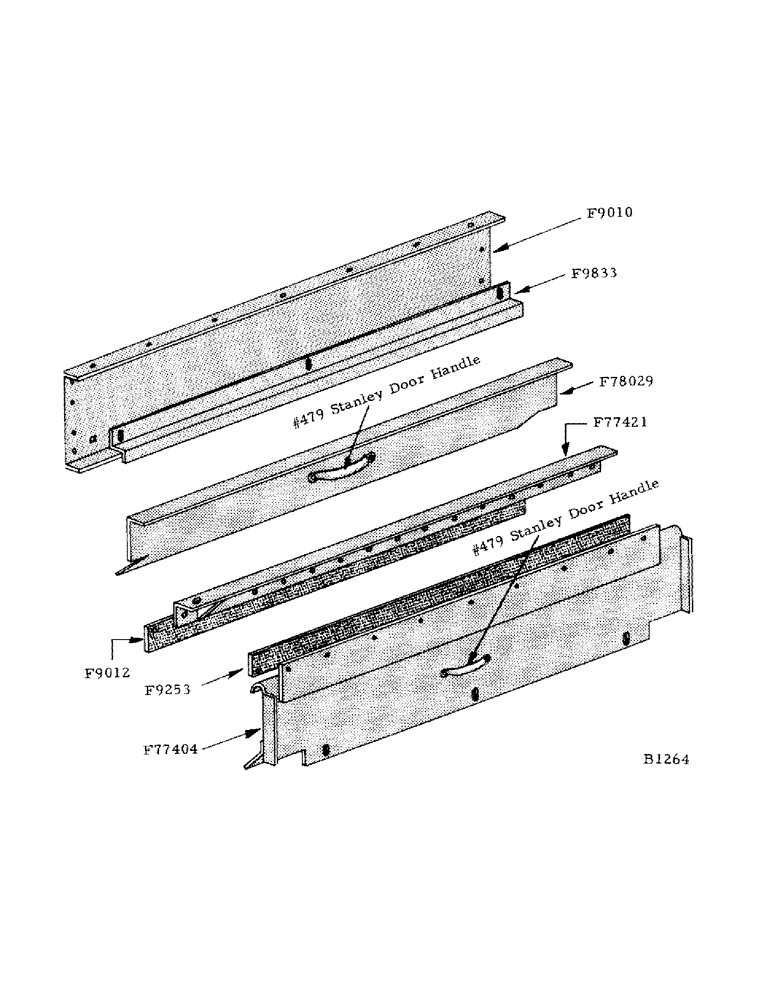

Запчасти Case IH 800 (084) - CONVEYOR RAKE, CONCAVE ACCESS SECTION (60) - PRODUCT FEEDING

F9010

ANGLE - cross, front

1шт.

1/4" x 1/2" N.F. hex. bolt w/hex. nut, lockwasher and plain washer

6шт.

F9012

WIPER (rubber) feeder spout

1шт.

1/4" x 3/4" N.F. hex. bolt w/hex. nut, lockwasher and plain washer

6шт.

F9253

BOOT - seal

1шт.

F9833

PLATE - for front cross angle

1шт.

1/4" x 3/4" carr. bolt w/hex. nut, lockwasher and plain washer

3шт.

F77404

DOOR - boot

1шт.

1/4" x 1/2" carr. bolt w/PT2735S, lockwasher and plain washer

4шт.

F77421

ANGLE - lower cross, front (wiper strip)

1шт.

3/8" x 1-1/4" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

F78029

CROSS SHEET

1шт.
