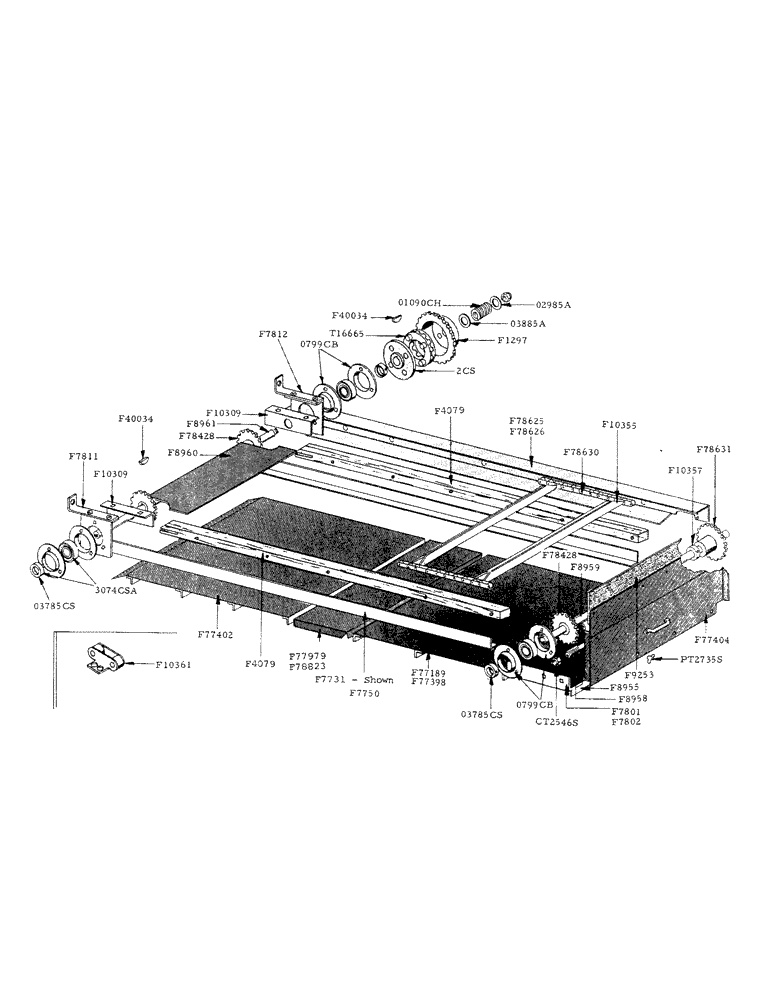

Запчасти Case IH 800 (082) - CONVEYOR RAKE, STEEL CHAIN TYPE (60) - PRODUCT FEEDING

F4079

SUPPORT - conveyor rake chain, R.H. and L.H.

2шт.

1/4" x 3" carr. bolt w/hex nut and lockwasher

8шт.

1/4" x 3-1/4" carr. bolt w/hex nut and lockwasher

4шт.

F7731

ANGLE - conveyor rake, R.H.

1шт.

F7750

ANGLE - conveyor rake, L.H.

1шт.

F7801

ANGLE - end, hinged boot, R.H.

1шт.

3/8" x 3/4" N.F. hex bolt w/hex nut and lockwasher

2шт.

3/8" x 1" N.F. hex bolt w/hex nut and lockwasher

1шт.

F7802

ANGLE - end, hinged boot, R.H.

1шт.

F7811

LOCK STRAP - tightener

2шт.

3/8" x 3" N.C. hex bolt w/hex nut

2шт.

F7812

BRACKET - tightener

2шт.

3/8" x 7/8" N.F. hex bolt w/hex nut and lockwasher

4шт.

F8955

BOOT - conveyor rake

1шт.

1/4" x 5/8" carr. bolt w/hex nut and lockwasher

2шт.

F8958

TIE ROD - across body, threaded both ends

1шт.

F8959

SHAFT - front, conveyor rake

1шт.

F8960

COVER - rear conveyor rake shaft

1шт.

F8961

SHAFT - rear conveyor rake

1шт.

F9253

BOOT - seal

1шт.

3/16" x 3/8" #2156 semi-tubular rivets

7шт.

F10309

SHIELD - dust, rear rake shaft

2шт.

F10355

SLAT - conveyor rake

18шт.

3/16" x 7/16" rd. hd. rivet

72шт.

F10357

COLLAR - for F78361 sprocket

1шт.

F10361

LINK - #A-2 connecting attachment, for F78630 rake

36шт.

F40034

KEY

("A" Woodruff) for rear F78428 sprocket

2шт.

F77189

FLOOR - front conveyor rake (perforated) extra - see F77398

1шт.

F77398

FLOOR - rake, front (see F77189)

1шт.

1/4" x 1/2" carr. bolt w/hex nut and lockwasher

3шт.

1/4" x 5/8" carr. bolt w/hex nut and lockwasher

2шт.

F77402

FLOOR - rear conveyor rake

1шт.

1/4" x 5/8" N.C. flat hd. mach screw

12шт.

F77404

DOOR - boot

1шт.

1/4" x 1/2" carr. bolt w/PT2735S, lockwasher and plain washer

4шт.

F77979

FLOOR - conveyor, access section (regular) see F78823

1шт.

1/4" x 1/2" N.C. hex bolt w/hex nut and lockwasher

6шт.

F78625

SHIELD - conveyor rake chain, L.H.

1шт.

F78626

SHIELD - conveyor rake chain, R.H.

1шт.

F78630

RAKE - conveyor (consists of 18-F10355 slats, 238 plain links, 36-F10361 connecting attachment link, 2-B12521 connecting link and 4-B12523 roller links of #C2050 1-1/4" extended pitch roller chain

1шт.

F78631

SPROCKET (20T) conveyor rake, front L.H.

1шт.

F78428

SPROCKET (20T) conveyor rake, 2-for rear shaft and 1-for front R.H.

3шт.

F78823

FLOOR - conveyor, access section (perforated) see F77979

1шт.

0799CB

FLANGE - for 3074CSA bearing

8шт.

5/16" x 3/4" carr. bolt w/hex nut and lockwasher

12шт.

03785CS

COLLAR for 3074CSA bearing

4шт.

3074CSA

BALL BEARING

(Fafnir #RA100PPB w/03785CS collar) front and rear conveyor rake shafts

4шт.

CT2546S

X

NUT - elastic stop (ESNA #29-E-080) for F8958 tie rod

2шт.

P2735S

X

WING NUT - for 1/4" x 1/2" bolt of F77404 door

4шт.

F1297

SPROCKET (30T) conveyor rake drive

1шт.

1/4" - 28 thrd. Lincoln fitting #5010, conveyor rake drive

1шт.

F10184

CHAIN - drives conveyor rake, strawwalker and tailings auger (use 4-B12474 chain, 1-B12475 chain and 1-B12476 chain #50 roller) grain machines (see F10310)

1шт.

F10310

X

CHAIN - drives conveyor rake, strawwalker and tailings auger (use 5-B12474 chain, 1-B12476 chain, 1-B12505 conn. link, 1-B12506 offset link and 1-B12507 roller link #50 roller chain) bean and rice specials (see F10184)

1шт.

F40034

KEY

("A" Woodruff) for 2CS plate, conveyor rake drive

1шт.

T16665

RING - clutch (replaces 01151CS present stocks are exhausted), conveyor rake drive

2шт.

02985A

WASHER (1-9/16" O.D. x 25/32" I.D. #12 ga.) jump clutch spring, outer, conveyor rake drive

1шт.

03885A

WASHER (1-1/2" O.D. x 29/32" I.D. #12 ga.) jump clutch spring, inner, conveyor rake drive

1шт.

01090CH

SPRING - jump clutch, conveyor rake drive

1шт.

2CS

PLATE - clutch, conveyor rake drive

1шт.
