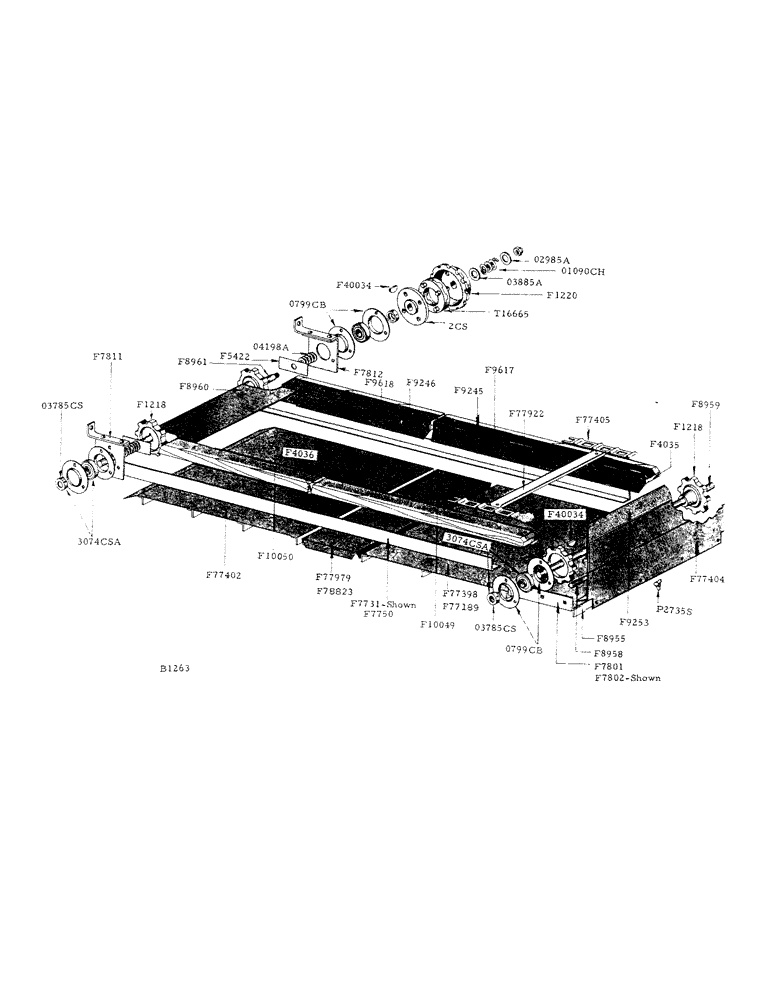

Запчасти Case IH 800 (080) - CONVEYOR RAKE, STEEL CHAIN TYPE (60) - PRODUCT FEEDING

F1218

SPROCKET (7T) conveyor rake

4шт.

F4035

SUPPORT - front, conveyor rake

2шт.

1/4" x 2-1/2" carr. bolt w/hex. nut and lockwasher

6шт.

F4036

SUPPORT - rear, conveyor rake

2шт.

F7731

ANGLE - conveyor rake, R.H.

1шт.

F7750

ANGLE - conveyor rake, L.H.

1шт.

F7801

ANGLE - end, hinged boot, L.H.

1шт.

3/8" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

3/8" x 1" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

F7802

ANGLE - end, hinged boot, R.H.

1шт.

F7811

LOCK STRAP - tightener

2шт.

3/8" x 3" N.C. hex. bolt w/hex. nut

2шт.

F7812

BRACKET - tightener

2шт.

3/8" x 7/8" N.F. hex. bolt w/hex. nut and lockwasher

4шт.

F8955

BOOT - conveyor rake

1шт.

1/4" x 5/8" carr. bolt w/hex. nut and lockwasher

2шт.

F8958

TIE ROD - across body, threaded both ends

1шт.

F8959

SHAFT - front, conveyor rake

1шт.

F8960

COVER - rear conveyor rake shaft

1шт.

F8961

SHAFT - rear conveyor rake

1шт.

F9245

SHIELD - conveyor rake, front

2шт.

F9246

SHIELD - conveyor rake, rear

2шт.

F9253

BOOT - seal

1шт.

3/16" x 3/8" #2156 semi-tubular rivets

7шт.

F9616

WEAR STRIP - conveyor rake angle

2шт.

F9617

WEAR STRIP - front, L.H. (F4035)

1шт.

F9618

WEAR STRIP - rear, L.H. (F4036)

1шт.

1/4" x 1-3/4" N.C. flat hd. mach. screw w/nut, lockwasher, plain washer

3шт.

F10000

LINK - coupler, R.H.

2шт.

F10001

LINK - coupler, L.H.

2шт.

F10049

WEAR STRIP - front, R.H. (F4035)

1шт.

1/4" x 1-3/4 N.C. flat hd. mach. screw w/nut, lockwasher, plain washer

3шт.

F10050

WEAR STRIP - rear, R.H. (F4036)

1шт.

F40034

KEY

("A" Woodruff) for F1218 sprocket

4шт.

F77189

FLOOR - front conveyor rake (perforated) extra - see F77398

1шт.

F77398

FLOOR - front conveyor rake (regular) see F77189

1шт.

1/4" x 1/2" carr. bolt w/hex. nut and lockwasher

3шт.

1/4" x 5/8" carr. bolt w/hex. nut and lockwasher

2шт.

F77402

FLOOR - rear conveyor rake

1шт.

1/4" x 5/8" N.C. flat hd. mach. screw

12шт.

F77404

DOOR - boot

1шт.

1/4" x 1/2" carr. bolt w/PT2735S, lockwasher and plain washer

4шт.

F77405

RAKE - conveyor (includes 174-#62H steel links, 2-F10000 coupler links, 2-F10001 coupler links and 17-F77922 slat)

1шт.

F77922

SLAT - conveyor rake (includes slat and 1-0436FH1 attach link 1-0437FH1 attach. link and 2-3/8" x 3/4" W.B. hd. rivet) see F78467

17шт.

F77979

FLOOR - conveyor, access section (regular) see F78823

1шт.

1/4" x 1/2" N.C. hex. bolt w/hex. nut and lockwasher

6шт.

F78467

PACKAGE OF 1/2 LB RIVETS - 3/8" x 3/4" W.B. hd.

1шт.

F78823

FLOOR - conveyor, access section (perforated) see F77979

1шт.

0799CB

FLANGE - for 3074CSA bearing

8шт.

5/16" x 3/4" carr. bolt w/hex. nut and lockwasher

12шт.

03785CS

COLLAR - for 3074CSA bearing

4шт.

3074CSA

BALL BEARING

(Fafnir #RA100PP w/03785CS collar) front and rear conveyor rake shafts

4шт.

0436FH1

LINK - attaching, R.H. for F77922 slat

1шт.

0437FH1

LINK - attaching, L.H. for F77922 slat

1шт.

CT2546S

X

NUT - elastic stop (ESNA #29-E-080) for F8958 tie rod

2шт.

P2735S

X

WING NUT - for 1/4" x 1/2" bolt of F77404 door

4шт.

F1220

SPROCKET (15T ext. pitch) conveyor rake drive (when stocks are exhausted use F1297)

1шт.

1/4" - 28 thrd. Lincoln fitting #5010, conveyor rake drive

1шт.

F5422

SHIELD - dust, rear shaft, conveyor rake drive

2шт.

F7870

CHAIN - drives conveyor rake, strawwalker and tailings auger (use 2-B12517 chain, 2-B12520 chain, 1-B12521, conn. link, 1-B12522 offset link and 1-B12523 roller link #CA2050D) see F10449

1шт.

F10449

CHAIN - extension, for F7870 (use 2-B12520 chain, 1-B12521 conn. link, 1-B12522 offset link and 3-B12523 roller link #CA2050 roller chain) for use with F6078 idler, conveyor rake drive

1шт.

F40034

KEY

("A" Woodruff) for 2CS plate, conveyor rake drive

1шт.

T16665

RING - clutch (replaces 0115) CS when present stocks are exhausted, conveyor rake drive

2шт.

02985A

WASHER (1-9/16" O.D. x 25/32" I.D. #12 ga.) jump clutch spring, outer, conveyor rake drive

1шт.

03885A

WASHER (1-1/2" O.D. x 29/32" I.D. #12 ga.) jump clutch spring, inner,conveyor rake drive

1шт.

04198A

SPRING - for dust shield, conveyor rake drive

2шт.

01090CH

SPRING - jump clutch, conveyor rake drive

1шт.

2CS

PLATE - clutch, conveyor rake drive

1шт.

0122GR

WASHER - for inside F5422 dust shield, conveyor rake drive

2шт.
