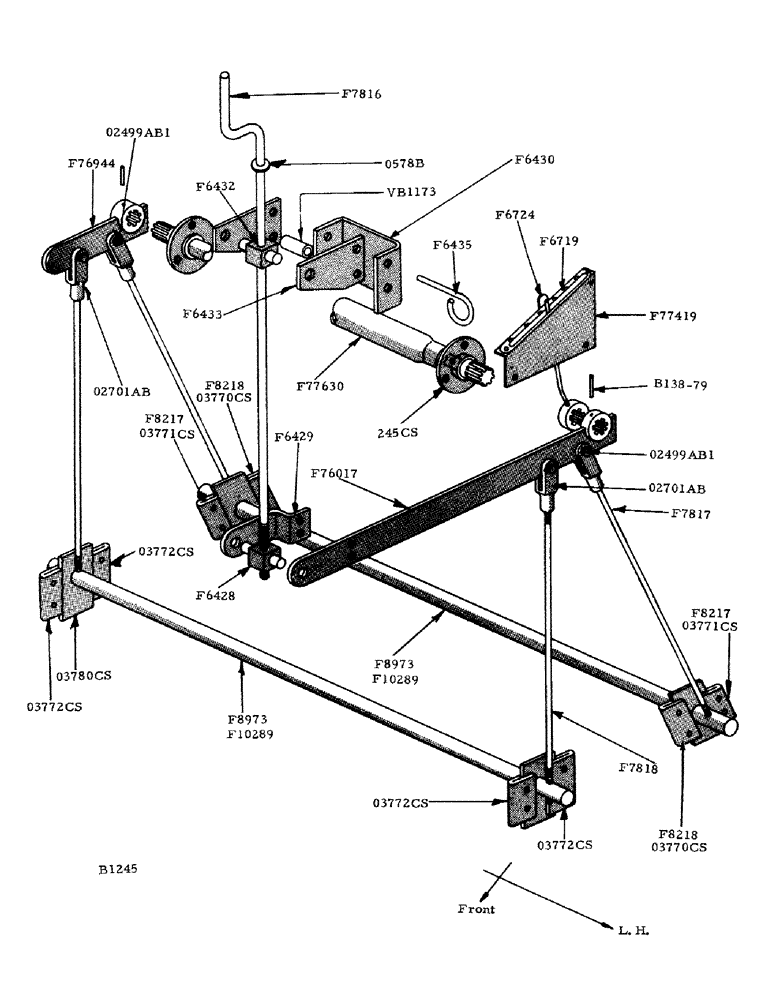

Запчасти Case IH 800 (058) - CONCAVE ADJUSTING LEVER AND LINKAGE (60) - PRODUCT FEEDING

F6428

BLOCK - pivot, lower

1шт.

F6429

BRACKET - concave adjustment

1шт.

3/8" x 1" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

F6430

BRACKET - support, concave adjusting

1шт.

5/16" x 1" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

F6432

BLOCK - pivot, upper, concave adjustment

1шт.

1/4" x 1" cotter pin

1шт.

F6433

PLATE - concave adjustment

2шт.

3/8" x 2-1/2" N.F. hex. bolt w/010594AB nut

1шт.

F6435

PIN - release

1шт.

F6719

GAUGE - concave clearance

1шт.

1/4" x 1/2" N.C. rd. hd. mach. screw w/hex. nut and lockwasher

2шт.

F6724

INDICATOR - concave adjusting

1шт.

1/4" N.C. hex. nut and lockwasher

1шт.

F7816

CRANK - concave adjusting

1шт.

F7817

ROD (24-1/2") rear concave adjusting

2шт.

1/2" N.F. hex. nut

2шт.

3/8" N.F. hex. nut

4шт.

1/8" x 3/4" cotter pin

2шт.

F7818

ROD (24-1/4") front concave adjusting

2шт.

1/2" N.F. hex. nut

2шт.

3/8" N.F. hex. nut

4шт.

F8217

GUIDE - shield, rear concave shaft, rear L.H. and front R.H. (Rub bar cylinder) see 03771CS

2шт.

F8218

GUIDE - shield, rear concave shaft, front L.H. and rear R.H. (rub bar cylinder) see 03770CS

2шт.

F8973

SHAFT - concave, front and rear (before no. 8179101) see F10289)

2шт.

F10289

SHAFT - concave, front and rear (standard on machines after no. 8179101)

2шт.

F76017

ARM - L.H., concave adjusting

1шт.

F76944

ARM - R.H., concave adjusting

1шт.

F77419

BRACKET - indicator support

1шт.

1/4" x 3/4" N.C. rd. hd. mach. screw w/hex. nut and lockwasher

1шт.

5/16" x 3/4" N.C. rd. hd. mach. screw w/hex. nut and lockwasher

1шт.

F77630

SHAFT - pivot, concave adjusting

1шт.

02499AB1

PIN - clevis, concave adjusting

4шт.

1/8" x 3/4" cotter

4шт.

02701AB

YOKE - concave adjusting rods

4шт.

010594AB

NUT (ESNA #29E-064) for F6433 plate

1шт.

0578B

WASHER (1-1/4" O.D. 21/32" L.D.) for F7816 crank, above F6432 block

1шт.

245CS

BEARING - pivot shaft, concave adjusting

2шт.

1/8" str. Lincoln fitting #5000

2шт.

3/8" x 1" N.F. hex. bolt w/hex. nut and lockwasher

6шт.

03770CS

SHIELD - guide, rear concave shaft, front L.H. and rear R.H. (spike tooth cylinder) see F8218

2шт.

7/16" x 1-1/2" N.C. sq. hd. oval point set screw w/hex. jam nut

2шт.

03771CS

SHIELD - guide, rear concave shaft, rear L.H. and front R.H. (spike tooth cylinder) see F8217

2шт.

7/16" x 1-1/2" N.C. sq. hd. oval point set screw w/hex. jam nut

2шт.

03772CS

GUIDE - shield, front concave shaft, R.H. and L.H. (see F8217 and F8218)

4шт.

03780CS

SHIELD - concave slot

4шт.

B138-79

ROLL PIN (1/4" x 1-1/2") concave adjusting arms

2шт.

VB1173

SPACER (3/8" O.D. x 1-1/4" long)

1шт.

T19471

PLOW BOLT

BOLT (3/8" x 1-1/4" #3 plow w/hex. nut) guide shield 03772CS

1шт.

Z1627

BOLT (3/8" x 1" #3 plow w/hex, nut) 7 for 037772CS, 4 for F8217, 4 for F8218

15шт.

3/8" lockwasher

15шт.
