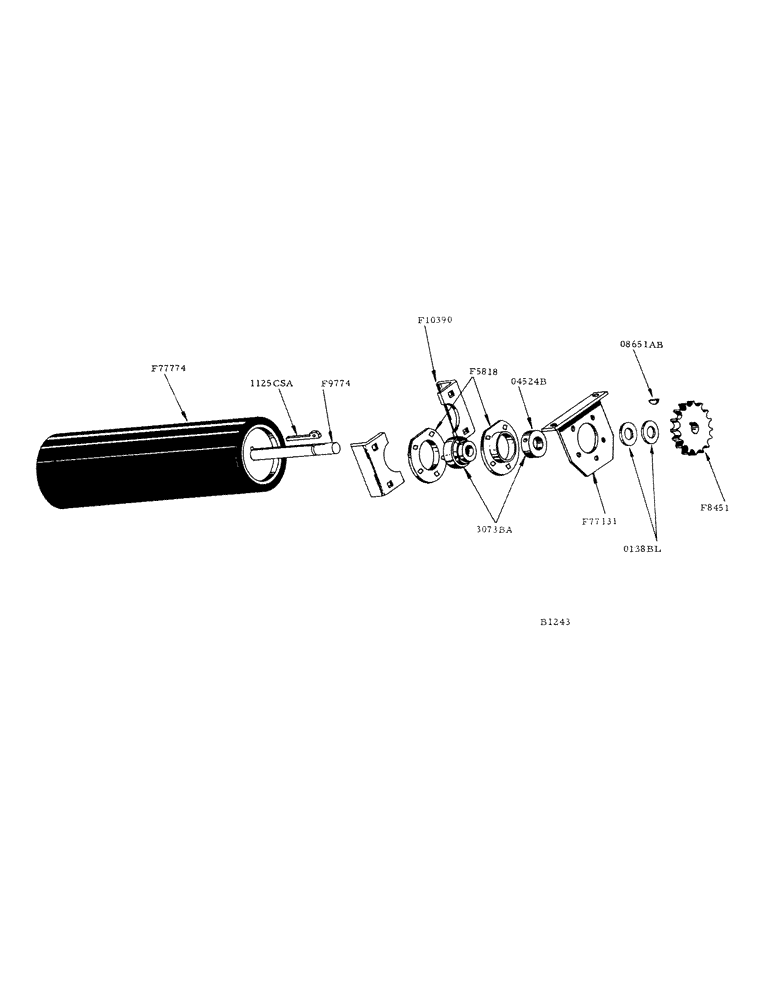

Запчасти Case IH 800 (056) - UPPER ROLLER (60) - PRODUCT FEEDING

F5818

FLANGETTE - bearing, upper roller shaft

4шт.

3/8" x 1" carr. bolt w/hex. nut and lockwasher

10шт.

F8451

SPROCKET (13T) UPPER ROLLER DRIVE, driven

1шт.

1/4" x 2-1/2" cotter pin

1шт.

F8456

CHAIN - upper roller drive (use 1-B-2478 #60 roller chain) see chain page

1шт.

F9774

SHAFT - upper roller

1шт.

F10390

GUIDE - for 3073BA bearing

4шт.

F77131

BRACKET - spring

2шт.

F77774

ROLLER - upper, rubber coated

1шт.

08651AB

KEY ("C" Woodruff) F8451 sprocket to F8443 shaft

1шт.

04524B

COLLAR - for 3073BA bearing

2шт.

3073BA

BEARING (Fafnir #G1106KLLB w/04524B) upper shaft

2шт.

0138BL

WASHER (1-13/32" I.D. x 2" O.D. #12 ga.) for roller shaft

2шт.

1125CSA

KEY - gib, roller to upper shaft

2шт.
