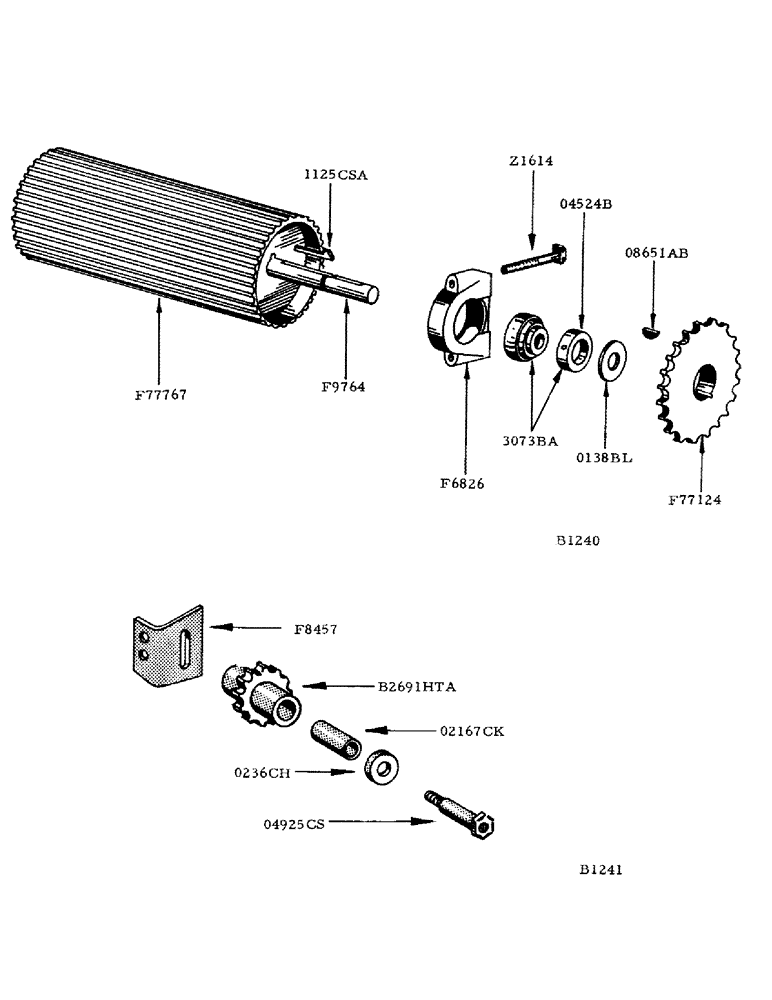

Запчасти Case IH 800 (054) - LOWER ROLLER (60) - PRODUCT FEEDING

B12510

CHAIN LINK

LINK - offset, #60 roller chain

1шт.

F6826

HOUSING (Fafnir #LAK 1-3/8") bearing, for 3073BA

2шт.

F8458

X

CHAIN - extension, lower roller drive (Flax attach.) use 1-B12479 chain, 1-B12480 chain and 2-B12510 offset link #60 roller chain

1шт.

F9764

SHAFT - lower roller

1шт.

1/4" x 2" cotter pin

1шт.

F77124

SPROCKET (32T) lower roller drive, driven

1шт.

1/4" x 2-1/2" cotter pin

1шт.

F77767

ROLLER - lower, grooved

1шт.

08651AB

KEY ("C" Woodruff) F77124 sprocket to F8427 shaft

1шт.

04524B

COLLAR - for 3073BA bearing

2шт.

3073BA

BEARING (Fafnir #G1106KLLB w/04524B collar) lower shaft

2шт.

0138BL

WASHER (1-13/32" I.D. x 2" O.D. #12 ga.) for roller shaft

3шт.

1125CSA

KEY - gib, roller to lower shaft

2шт.

Z1614

BOLT (1/2" x 1-1/2" #3 plow w/hex. nut) F6826 housing 1/2" lockwasher

4шт.

F8457

BRACKET - tightener, lower roll drive chain

1шт.

3/8" x 1-1/4" N.F. hex. bolt w/hex. nut and lockwasher, tightener, lower roller drive

2шт.

0236CH

WASHER (1-1/32" I.D. x 1-7/8" O.D. #16 ga.) for tightener stud, lower roller drive

1шт.

02167CK

BEARING (Torrington #BL-1628-OH) sprocket B2691HTA, tightener, lower roller drive

1шт.

04925CS

STUD - for B-2691HTA tightener sprocket, lower roller drive

1шт.

5/8" N.F. hex. nut and lockwasher, tightener, lower roller drive

2шт.

1/8" str. Lincoln fitting #5000, tightener, lower roller drive

1шт.

A879HT

SPROCKET (use B2691HTA), tightener, lower roller drive

1шт.

B2691HTA

SPROCKET (14T) tightener, with 02167CK bearing, lower roller drive

1шт.
