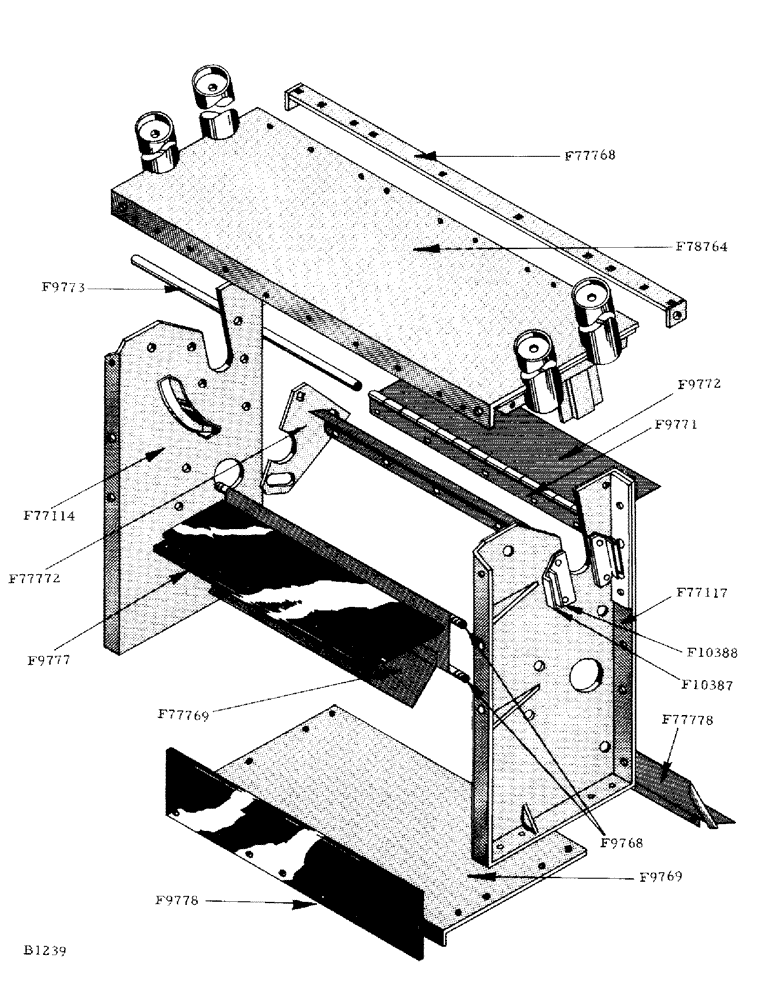

Запчасти Case IH 800 (052) - ROLLER HOUSING (60) - PRODUCT FEEDING

F9768

ROD - for fixed feed plate

2шт.

3/8" N.F. hex. nut and lockwasher

4шт.

F9769

FLOOR - roller housing

1шт.

3/8" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

8шт.

F9771

STRIP - hinge, feed plate

1шт.

1/4" x 3/4" carr. bolt w/hex. nut and lockwasher

7шт.

F9772

FEED PLATE - hinged

1шт.

F9773

ROD - for hinged feed plate

1шт.

F9777

SEAL - feed plate, front (bolts to F9769 floor)

1шт.

F9778

SEAL - feed plate, front (bolts under feeder floor)

1шт.

F10387

BRACKET - guide, outer

4шт.

F10388

BRACKET - guide, inner

4шт.

5/16" x 11/16" ctsk. hd. rivet

8шт.

F77114

FRAME - roller housing, R.H. (includes 2-F10387 and 2-F10388)

1шт.

1/2" x 1-1/4" N.F. hex. bolt w/hex. nut and lockwasher

3шт.

5/8" x 1-1/4" hex. bolt w/hex. nut and lockwasher

1шт.

F77117

FRAME - roller housing, L.H. (includes 2-F10387 and 2-F10388)

1шт.

3/8" x 1-1/4" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

5/8" x 1-1/4" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

F77768

ANGLE - frame, top cross, rear

1шт.

F77769

FEED PLATE - fixed (front)

1шт.

F77772

STRIPPER

1шт.

3/8" x 3/4" carr. bolt w/hex. nut and lockwasher

2шт.

3/8" x 1" N.F. hex. bolt w/hex. nut, lockwasher and plain washer

2шт.

F77778

DOOR - access

1шт.

F78674

TOP DECK - (includes top rails and spring chambers)

1шт.

1/4" x 5/8" N.C. hex. bolt and lockwasher

9шт.

3/8" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

F77134

SPROCKET (28T) upper roller drive (R.H. end of upper feed rake shaft), special parts for flax attachment

1шт.

1/4" x 2-1/2" cotter pin, special parts for flax attachment

1шт.

08651AB

KEY ("C" Woodruff) F77134 sprocket to upper feed rake shaft, special parts for flax attachment

1шт.

02812TS

SPACER - for F77134 sprocket, special parts for flax attachment

1шт.
