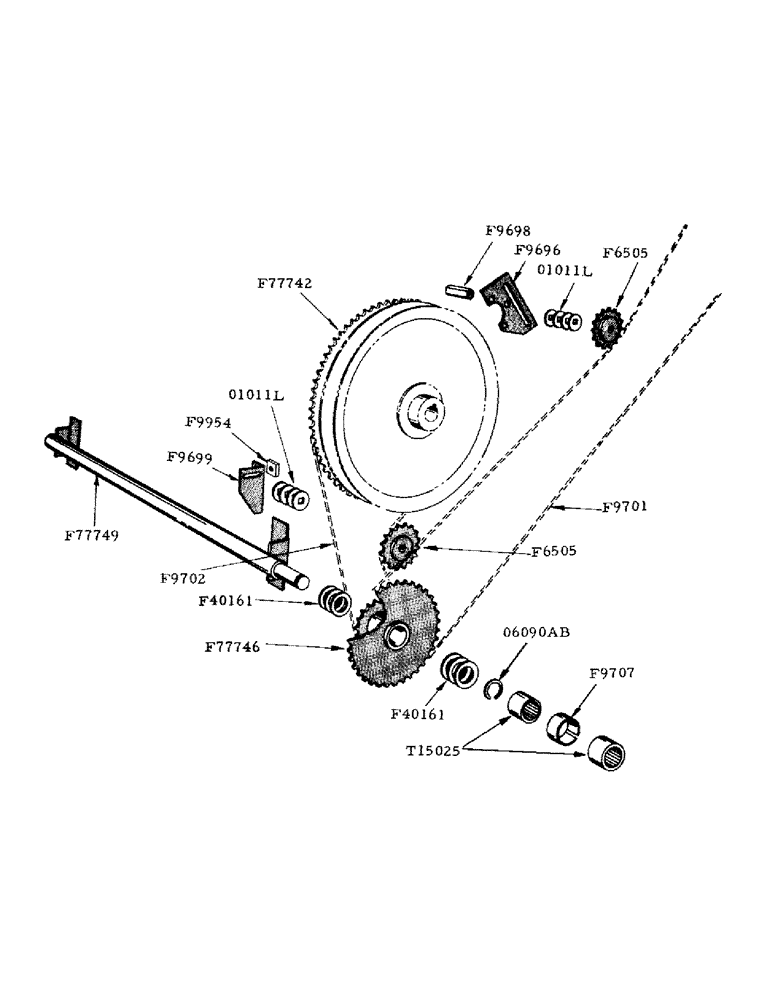

Запчасти Case IH 800 (050) - HEADER SLOW SPEED ATTACHMENT (60) - PRODUCT FEEDING

F6505

IDLER (15T) jackshaft and feeder rake drive

1шт.

5/8" x 2-1/4" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

5/8" plain washer

2шт.

F9696

BRACKET - idler, for F9701 chain, Serial Range: (beater-jackshaft)

1шт.

3/8" x 3/4" N.C. flat hd. mach. screw

3шт.

F9698

SUPPORT - idler bracket (spacer - w/tap hole for 3/8" mach. screw)

3шт.

F9699

BRACKET - idler, for F9702 chain (jackshaft to feeder rake shaft drive)

1шт.

1/2" x 1-1/4" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

1/2" x 1-3/4" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

F9701

X

CHAIN - jackshaft drive - slow hdr. speed att. (use 3-B12478 chain, 2-B12509 conn. link, 3-B12510 offset link and 2-B12511 roller link #60 roller chain) see chain page

1шт.

F9702

CHAIN - upper feed rake shaft drive - slow hdr. speed att. (use 1-B12478 chain, 2-B12479 chain, 1-B12480 chain and 1-B12510 offset link #60 roller chain) see chain page

1шт.

F9707

SPACER (1-1/2" O.D. x 3/4" long) for F77746 sprocket

1шт.

F9954

SPACER (1-1/4" sq.) for F9699 bracket

1шт.

F40161

WASHER (2-3/16" O.D. x 1-9/32" I.D #16 ga.) both sides of F77746 sprocket on shaft of F77749

6шт.

F50642

WASHER (1-1/2" O.D. x 1-1/4" I.D. #12 ga.) spacer on beater shaft for either electric clutch or slip clutch (not shown)

1шт.

F77742

SHEAVE AND DBL. SPROCKET (10" O.D.-34T-65T) use in place of F77093

1шт.

F77746

SPROCKET (17T and 33T) idler (includes 2-T15025 bearings and 1-F9707 spacer)

1шт.

F77749

JACKSHAFT - slow header speed

1шт.

1/8" str. Lincoln fitting #5000

1шт.

1/2" x 1-1/4" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

1/2" x 1-1/2" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

T15025

NEEDLE BEARING,Needle, 31.75mm ID x 38.11mm OD x 19.05mm W

BEARING (Torrington #B-2012) for F77746 sprocket

2шт.

06090AB

SNAP RING - for F7746 sprocket

1шт.

01011L

WASHER - between F6505 idler and bracket

8шт.
