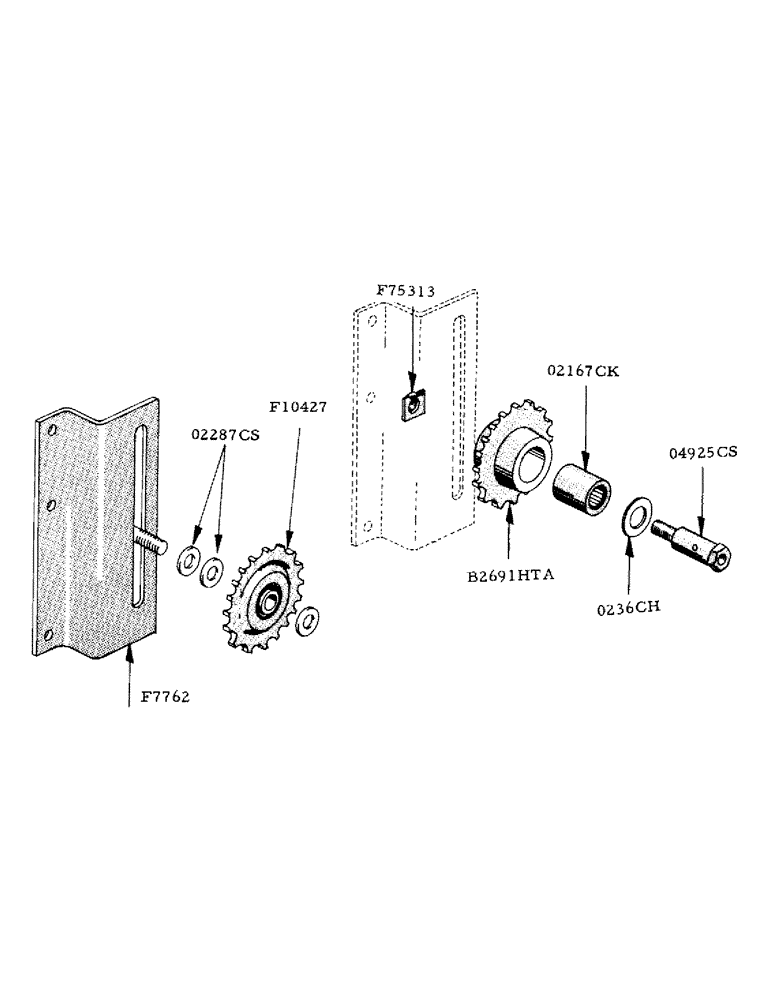

Запчасти Case IH 800 (049) - FEEDER RAKE DRIVE TIGHTENER (60) - PRODUCT FEEDING

F7762

BRACKET - tightener - feeder rake drive

1шт.

5/16" x 1" rd. hd. rivet

3шт.

F10427

SPROCKET ASSY.

SPROCKET (15T) tightener, feeder rake drive (before no. 8179101) see B2691HTA

1шт.

5/8" x 2" carr. bolt w/hex. nut and lockwasher

1шт.

F75313

LOCKNUT - for idler stud 04925CS

1шт.

0236CH

WASHER (1-1/32" I.D. x 1-7/8" O.D. #16 ga.) spacer

1шт.

02167CK

BEARING (Torrington #BL-1628-OH) for B2691HTA sprocket

1шт.

02287CS

WASHER (1-5/16" O.D. x 21/32" sq. hole) idler stud

2шт.

04925CS

STUD - for B2691HTA tightener sprocket (after no. 8179101)

1шт.

1/8" str. Lincoln fitting #5000

1шт.

B2691HTA

SPROCKET (14T) tightener w/02167CK bearing (after no. 8179101) see F10427

1шт.
