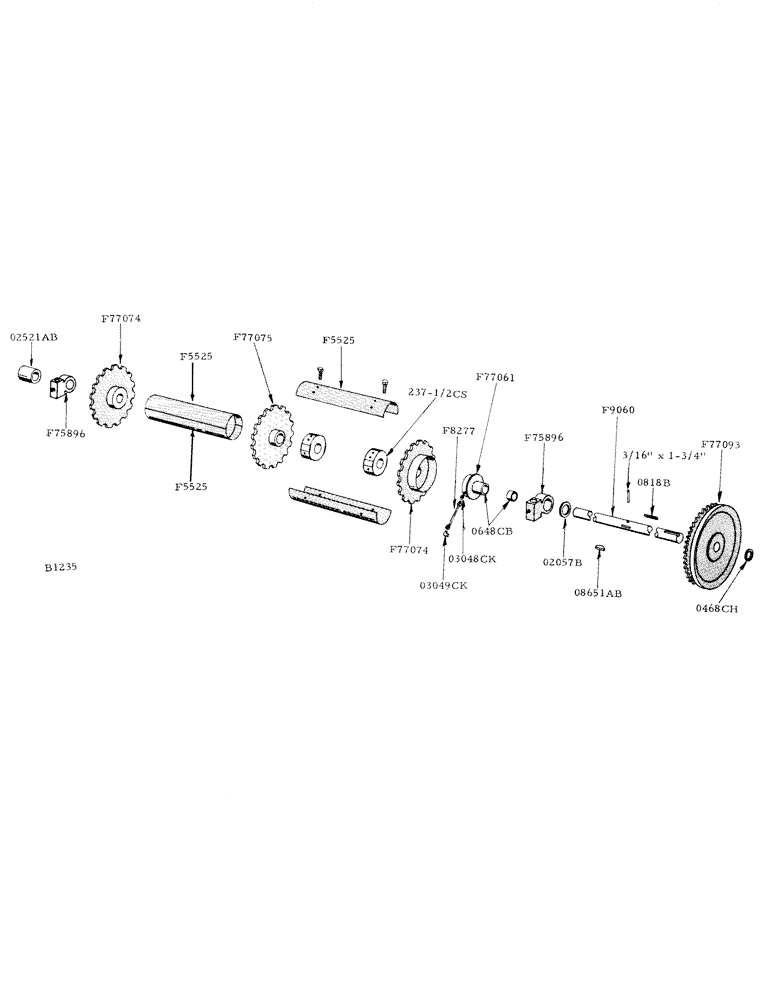

Запчасти Case IH 800 (048) - FEEDER RAKE UPPER SHAFT (60) - PRODUCT FEEDING

B12510

CHAIN LINK

LINK - offset, #60 roller chain

1шт.

F5525

SHIELD - anti-wrap

4шт.

#12 x 1 rd. hd. wood screw

16шт.

F6588

X

CHAIN - drives upper feeder rake shaft (use 2-B12478 chain, 1-B12479 chain, 1-B12480 chain, 1-B12481 chain and 1-B12510 offset link #60) see chain page

1шт.

F8277

LINE - grease

2шт.

F9060

SHAFT - upper feed rake

1шт.

F75896

BLOCK - header pivot

2шт.

1/8" str. Lincoln fitting #5000

2шт.

F77061

SCREW

HUB - pivot plate

2шт.

1/4" x 11/16" ctsk. hd. rivet

14шт.

F77074

SPROCKET (17T) upper feed rake shaft

2шт.

5/16" x 1-3/4" type A3 driv-lok pin

2шт.

F77075

SPROCKET (17T) upper feed rake shaft

1шт.

5/16" x 1-3/4" type A3 driv-lok pin

1шт.

F77093

SPROCKET AND SHEAVE (65T and 34T sprockets and 16" O.D. sheave) drives feed rake, auger drive jackshaft and sickle

1шт.

02521AB

SPACER - (1-1/4" pipe - 2-9/16" long)

1шт.

08651AB

KEY ("C" Woodruff) F77074 and F77075 sprockets

3шт.

0818B

KEY - (5/16" sq. x 3-3/4" long) for F77093 sprocket and sheave

1шт.

02057B

WASHER (2-1/2" O.D. x 1-5/16" I.D.)

6шт.

0648CB

BEARING (Torrington #BH-2020-OH) pivot plate hub

4шт.

0468CH

WASHER (2-3/16" O.D. x 1-9/32" I.D. #16 ga.) L.H. end

7шт.

03048CK

UNION - grease line

2шт.

03049CK

ELBOW - grease line

2шт.

1/8" str. Lincoln fitting #5000

2шт.

237-1/2CS

SUPPORT - shield, anti-wrap

4шт.
