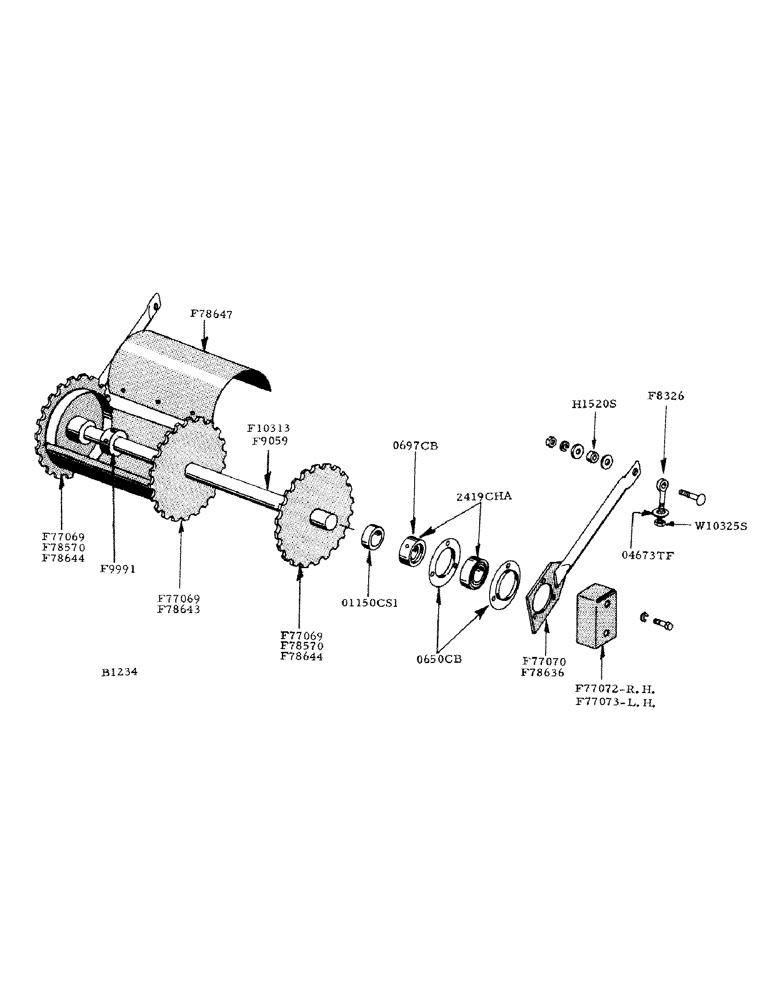

Запчасти Case IH 800 (047) - FEEDER RAKE LOWER SHAFT (60) - PRODUCT FEEDING

F8326

TIGHTENER - feed rake chain

2шт.

7/16" x 2" carr. bolt and lockwasher

2шт.

7/16" plain washer

6шт.

F9059

SHAFT - lower feed rake (use F10313 and 2-F9991 collars when these stocks are exhausted) before no. 8179751

1шт.

F9991

COLLAR - for outside sprockets

2шт.

F10313

SHAFT - lower feed rake (replaces F9059) (standard after no. 8179751)

1шт.

F77069

SCREW

SPROCKET (25T) center (standard) see F78643

1шт.

5/16" x 1-3/4" driv Lok pin type A3

1шт.

F77070

ARM - (when these stocks are exhausted, use F78636)

2шт.

F77072

SHIELD - stop, R.H.

1шт.

3/8" x 3/4" N.F. hex. bolt and lockwasher

2шт.

F77073

SCREW

SHIELD - stop, L.H.

1шт.

3/8" x 3/4" N.F. hex. bolt and lockwasher

2шт.

F78570

SPROCKET (25T) lower shaft, outside (standard after no. 8179751) see F78644

2шт.

F78636

ARM - support, feeder rake tightener (standard after no. 8179751) replaces F77070

2шт.

F78643

SPROCKET (25T) lower shaft, center (heavy duty w/ring) see F77069

1шт.

5/16" x 1-3/4" driv-loc pin type A3

1шт.

F78644

SPROCKET (25T) lower shaft, outside (heavy duty w/ring) see F78570

2шт.

F78647

SHIELD - ante-wrap (heavy duty headers)

4шт.

5/16" x 1/2" N.C. rd. hd. mach. screw w/lockwasher and plain washer

12шт.

0650CB

FLANGE - for 2419CHA bearing

4шт.

3/8" x 1" N.F. hex. bolt and lockwasher

6шт.

0697CB

COLLAR - for 2419CHA bearing

2шт.

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING (Fafnir #RA-103PPB2 w/0697CB collar) lower shaft

2шт.

01150CS1

SPACER - (1-1/2" O.D. x 1/2" long) used w/F77069 outside sprockets

2шт.

04673TF

WASHER - (7/16" standard sheared) for F8326

2шт.

H1520S

SPACER - for F8326 eye bolt tightener

2шт.

W10325S

X

NUT (7/16" elastic #29E-070) for F8326 tightener

2шт.
