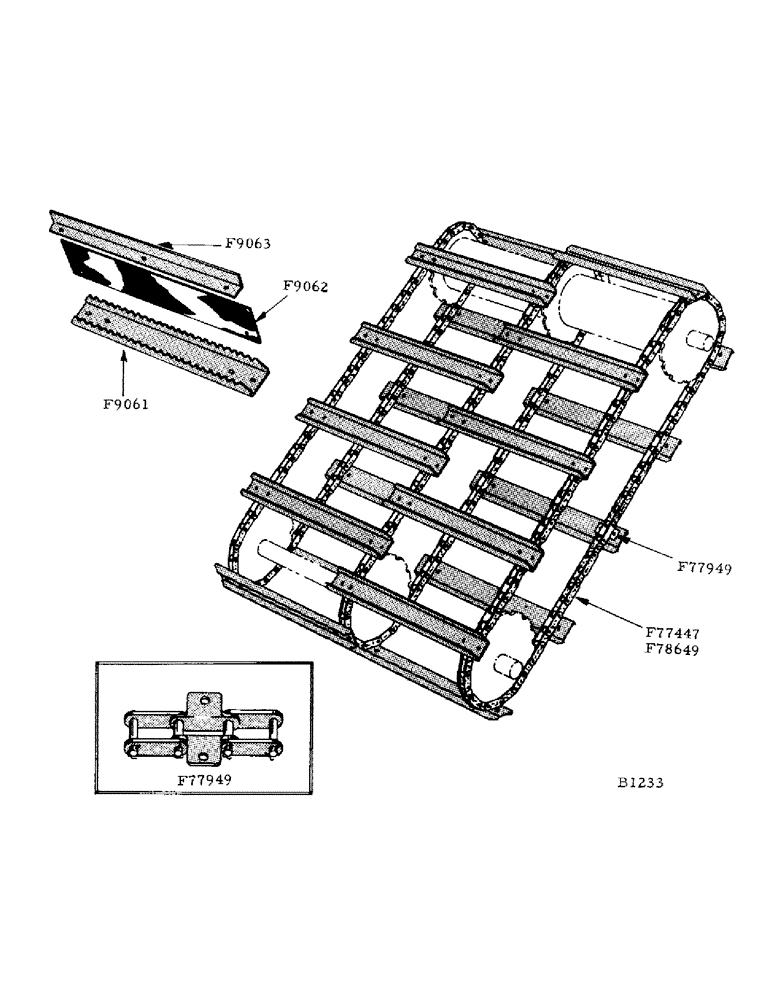

Запчасти Case IH 800 (046) - FEEDER RAKE, STANDARD, HEAVY DUTY (60) - PRODUCT FEEDING

B12533

Pkg. of 25 hardened cotters for CA2060D connecting and offset links

1шт.

F9061

SLAT - feed rake (stand. only)

20шт.

(H.D. only)

41шт.

3/16" x 9/16" rd. hd. rivet (stand. only)

80шт.

(H.D. only)

164шт.

F9062

STRIP - wiper (stand. only)

6шт.

(H.D. only)

8шт.

F9063

REINFORCEMENT

- wiper strip (stand. only)

6шт.

(H.D. only)

8шт.

1/4" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher (standard only)

18шт.

(H.D. only)

24шт.

F77447

RAKE - feeder (consists of 20-F9061 slats, 123 plain links, 3-B12528 conn. link, 3-B12529 offset link and 40-roller attach links #C2060) see note (stand. only)

1шт.

F77949

LINK - attachment, for slat (includes 2 conn. links)

1шт.

F78649

RAKE - feeder (heavy duty) consists of 41-F9061 slats, 3-B12528 connecting links, 3-B12529 offset links, 83 roller attachment links and 166 plain links of C2060 1-1/2 pitch roller chain (see note #) (H.D. only)

1шт.

F9062

STRIP - wiper (stand. only), feeder rake, rubber attachment

14шт.

(H.D. only), feeder rake, rubber wiper attachment

33шт.

F9063

REINFORCEMENT

- wiper strip (stand. only), feeder rake, rubber attachment

14шт.

(H.D. only), feeder rake, rubber wiper attachment

33шт.

1/4" x 3/4" N.F. hex bolt w. hex nut and lockwasher (stand. only), feeder rake, rubber wiper attachment

42шт.

(H.D. only), feeder rake, rubber wiper attachment

99шт.
