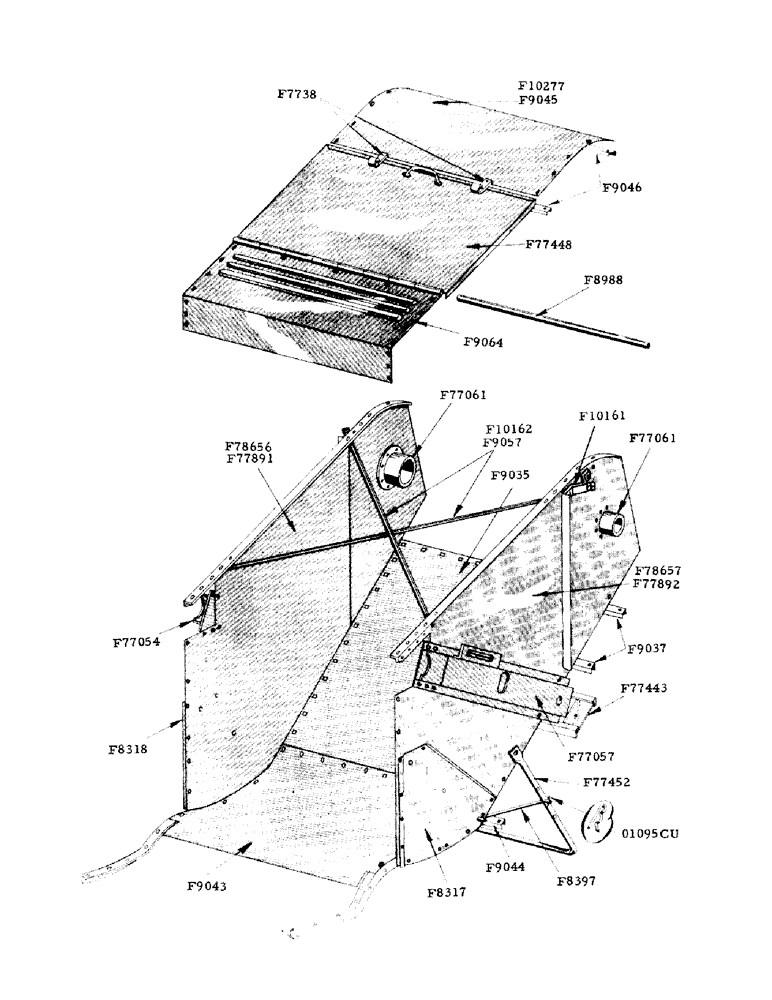

Запчасти Case IH 800 (044) - FEEDER SPOUT (60) - PRODUCT FEEDING
№
Артикул
Название
Примечание
Количество
F7738
CLIP - door
2шт.
3/16" x 3/8" W.B. hd. rivet
2шт.
F8317
GUSSET - lower L.H.
1шт.
5/16" x 1/2" rd. hd. rivet
1шт.
5/16" x 5/8" rd. hd. rivet
3шт.
F8318
GUSSET - lower, R.H.
1шт.
5/16" x 1/2" rd. hd. rivet
1шт.
5/16" x 5/8" rd. hd. rivet
3шт.
F8397
TIE ROD - header support stand
2шт.
F8988
ROD - hinge feeder door
1шт.
F9035
FLOOR - upper feeder spout
1шт.
1/4" x 1/2" carr. bolt w/hex. nut and lockwasher
7шт.
F9037
CHANNEL - floor, upper
2шт.
1/4" x 5/8" carr. bolt w/hex. nut, lockwasher and plain washer
6шт.
F9043
FLOOR - lower feeder spout
1шт.
1/4" x 1/2" carr. bolt w/hex. nut and lockwasher
7шт.
F9044
CHANNEL - floor, lower
1шт.
1/4" x 1/2" carr. bolt w/hex. nut and lockwasher
7шт.
F9045
TOP - upper feeder spout (before no. 8160601) use F10277 when these stocks are exhausted
1шт.
1/4" x 5/8" N.C. flat hd. mach. screw w/hex. nut, lockwasher and plain washer
6шт.
F9046
CHANNEL - top feeder spout
2шт.
1/4" x 5/8" N.C. rd. hd. mach. screw w/hex. nut and lockwasher
4шт.
F9057
BRACE - cross feeder spout (before no. 8160601) use F10162 when these stocks are exhausted
2шт.
F9064
SHEET - top feeder spout
1шт.
1/4" x 3/8" N.F. hex. bolt w/hex. nut and lockwasher
8шт.
F10161
BRACKET - for F10162 cross brace
2шт.
3/8" x 1" N.F. hex. bolt w/hex. nut, lockwasher and plain washer
4шт.
F10162
BRACE - cross feeder spout (after no. 8160601) will replace F9057 when these stocks are exhausted
2шт.
F10277
TOP - upper feeder spout (no. 8160601 and after) will replace F9045 when those stocks are exhausted
1шт.
1/4" x 5/8" N.C. flat hd. mach. screw w/hex. nut, lockwasher and plain washer
6шт.
F77054
CHANNEL - side rail, R.H.
1шт.
5/16" x 3/4" W.B. hd. rivet
2шт.
F77057
SCREW
CHANNEL - side rail, L.H.
1шт.
5/16" x 3/4" W.B. hd. rivet
2шт.
F77061
SCREW
HUB - pivot plate, includes 2-0648CB bearings
2шт.
1/4" x 11/16" ctsk. hd. rivet
14шт.
F77443
SUPPORT - header lift
1шт.
F77448
DOOR - feeder spout
1шт.
#479 Stanley door handle
1шт.
3/16" x 5/16" W.B. hd. rivet
2шт.
F77452
STAND - header support
1шт.
1/2" x 1-3/4" N.F. hex. bolt w/dbl hex. nut
2шт.
F77891
SIDE SHEET - R.H. feeder spout (includes F77054) before no. 8160601 (use F78656 when these stocks are exhausted)
1шт.
F77892
SIDE SHEET - L.H. feeder spout (includes F77057) before no. 8160601 (use F78657 when these stocks are exhausted)
1шт.
F78656
SIDE SHEET - R.H. feeder spout (includes F77054) after no. 8160601 (replaces F77891 when those stocks are exhausted)
1шт.
F78657
SIDE SHEET - L.H. feeder spout (includes F77057) after no. 8160601 (replaces F77892 when those stocks are exhausted)
1шт.
0648CB
BEARING (Torrington #BH-2020-OH) pivot plate hub
4шт.
01095CU
COTTER - hair pin, for tie rods
4шт.
Выбрано товаров: 48
