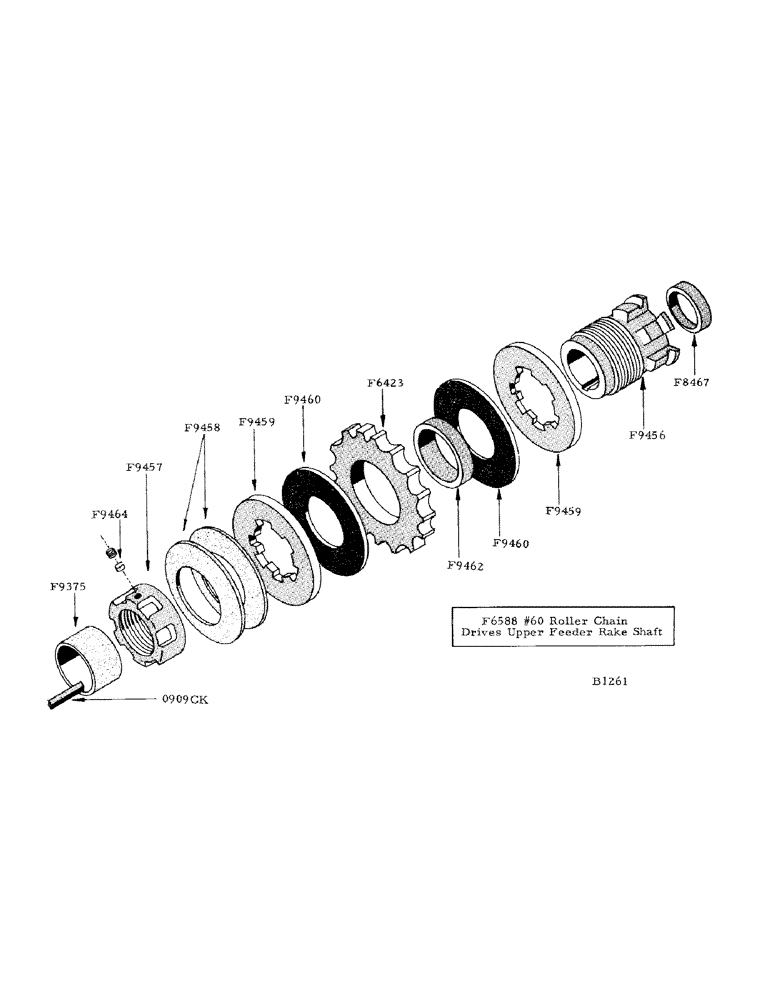

Запчасти Case IH 800 (078) - HEADER DRIVE SLIP CLUTCH, TORQUE LIMITER (58) - ATTACHMENTS/HEADERS

F6423

SPROCKET (27T) header drive (see F77142-electric clutch)

1шт.

F8467

SPACER (1-7/16" O.D. x 21/64") inside

1шт.

F9375

SPACER (1-1/4" pipe - 1-1/8" long) L.H. end of beater shaft

1шт.

F9456

HUB

1шт.

F9457

NUT - adjusting

1шт.

3/8" x 5/16" N.C. cup pt. set screw

1шт.

F9458

SPRING - belleville

2шт.

F9459

PLATE - driving

2шт.

F9460

FACING - clutch, for driving plate

2шт.

F9462

BUSHING (3" O.D. - bronze) for F6423 sprocket

1шт.

F9464

LOCK PLUG (brass) for F9457 adjusting nut

1шт.

F77612

LIMITER - torque, complete (slip clutch)

1шт.

1/4" x 3/4" N.C. cup pt. set screw w/hex. nut

1шт.

0909CK

KEY (5/16" x 5/16" x 1-5/8") torque limiter to beater shaft

1шт.
