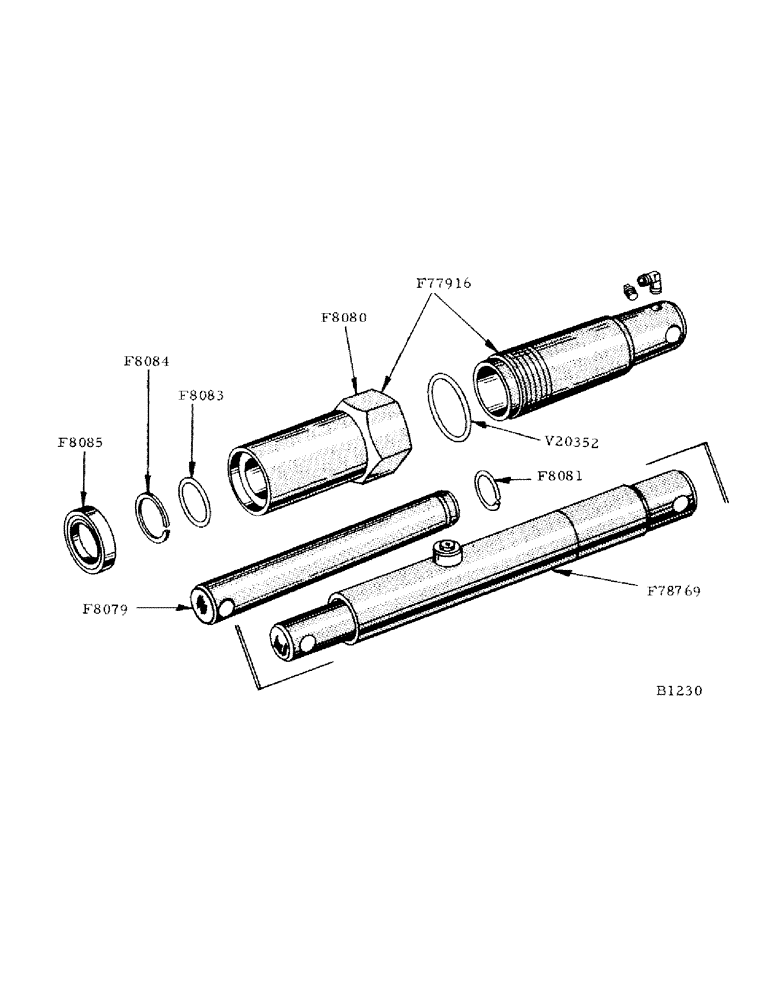

Запчасти Case IH 800 (043) - HEADER LIFT CYLINDER, BEFORE NUMBER 8179751 (58) - ATTACHMENTS/HEADERS

F8079

ROD - piston, cylinder

1шт.

F8080

HEAD

1шт.

F8081

RING - retaining (1-7/8" ext. closed)

1шт.

F8083

O-RING,0.21" Thk x 1.85" ID, -328, Cl 5, 75 Duro

"O" RING - (3/16" x 1-7/8" I.D.)

1шт.

F8084

WASHER

(3/16" x 2-3/8" O.D.) back up

1шт.

F8085

OIL SEAL (1-7/8" I.D. x 2-1/2" O.D.)

1шт.

F77035

CYLINDER - header lift, complete

2шт.

3/16" x 1-1/2" cotter pin

2шт.

1/4" 90 deg. street ell (Trabon #9113)

1шт.

1/4" sq. hd. pipe plug

2шт.

F77916

BARREL AND HEAD - cylinder

1шт.

05307CS

HOSE (47-1/4"long) hydraulic - see hydraulic system

1шт.

V20352

SCREW

"O" RING - (1/8" x 2-3/8" I.D.)

1шт.

F78769

CYLINDER - header lift, complete (will replace F77035 when those stocks are exhausted), after no. 8179751

2шт.
