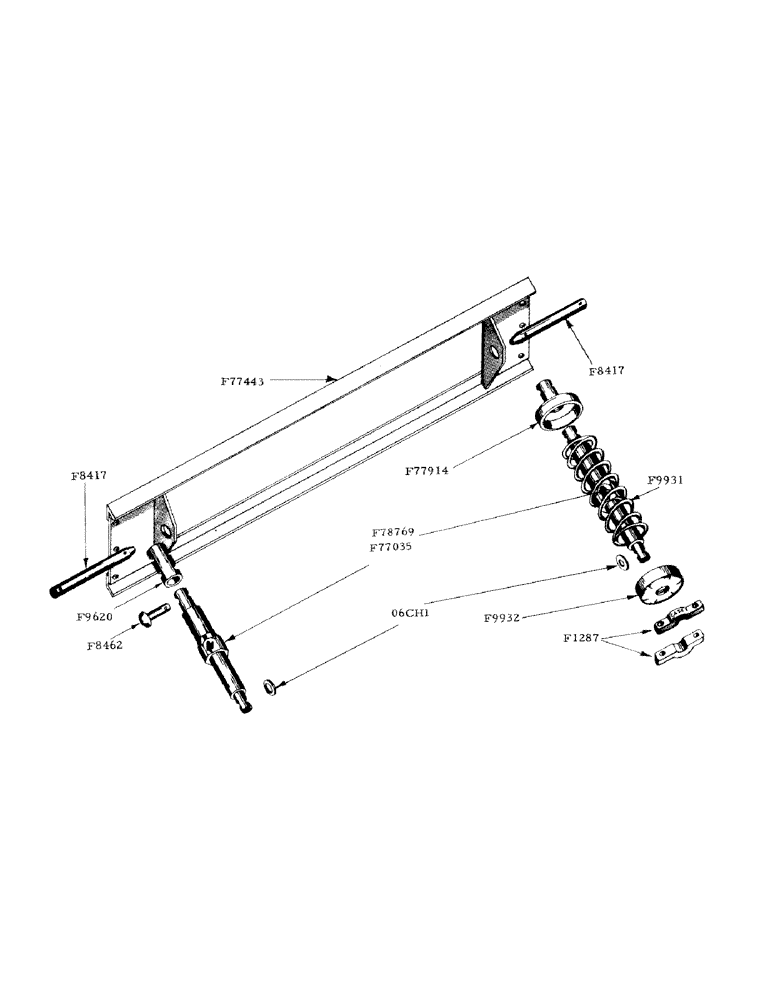

Запчасти Case IH 800 (042) - HEADER LIFT (58) - ATTACHMENTS/HEADERS

F8417

PIN - cylinder

2шт.

3/16" x 1-1/2" cotter pin

4шт.

F9989

PIN - cylinder pivot (for use with flax attachment support F77896)

1шт.

F77035

CYLINDER - header lift (standard before no. 8179751) see F78769

2шт.

F77443

SUPPORT - header lift (beneath feeder spout) standard - see F77986

1шт.

F77986

SUPPORT - header lift (bolts to cylinder posts) flax attachment - see F77443

1шт.

F78769

CYLINDER - header lift (standard after no. 8179751) see F77035

2шт.

06CH1

WASHER - (1-3/4" O.D. x 1-1/32" I.D. #10 ga.) for cylinder pin, Serial Range: welded-frame

2шт.

F8462

PIN - for F9620 extension (see header lift), attachment

2шт.

1/4" x 1-3/4" cotter pin, header lift, extension attachment

2шт.

F9620

LINK - extension, for transport attachment (4-1/4" long), header lift

2шт.

F1287

CLAMP, spring retainer, header flotation, attachment

4шт.

1/2" x 2-1/2" N.F. hex. bolt w/hex. nut and lockwasher, header flotation spring attachment

4шт.

F9931

SPRING - header flotation, attachment

2шт.

F9932

CUP - spring retainer, header flotation, attachment

2шт.

F77914

RETAINER - spring, header flotation, attachment

2шт.
