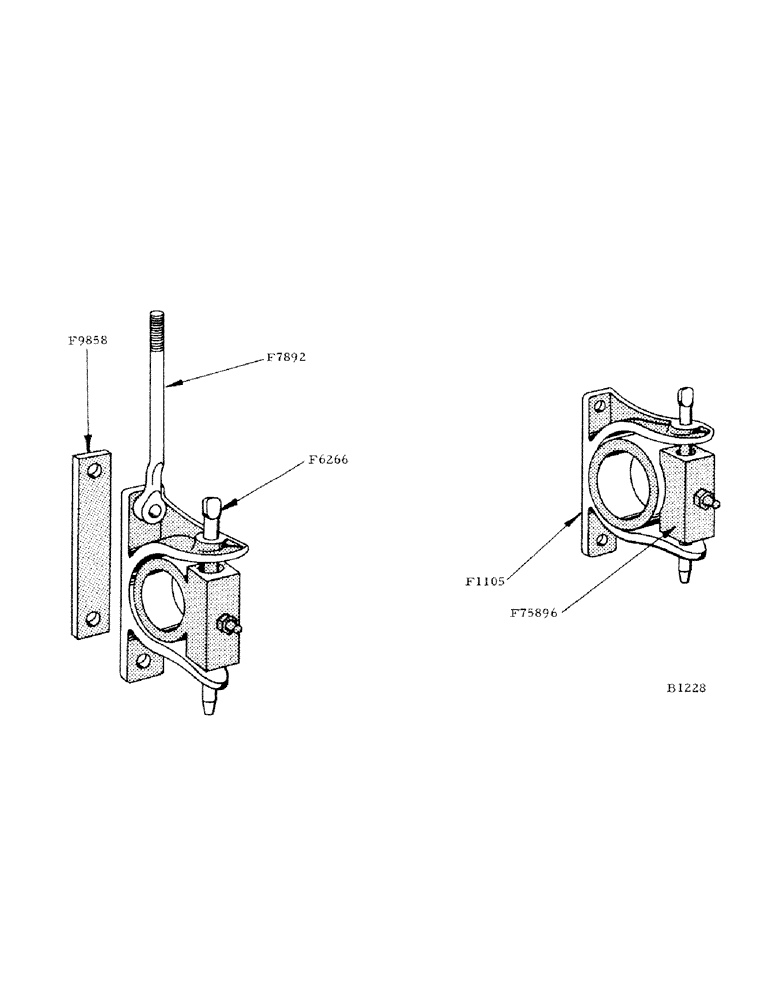

Запчасти Case IH 800 (041) - HEADER PIVOT BRACKETS (58) - ATTACHMENTS/HEADERS

F1105

BRACKET - header pivot

2шт.

5/8" x 1-1/2" N.F. hex. bolt w/hex. nut and lockwasher

3шт.

5/8" x 2" N.F. hex. bolt w/hex, nut and lockwasher

1шт.

F6266

PIN - locking

2шт.

F7892

EYE BOLT - header adjustment

1шт.

F9858

WASHER - strap

1шт.

F75896

BLOCK - header pivot bearing

2шт.

VC1419

X

HAIR PIN - cotter, for F6266 locking pin (not shown)

2шт.
