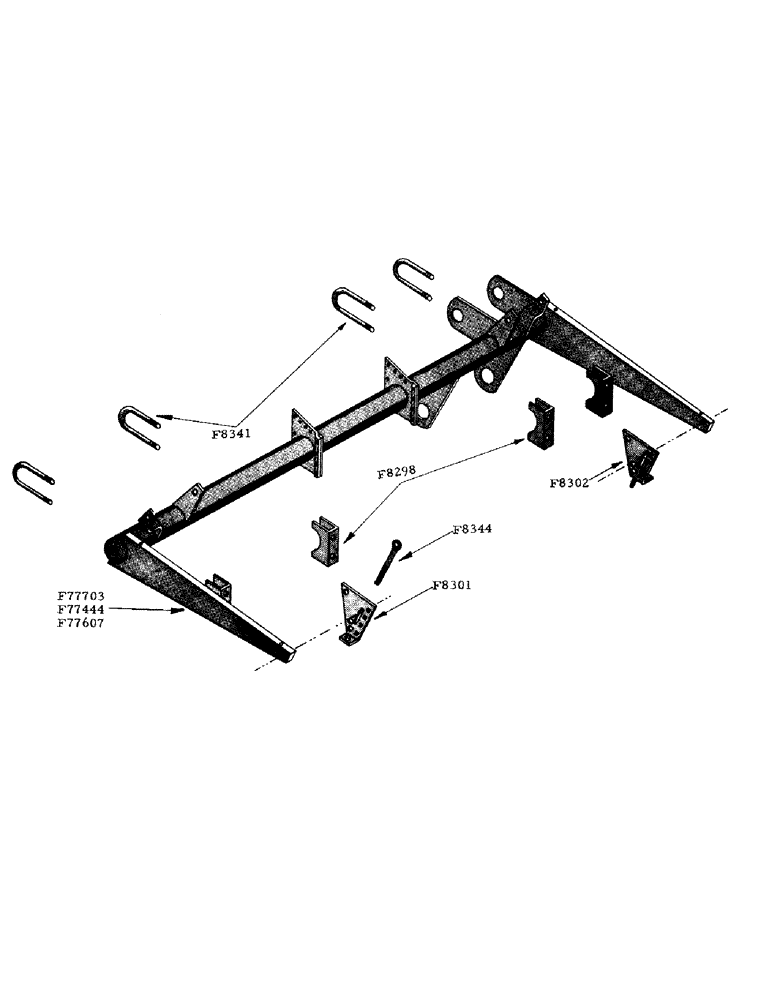

Запчасти Case IH 800 (040) - HEADER SUPPORT TORQUE TUBE (58) - ATTACHMENTS/HEADERS

F8298

SUPPORT - torque tube

4шт.

F8301

GUSSET - reel support, R.H.

1шт.

5/16" x 5/8" N.F. hex. bolt w/hex. nut and lockwasher

3шт.

F8302

GUSSET - reel support, L.H.

1шт.

5/16" x 5/8" N.F. hex. bolt w/hex. nut and lockwasher

3шт.

F8341

"U" BOLT - tube covers

2шт.

3/8" N.F. hex. nut and lockwasher

2шт.

F8344

EYE BOLT - torque tube arms

2шт.

3/8" x 2" N.C. hex. bolt w/hex. nut and lockwasher

2шт.

1/2" N.F. hex. nut

4шт.

F77444

TUBE - torque, header support (12 ft.)

1шт.

5/16" x 3/4" rd. hd. rivet

16шт.

F77607

TUBE - torque, header support (14 ft.)

1шт.

5/16" x 3/4" rd. hd. rivet

16шт.

F77703

TUBE - torque - header support (10 ft.)

1шт.

5/16" x 3/4" rd. hd. rivet

16шт.
