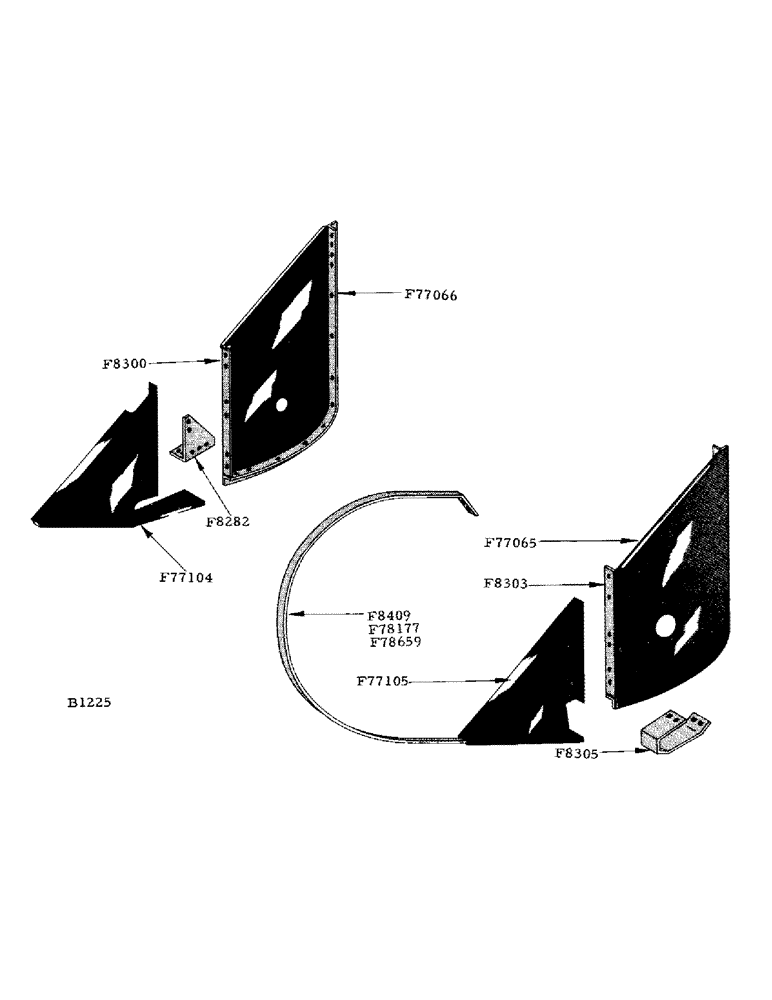

Запчасти Case IH 800 (038) - AUGER TROUGH RIGHT HAND HEAD (58) - ATTACHMENTS/HEADERS

F8282

GUSSET - auger trough, R.H. end

1шт.

5/16" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

5/16" x 1" N.F. hex. bolt w/hex. nut and lockwasher

3шт.

F8300

POST - divider, R.H.

1шт.

5/16" x 5/8" N.F. hex. bolt w/hex. nut and lockwasher

3шт.

F8409

LOOP (use F78177 when stocks are exhausted)

1шт.

F77066

HEAD - auger trough, R.H.

1шт.

F77104

DIVIDER - R.H.

1шт.

1/4" x 1/2" N.F. hex. bolt w/hex. nut, lockwasher and plain washer

4шт.

1/4" x 3/4" carr. bolt w/hex. nut and lockwasher

4шт.

F78177

LOOP - divider (replaces F8409) see F78659

1шт.

1/4" x 3/4" carr. bolt w/hex. nut and lockwasher

2шт.

1/4" x 1" carr. bolt w/hex. nut and lockwasher

2шт.

F78659

LOOP - divider (heavy duty header) see F78177

1шт.

F8303

POST - divider, L.H., head, auger trough

1шт.

5/16" x 5/8" N.F. hex. bolt w/hex. nut and lockwasher, auger trough L.H. head

3шт.

F8305

BRACE - divider shoe, auger trough L.H. head

1шт.

1/4" x 3/4" carr. bolt w/hex. nut and lockwasher, auger trough L.H. head

3шт.

F8409

LOOP - (when stocks are exhausted use F78177), auger trough L.H. head

1шт.

F9390

GUSSET - end sheet, L.H. (not shown), head, auger trough

1шт.

1/4" x 3/4" rd. hd. rivet, auger trough L.H. head

2шт.

F77065

SCREW

HEAD - auger trough, L.H.

1шт.

F77105

SCREW

DIVIDER - L.H., head, auger trough

1шт.

1/4" x 1/2" N.F. hex. bolt w/hex. nut, lockwasher and plain washer, auger trough L.H. head

4шт.

1/4" x 3/4" carr. bolt w/hex. nut and lockwasher, auger trough L.H. head

3шт.

F78177

LOOP - divider, auger trough L.H. head

1шт.

1/4" x 3/4" carr. bolt w/hex. nut and lockwasher, auger trough L.H. head

2шт.

1/4" x 1" carr. bolt w/hex. nut and lockwasher, auger trough L.H. head

2шт.

F78659

LOOP - divider (heavy duty header) see F78177, auger trough L.H. head

1шт.
