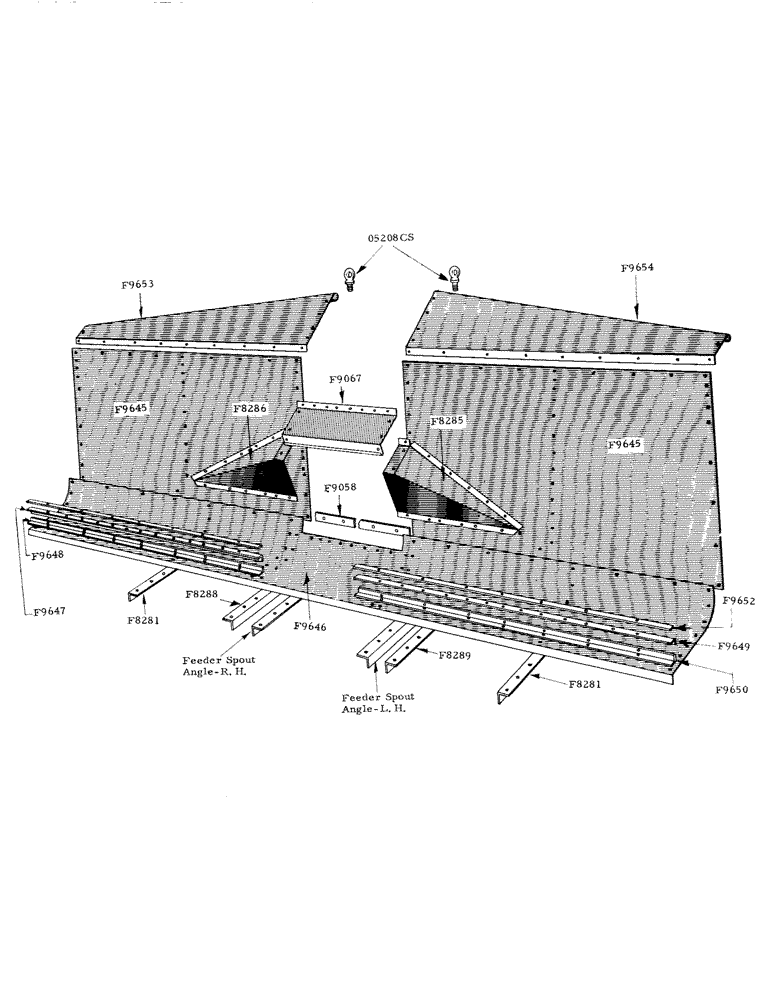

Запчасти Case IH 800 (034) - HEADER AUGER TROUGH 10 FOOT (58) - ATTACHMENTS/HEADERS

F8281

RAIL - hook, auger trough, R.H. and L.H.

2шт.

1/4" x 5/8" W.B. hd. rivet

6шт.

F8285

SHIELD - feed rake, R.H.

1шт.

1/4" x 3/8" N.F. hex. bolt w/hex. nut, lockwasher and plain washer

8шт.

F8286

SHIELD - feed rake, R.H.

1шт.

1/4" x 3/8" N.F. hex. bolt w/hex, nut, lockwasher and plain washer

8шт.

F8288

RAIN - hook, feeder spout, R.H.

1шт.

5/16" x 13/16" rd. hd. rivet

1шт.

5/16" x 3/4" rd. hd. rivet

3шт.

F8289

RAIL - hook, feeder spout, L.H.

1шт.

5/16" x 13/16" rd. hd. rivet

1шт.

5/16" x 3/4" rd. hd. rivet

3шт.

F9058

STRIP - filler, feeder spout floor

1шт.

1/4" x 5/8" rd. hd. rivet

9шт.

F9067

SHIELD - feed rake chain

1шт.

1/4" x 3/8" N.F. hex. bolt w/hex, nut and lockwasher

10шт.

1/4" x 5/8" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

F9645

SHEET - back, auger trough, R.H. and L.H.

2шт.

1/4" x 5/8" W.B. hd. rivet

14шт.

F9646

FLOOR - auger trough

1шт.

1/4" x 3/4" ctsk. hd. rivet

26шт.

F9647

ANGLE - stripper, upper R.H.

1шт.

F9648

ANGLE - stripper, lower R.H.

1шт.

1/4" x 5/8" rd. hd. rivet

5шт.

F9649

ANGLE - stripper, upper L.H.

1шт.

1/4" x 5/8" rd. hd. rivet

7шт.

F9650

ANGLE - stripper, lower L.H.

1шт.

1/4" x 5/8" rd. hd. rivet

5шт.

F9652

STRIPPER - adjustable, R.H. and L.H.

2шт.

1/4" x 5/8" carr. bolt w/hex. nut, lockwasher and plain washer

12шт.

F9653

COVER - torque tube, R.H.

1шт.

F9654

COVER - torque tube, L.H.

1шт.

05208CS

EYE BOLT - for auger trough rail

2шт.

1/2" N.C. hex. nut and lockwasher

2шт.
