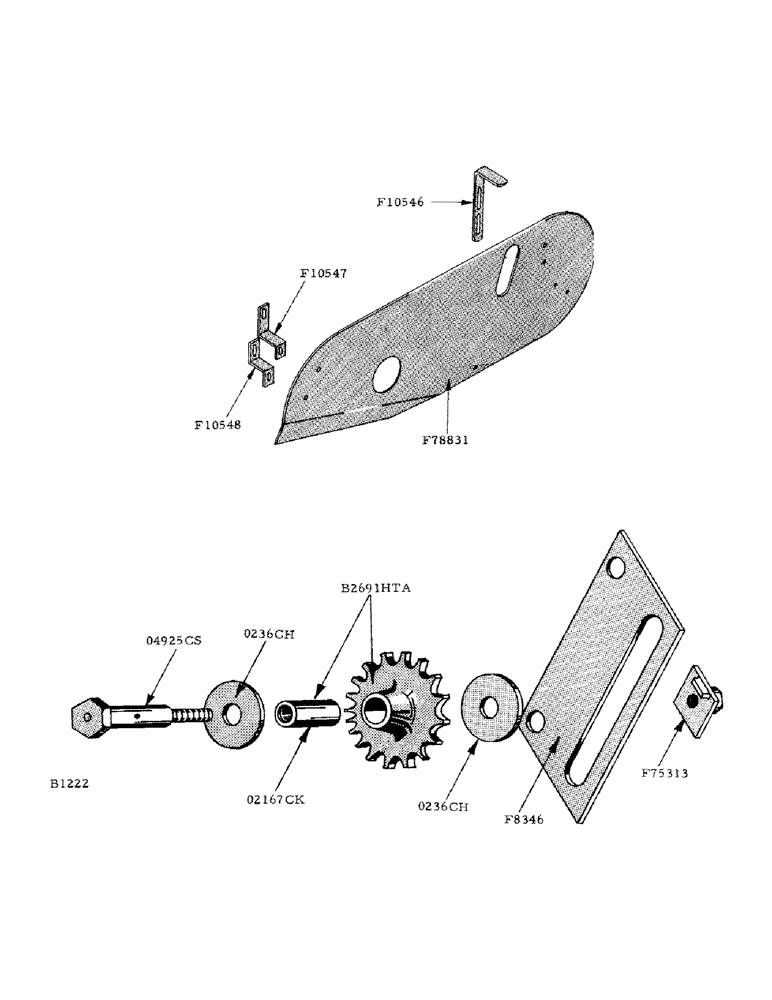

Запчасти Case IH 800 (033) - REEL AND AUGER GUARD ATTACHMENT (58) - ATTACHMENTS/HEADERS

F10546

STRAP - reel drive shield

1шт.

1/4" x 1/2" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

F10547

CLIP - auger shield

1шт.

1/4" x 1/2" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

F10548

CLIP - auger shield

2шт.

1/4" x 1/2" N.F. hex. bolt w/hex, nut and lockwasher

2шт.

F78831

SHIELD - auger through chain, L.H. end

1шт.

F8346

BRACKET - tightener (auger drive tightener only), and main header

1шт.

3/8" x 3/4" N.F. hex. bolt w/hex, nut and lockwasher, tightener, auger and main header drive

2шт.

F75313

LOCKNUT - for idler stud, tightener, auger and main header drive

2шт.

0236CH

WASHER (1-7/8" O.D. x 1-1/32" I.D. #16 ga.) spacer, tightener, auger and main header drive

4шт.

02167CK

BEARING (Torrington #BL-1628-OH) tightener sprocket, auger and main header drive

2шт.

04925CS

STUD - tightener sprocket, auger and main header drive

2шт.

1/8" str. Lincoln fitting #5000, tightener, auger and main header drive

2шт.

A879HT

SPROCKET - (Use B2691HTA), tightener, auger and main header drive

1шт.

B2691HTA

SPROCKET (14T) auger drive tightener (includes 1-02167CK), and main header

2шт.
