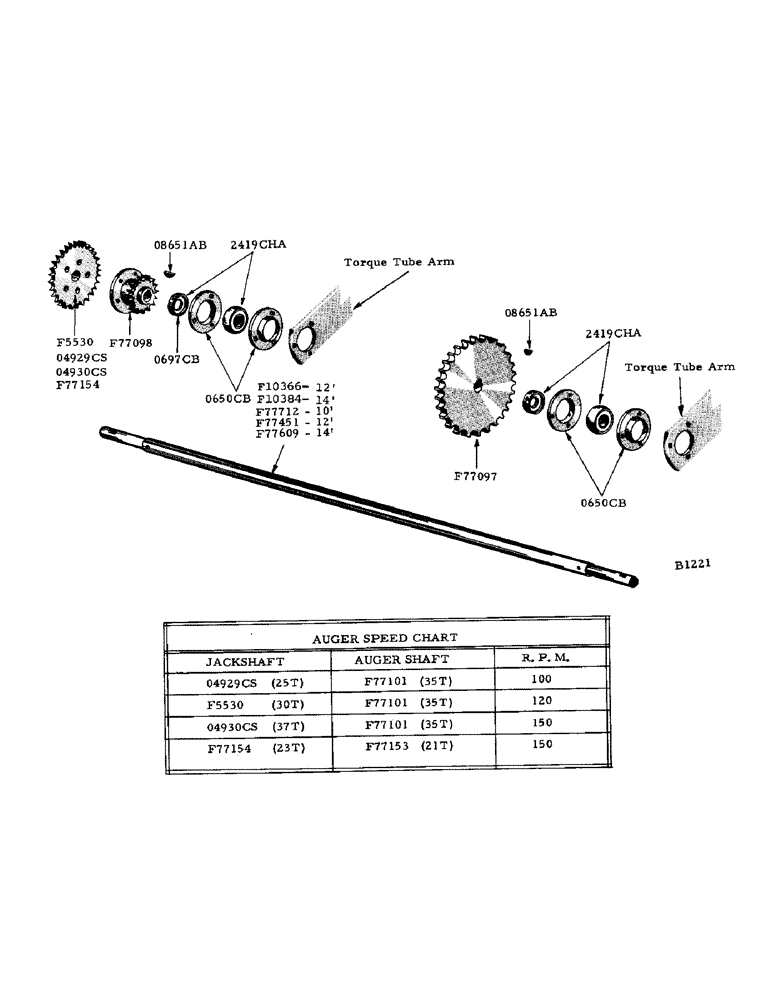

Запчасти Case IH 800 (032) - MAIN HEADER DRIVE JACKSHAFT (58) - ATTACHMENTS/HEADERS

F5530

SPROCKET (30T) auger drive (120 RPM)

1шт.

3/8" x 1-1/4" N.F. hex. bolt w/hex. nut and lockwasher

5шт.

F8392

CHAIN - main header drive (use 1-B12493 chain, 4-B12496 chain and 1-B12529 offset link #CA12060-D roller chain) see chain page

1шт.

F10366

JACKSHAFT - main header drive (12 ft. heavy duty) see F77451

1шт.

F10384

JACKSHAFT - main header drive (14 ft. heavy duty) see F77609

1шт.

F77097

SPROCKET (50T) drives main header jackshaft

1шт.

5/16" x 1-3/4" type A3 driv-lok pin

1шт.

F77098

SPROCKET (23T) drives reel drive jackshaft

1шт.

3/8" x 3/8" N.C. socket hd. cup pt set screw

1шт.

F77154

SPROCKET (23T) auger drive (Kaffir corn attach.)

1шт.

F77451

JACKSHAFT - main header drive (55-5/8") 12 ft. header (see F77609 and F77712)

1шт.

F77609

JACKSHAFT - main header drive (67-5/8") 14 ft. header (see F77451 and F77712)

1шт.

F77712

NUT

JACKSHAFT - main header drive (43-5/8" 10 ft. header (see F77609 and F77451)

1шт.

08651AB

KEY ("C" Woodruff) F77097 and F77098 sprockets to F77096 jackshaft

2шт.

0650CB

FLANGE - for 2419CHA bearing

4шт.

3/8" x 5/8" N.F. hex. bolt w/hex. nut and lockwasher

6шт.

0697CB

COLLAR - for 2419CHA bearing

2шт.

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING (Fafnir #RA-103PPB2 w/0697CB collar) jackshaft

2шт.

04929CS

SPROCKET (25T) auger drive (100 RPM)

1шт.

04930CS

SPROCKET (37T) auger drive (150 RPM)

1шт.
