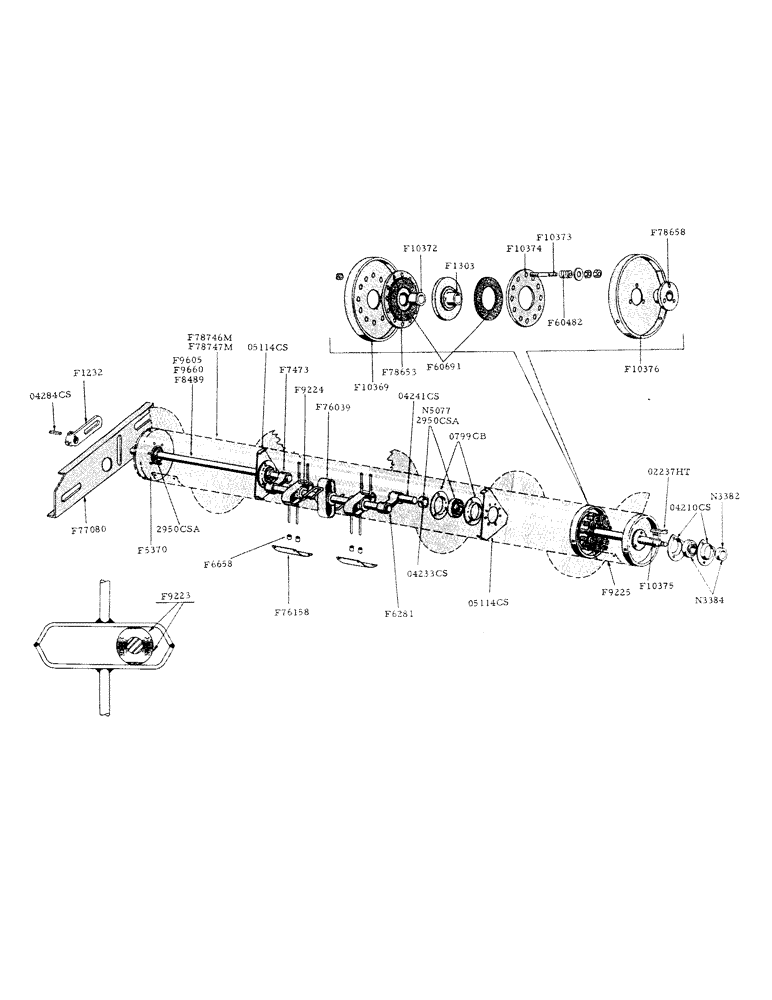

Запчасти Case IH 800 (030) - HEAVY DUTY TYPE HEADER AUGER (58) - ATTACHMENTS/HEADERS

F1232

FITTING

ARM - finger control

1шт.

1/2" x 1-1/4" carr. bolt w/nut, lockwasher and plain washer

1шт.

5/16" x 1/2" N.C. sq. hd. cup pt. set screw

1шт.

F5370

PLATE - auger tube support, R.H. end

1шт.

3/8" x 3/4" N.C. hex. bolt w/hex. nut and lockwasher

3шт.

F6281

SHAFT

- finger assembly

1шт.

F6658

BUSHING

(7/8" O.D.) finger assembly

12шт.

F7473

ARM

- crank, finger pivot

4шт.

5/16" x 2" N.C. hex. bolt w/hex. nut and lockwasher

4шт.

F8345

SHAFT - auger drive

1шт.

F8489

SHAFT - finger control (14 ft. header)

1шт.

F9223

BRACKET

- finger spool

12шт.

1/4" x 3/4" N.C. rd. hd. mach. screw w/hex. nut

12шт.

F9224

SPOOL

- retractable finger

3шт.

F9225

DOOR - inspection

2шт.

445406

SPRING NUT,Tinn, 1/4"-14

1шт.

For door above

1шт.

187-348

SELF-TAP SCREW,Slotted Pan Hd, 1/4" x 5/8"

1шт.

For door above

1шт.

#14 x 5/8" pan hd. tapping screw type A

8шт.

F9605

SHAFT - finger control (12 ft. header)

1шт.

F9660

SHAFT - finger control (10 ft. header)

1шт.

F86287

FINGER

ASSEMBLY - retractable type (Replaces F76039)

3шт.

F76158

LARGE PLATE

COVER - finger guide

6шт.

#14 x 5/8" pan hd. tapping screw type A

24шт.

F77080

SUPPORT - auger bearing, R.H.

1шт.

3/8" x 1" N.F. hex. bolt w/nut, lockwasher and plain washer

2шт.

F78746M

AUGER - header, 14 ft. (heavy duty w/slip clutch) see F78699M

1шт.

F78747M

AUGER - header, 12 FT. (heavy duty w/slip clutch) see F78696M

1шт.

N5077

FLANGED BEARING

BEARING (Aetna #AG1014) will replace 2950CSA

2шт.

5/16" x 3/4" carr. bolt w/hex. nut and lockwasher

6шт.

0799CB

FLANGE - for 2950CSA bearing

2шт.

5/16" x 3/4" carr. bolt w/hex. nut and lockwasher

6шт.

04233CS

COLLAR - for 2950CSA bearing

1шт.

04241CS

SHAFT - stub, pivot for finger assembly

1шт.

04284CS

KEY (3/16" x 1" sq.) for F1232 finger control arm

1шт.

05114CS

PLATE - auger tube support

2шт.

3/8" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

6шт.

2950CSA

HOUSING ASSY.

BEARING - (Fafnir #1014-KLLB w/04233Cs collar) see N5077

1шт.

F1303

PLATE - drive, header, auger, slip clutch

1шт.

"G" Woodruff key, header, auger drive, slip clutch

1шт.

F10369

PLATE - inner mounting, L.H., header, auger drive, slip clutch

1шт.

3/8" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher, header, auger drive, slip clutch

3шт.

F10372

BUSHING - for F78653 plate and F78658 hub, header, auger drive, slip clutch

2шт.

F10373

STUD, header, auger drive, slip clutch

12шт.

7/16" N.F. hex. nut, header, auger drive, slip clutch

12шт.

7/16" N.F. slotted nut, header, auger drive, slip clutch

12шт.

3/32" x 3/4" cotter pin, header, auger drive, slip clutch

12шт.

F10374

CLUTCH PLATE - outer, header, auger drive, slip

1шт.

F10375

SHAFT - drive, header, auger, slip clutch

1шт.

F10376

PLATE - outer mounting, header, auger drive, slip clutch

1шт.

3/8" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher, header, auger drive, slip clutch

3шт.

F60482

SPRING

- clutch plate, header, auger drive, slip

12шт.

F95518

KIT

FACING - clutch (Replaces F60691), header, auger drive, slip

2шт.

F78653

CLUTCH PLATE - inner, included 1-F10372 bushing, header, auger drive, slip

1шт.

F78658

HUB - outer, included F10372 bushing, header, auger drive, slip clutch

1шт.

3/8" x 1" N.F. hex. nut and lockwasher, header, auger drive, slip clutch

3шт.

N3382

BALL BEARING

BEARING (Fafnir #RA-103PPB w/N3384 collar) for F10375 auger shaft, L.H. end, header, drive, slip clutch

1шт.

N3384

COLLAR CLAMP

COLLAR - for N3382 bearing, header, auger drive, slip clutch

1шт.

04210CS

FLANGE - for N3382 bearing, header, auger drive, slip clutch

2шт.

02237HT

KEY - for F77101 sprocket, header, auger drive, slip clutch

1шт.
