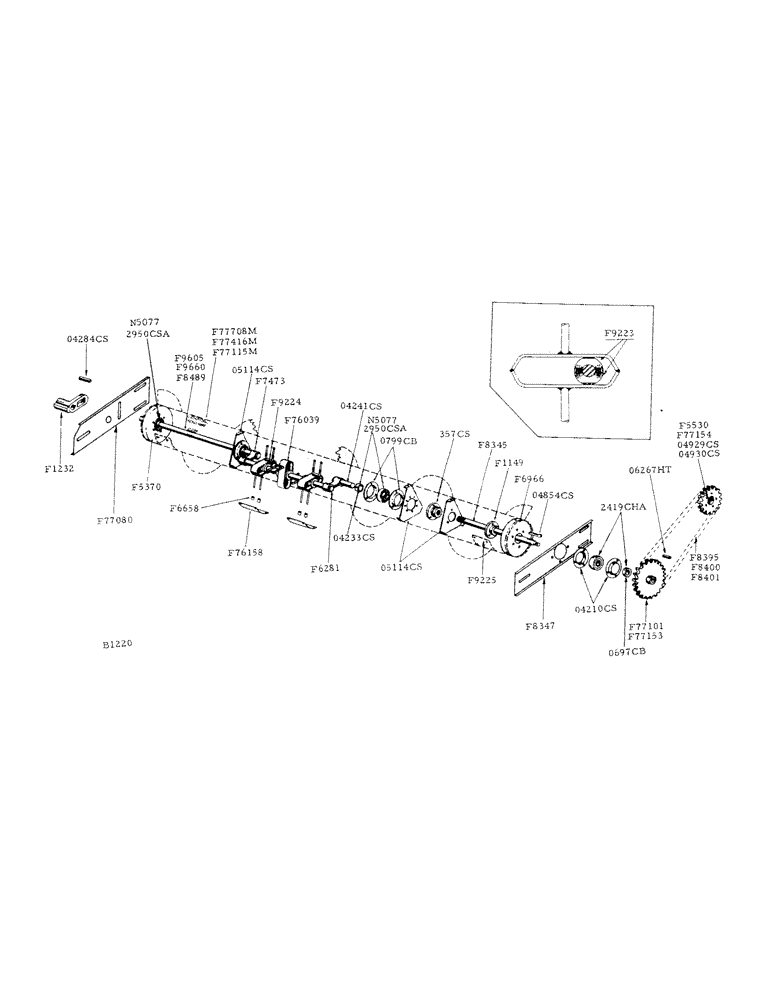

Запчасти Case IH 800 (028) - STANDARD TYPE HEADER AUGER, STANDARD ON GRAIN MACHINES (58) - ATTACHMENTS/HEADERS

F1149

COLLAR - auger drive, L.H. end of F8345 shaft

1шт.

F1232

FITTING

ARM - finger control

1шт.

1/2" x 1-1/4" carr. bolt w/nut, lockwasher, plain washer

1шт.

5/16" x 1/2" N.C. sq. hd. cup pt. set screw

1шт.

F5370

PLATE - auger tube support, R.H. end

1шт.

3/8" x 3/4" N.C. hex. bolt w/hex. nut and lockwasher

3шт.

F6281

SHAFT

- finger assembly

1шт.

F6658

BUSHING

(7/8" O.D.) finger

12шт.

F6966

PLATE - mounting, auger tube, L.H. end

1шт.

F7473

ARM

- crank, finger pivot

4шт.

5/16" x 2" N.C. hex. bolt w/hex. nut and lockwasher

4шт.

F8345

SHAFT - auger drive

1шт.

F8489

SHAFT - finger control (14 ft. header)

1шт.

F9223

BRACKET

- finger spool

12шт.

1/4" x 3/4" N.C. rd. hd. mach. screw w/hex. nut

12шт.

F9224

SPOOL

- retractable finger

3шт.

F9225

DOOR - inspection

2шт.

#14 x 5/8" pan hd. tapping screw type A

8шт.

F9605

SHAFT - finger control (12 ft. header)

1шт.

F9660

SHAFT - finger control (10 ft. header)

1шт.

F86287

FINGER

ASSEMBLY - retractable type (Replaces F76039)

3шт.

F76158

LARGE PLATE

COVER - finger guide

6шт.

#14 x 5/8" pan hd. tapping screw type A

24шт.

F77080

SUPPORT - auger bearing, R.H.

1шт.

3/8" x 1" N.F. hex. bolt w/nut, lockwasher and plain washer

2шт.

F77115M

AUGER - header, 14 ft. standard (less slip clutch) machinery item

1шт.

F77416M

AUGER - header, 12 ft. standard (less slip clutch) machinery item

1шт.

F77708M

AUGER - header, 10 ft. standard (less slip clutch) machinery item

1шт.

N5077

FLANGED BEARING

BEARING (Aetna #AG1014) will replace 2950SCA

2шт.

5/16" x 3/4" carr. bolt w/hex. nut and lockwasher

6шт.

0799CB

FLANGE - for 2950CSA bearing

2шт.

5/16" x 3/4" carr. bolt w/hex. nut and lockwasher

1шт.

357CS

DRIVE NUT - for F8345

1шт.

04233CS

COLLAR - for 2950CSA bearing

1шт.

04241CS

SHAFT - stub, pivot for finger assembly

1шт.

04284CS

KEY (3/16" x 1" sq.) for F1232 finger control arm

1шт.

04854CS

KEY - gib, for F1149 collar

1шт.

05114CS

PLATE - auger tube support

2шт.

3/8" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

6шт.

2950CSA

HOUSING ASSY.

BEARING - (Fafnir #1014 - KLLB w/04233Cs collar) see N5077

1шт.

B12481

CHAIN - auger drive extension (consists of 5-B12511 roller links and 1-B12509 conn. link #60 roller chain) see chain page (for 37T sprocket), header

1шт.

B12509

DRAG LINK

LINK - connecting, #60 roller chain, header, auger drive

1шт.

B12510

CHAIN LINK

LINK - offset, #60 roller chain, header, auger drive

1шт.

B12511

LINK

- roller, #60 roller chain, header, auger drive

1шт.

F5530

SPROCKET (30T) auger drive (120 RPM), header

1шт.

F8347

SUPPORT - auger, L.H. END, header, drive

1шт.

3/8" x 3/4" N.F. hex. bolt w/hex. nut, lockwasher and plain washer, header, auger drive

3шт.

F8395

X

CHAIN - auger drive (use 1-B12478 chain, 2-B12479 chain, 4-B12509 conn. link, 4-B12511 roller link and 1-B12510 offset link #60 roller chain) see chain page, header

1шт.

F8400

X

CHAIN - auger drive extension (use 1-B12509 conn. link, 1-B12510 offset link and 1-B12511 roller link #60), header

1шт.

F8401

CHAIN - auger drive extension (use 1-B12481), header

1шт.

F77101

SPROCKET (35T) auger drive, driven (see F77153), header

1шт.

F77153

SPROCKET (21T) auger drive, driven (Kaffir corn attach.) see F77101, header

1шт.

0697CB

COLLAR - for 2419CHA bearing, header, auger drive

1шт.

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING - (Fafnir #RA-103PPB2 w/0697CB ollar) auger shaft, L.H. end (see N3382), header, drive

1шт.

04210CS

FLANGE - for 2419CHA bearing, header, auger drive

2шт.

3/8" x 3/4" carr. bolt w/hex. nut and lockwasher, header, auger drive

3шт.

04929CS

SPROCKET (25T) auger drive (100 RPM) 3/8" x 1-1/4" N.F. hex. bolt w/hex. nut and lockwasher, header

5шт.

04930CS

SPROCKET (37T) auger drive (150 RPM), header

1шт.

3/8" x 1-1/4" N.F. hex. nut and lockwasher, header, auger drive

5шт.

06267HT

KEY - F77101 sprocket to F8345 shaft, header, auger drive

1шт.
