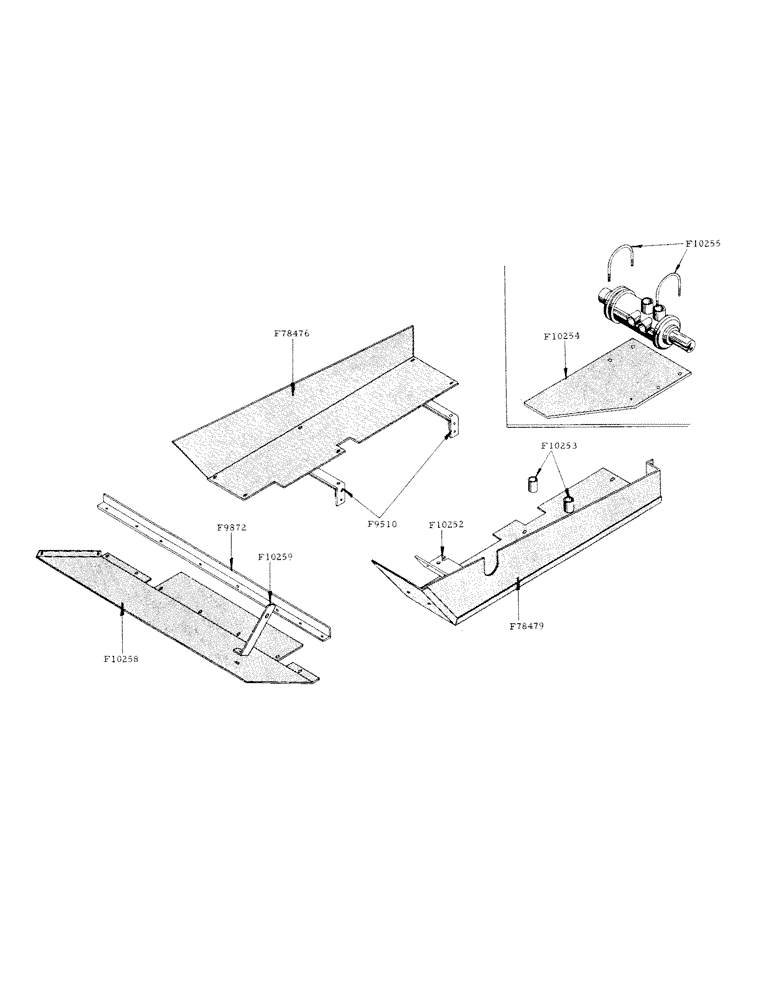

Запчасти Case IH 800 (026) - FAN TRASH SHIELD ATTACHMENT, F78501 (58) - ATTACHMENTS/HEADERS

F9510

ANGLE - support

2шт.

5/16" x 5/8" N.F. hex. bolt w/hex. nut and lockwasher

4шт.

F9872

ANGLE - cross

1шт.

F10252

BRACKET - front support, L.H.

1шт.

F10253

SPACER

2шт.

F10254

GUARD - hose, power steering valve

1шт.

F10255

"U" BOLT - for power steering valve

2шт.

1/4" hex. nut and lockwasher

4шт.

F10258

SHIELD - center section

1шт.

5/16" x 5/8" N.F. hex. bolt w/hex. nut and lockwasher

6шт.

F10259

TIE STRAP

1шт.

F78476

SHIELD - R.H.

1шт.

5/16" x 5/8" N.F. hex. bolt w/hex. nut and lockwasher

4шт.

5/16" x 2-1/4" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

F78479

SHIELD - L.H.

1шт.

5/16" x 5/8" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

5/16" x 2-1/4" N.F. hex. bolt w/hex. nut and lockwasher

1шт.
