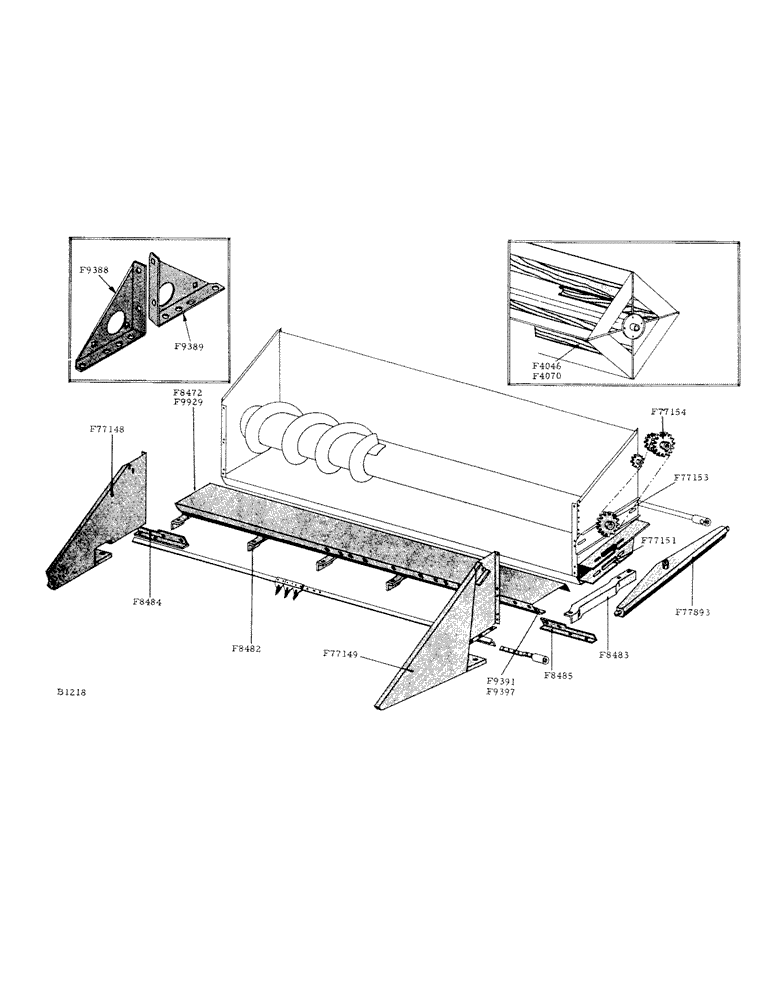

Запчасти Case IH 800 (024) - KAFFIR CORN ATTACHMENT (58) - ATTACHMENTS/HEADERS

F4046

BAT - reel (14 ft. header)

4шт.

1/4" x 1" carr. bolt w/hex. nut and lockwasher

32шт.

F4070

BAT - reel (12 ft. header)

4шт.

1/4" x 1" carr. bolt w/hex. nut and lockwasher

32шт.

F8354

SHIM (#14 ga.) sickle hold down clip

16шт.

Part of Reinforcement Kit P/N F78719

1шт.

F8355

SHIM (#20 ga.) sickle hold down clip

16шт.

Part of Reinforcement Kit P/N F78719

1шт.

F8356

CLIP

- sickle hold down

16шт.

Part of Reinforcement Kit P/N F78719

1шт.

F8372

BEARING

CUP (Tyson #11910 - SL) bearing, sway bar (not shown) see sickle drive

2шт.

F8472

EXTENSION - auger trough floor (14 ft. header)

1шт.

5/16" x 1" carr. bolt w/hex. nut and lockwasher

26шт.

1/4" x 1/2" N.F. hex. bolt w/hex. nut and lockwasher

6шт.

F8482

ANGLE - auger trough floor extension support, R.H.

5шт.

Part of Reinforcement Kit P/N F78719

1шт.

F8483

ANGLE - auger trough floor extension support, L.H.

1шт.

Part of Reinforcement Kit P/N F78719

1шт.

3/8" x 3/4" N.C. rd. hd. mach. bolt w/hex. nut and lockwasher

2шт.

3/8" x 1" N.C. carr. bolt w/hex. nut and lockwasher

2шт.

F8484

SUPPORT - divider point shoe, R.H.

1шт.

1/4" x 5/8" carr. bolt w/hex. nut and lockwasher

2шт.

F8485

SUPPORT - divider point shoe, L.H.

1шт.

1/4" x 5/8" carr. bolt w/hex. nut and lockwasher

2шт.

F9388

PLATE - reinforcement, R.H.

5шт.

Part of Reinforcement Kit P/N F78719

1шт.

5/16" x 3/4" carr. bolt w/hex. nut and lockwasher

4шт.

5/16" plain washer

8шт.

F9389

PLATE REINFORCEMENT, L.H.

5шт.

Part of Reinforcement Kit P/N F78719

1шт.

5/16" x 3/4" carr. bolt w/hex. nut and lockwasher

4шт.

5/16" plain washer

8шт.

F9391

REINFORCEMENT - cutter bar rail (14 ft. header)

1шт.

3/8" x 1" carr. bolt w/hex. nut and lockwasher

5шт.

3/8" x 3/4" carr. bolt w/hex. nut and lockwasher

10шт.

F9392

SHIM (#18 ga.) sickle hold down clip

16шт.

Part of Reinforcement Kit P/N F78719

1шт.

F9397

REINFORCEMENT - cutter bar rail (12 ft. header)

1шт.

3/8" x 3/4" carr. bolt w/hex. nut and lockwasher

10шт.

3/8" x 1" N.C. rd. hd. mach. bolt w/hex. nut and lockwasher

5шт.

F9929

EXTENSION - auger trough floor (12 ft. header)

1шт.

5/16" x 1" N.C. rd. hd. mach. bolt w/hex. nut and lockwasher

26шт.

1/4" x 1/2" N.F. hex. bolt w/hex. nut and lockwasher

6шт.

F77148

POINT - divider, R.H.

1шт.

1/4" x 1/2" N.F. hex. bolt w/hex. nut and lockwasher

3шт.

F77149

POINT - divider, L.H.

1шт.

1/4" x 1/2" N.F. hex. bolt w/hex. nut and lockwasher

3шт.

F77151

SUPPORT - sway bar

1шт.

5/26" x 3/4" carr. bolt w/hex. nut and lockwasher

1шт.

F77153

SPROCKET (21T) auger drive, driven

1шт.

F77154

SPROCKET (20T & 23T-Dbl.) reel and auger drive

1шт.

F77893

SWAY BAR - with 2-F8372 cups

1шт.

E3354S

SHIM (#26 ga.) sickle hold down clip

32шт.

Part of Reinforcement Kit P/N F78719

1шт.
