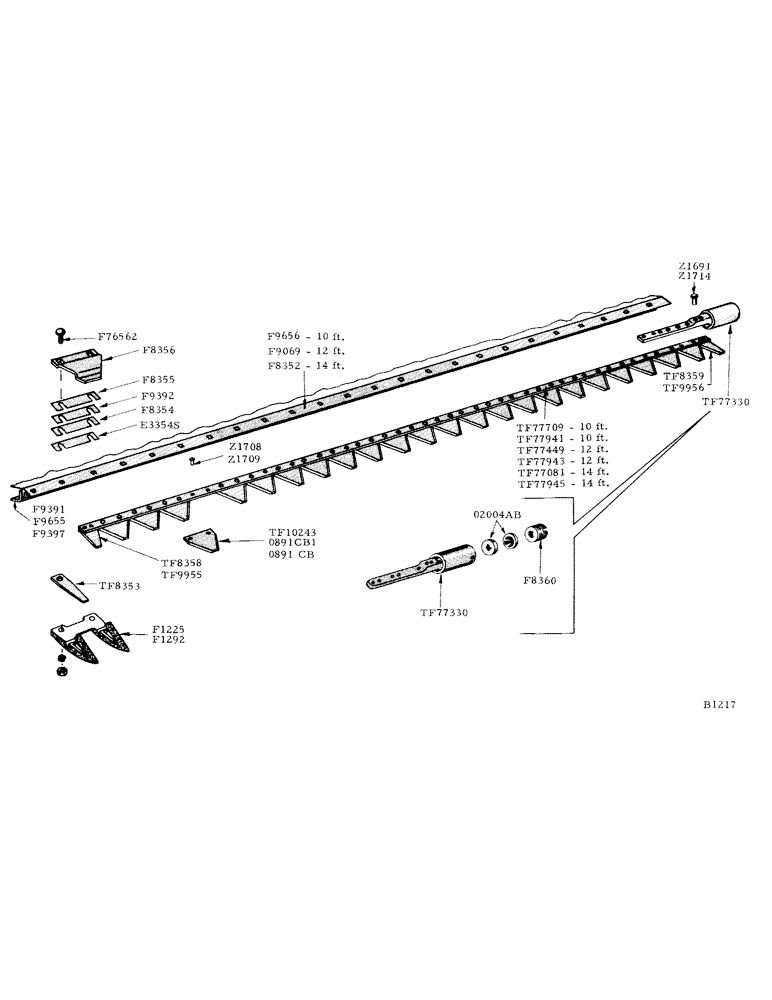

Запчасти Case IH 800 (022) - MALLEABLE SICKLE AND CUTTER BAR, 10 INCH, 12 INCH, 14 INCH (58) - ATTACHMENTS/HEADERS

F1225

X

GUARD - sickle (when these stocks are exhausted use F1292) (10' only)

20шт.

(12' only)

24шт.

(14' only)

28шт.

F1292

GUARD

- sickle (10' only)

20шт.

(12' only)

24шт.

(14' only)

28шт.

3/8" x 1-1/4" carr. bolt w/hex nut and lockwasher (10' only)

20шт.

(12' only)

24шт.

(14' only)

28шт.

F8352

RAIL - cutter bar, for 14 ft. header (14' only)

1шт.

5/16" x 1" carr. bolt w/hex nut and lockwasher

20шт.

F8354

SHIM (14 ga.) sickle hold down clip (10' only)

10шт.

(12' only)

12шт.

(14' only)

14шт.

F8355

SHIM (#20 ga.) sickle hold down clip (10' only)

20шт.

(12' only)

24шт.

(14' only)

28шт.

F8356

CLIP

- sickle hold down (10' only)

10шт.

(12' only)

12шт.

(14' only)

14шт.

F8360

ADJUSTMENT SCREW,1 5/16" - 18 x 3/4"

- adjusting, pitman

1шт.

1/8" str. Lincoln fitting #5000

1шт.

F9069

RAIL - cutter bar, for 12 ft. header (12' only)

1шт.

F9391

REINFORCEMENT - for cutter bar rail F8352 (14' only)

1шт.

F9392

SHIM (#18 ga.) sickle hold down clip (10' only)

10шт.

(12' only)

12шт.

(14' only)

14шт.

F9397

REINFORCEMENT - for cutter bar rail F9069 (12' only)

1шт.

F9655

REINFORCEMENT - for cutter bar rail F9656 (10' only)

1шт.

F9656

RAIL - cutter bar, for 10 ft. header (10' only)

1шт.

F76562

BOLT - sickle guard (3/8" x 1/2" carr. bolt w/nut and lockwasher)

1шт.

TF8353

PLATE

- ledger, sickle guard (10' only)

40шт.

(12' only)

48шт.

(14' only)

56шт.

TF8358

SECTION HALF - R.H. end (#14 ga.) see TF9955

1шт.

TF8359

SECTION HALF - L.H. end (#14 ga.) see TF9956

1шт.

TF9955

LARGE PLATE

SECTION HALF - R.H. end (12 ga.) see TF8358

1шт.

TF9956

X

SECTION HALF - L.H. end (12 ga.) see TF8359

1шт.

TF10243

KNIFE SECTION

SECTION - serrated, #14 ga. will replace 0891CB (10' only)

39шт.

(12' only)

47шт.

(14' only)

55шт.

T19168

RIVET (1 lb. pkg. 1/4" x 1" rd. hd.) for section halves

1шт.

TF77081

KNIFE ASSY

SICKLE - complete, 14 ft. header (when stocks are exhausted use TF77945 (14' only)

1шт.

TF77330

X

HEAD - sickle (for all sickles)

1шт.

TF77449

KNIFE ASSY

SICKLE - complete, 12 ft. (when stocks are exhausted use TF77943) (10' only)

1шт.

TF77709

SICKLE - complete, 10 ft. (when stocks are exhausted use TF77941) (10' only)

1шт.

TF77941

KNIFE ASSY

SICKLE - complete, 10 ft. (heavy duty) see TF77709 (10' only)

1шт.

TF77943

KNIFE ASSY

SICKLE - complete, 12 ft. (heavy duty) see TF77449 (12' only)

1шт.

TF77945

KNIFE ASSY

SICKLE - complete, 14 ft. (heavy duty) see TF77081 (14' only)

1шт.

TF78456

SICKLE - complete, 10 ft. (use TF77941)

1шт.

TF78458

SICKLE - complete, 12 ft. (use TF77943)

1шт.

TF78461

SICKLE - complete, 14 ft. (use TF77945)

1шт.

02004AB

BEARING - pitman socket (1 each side of head)

2шт.

0891CB

SECTION - (Serrated - #14 ga.) sickle (10' only)

39шт.

(12' only)

47шт.

(14' only)

55шт.

0891CB1

SECTION - (Serrated - #12 ga.) sickle (10' only)

39шт.

(12' only)

47шт.

(14' only)

55шт.

E3354S

SHIM - sickle hold down clip (10' only)

20шт.

(12' only)

24шт.

(14' only)

28шт.

Z1691

RIVET

(#5-1/2 x 7/8" O.H.) for riveting #12 ga. sickle sections (0891CB1) to sickle head

1шт.

Z1708

RIVET

(#5-1/2 x 7/16" O.H.) for riveting #14 ga. sickle sections (0891CB or F10243) to bar (1 lb. pkg. - 172 per lb.)

1шт.

Z1709

RIVET (#5-1/2 x 1/2" O.H.) for riveting #12 ga. sickle sections (0891CB1) to bar (1 lb. pkg. - 156 per lb.)

1шт.

Z1714

RIVET (#5-1/2 x 3/4" O.H.) for riveting #14 ga. sickle sections (0891CB or F10243) to sickle head (1 lb. pkg.)

1шт.
