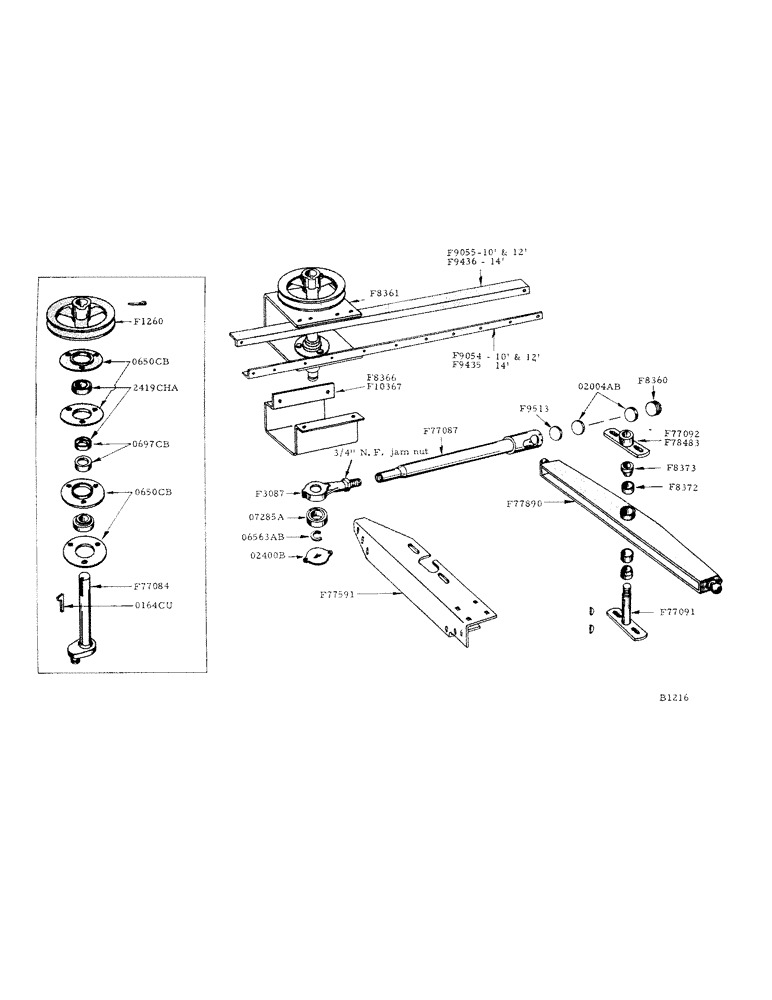

Запчасти Case IH 800 (020) - SICKLE DRIVE (58) - ATTACHMENTS/HEADERS

F1260

SHEAVE (6-3/4" O.D.) sickle drive, driven (500 RPM)

1шт.

F3087

END - pitman

1шт.

F8360

ADJUSTMENT SCREW,1 5/16" - 18 x 3/4"

- adjusting, sickle head

1шт.

1/8" str. Lincoln fitting #5000

1шт.

F8361

SUPPORT - bearing

1шт.

3/8" x 1" N.F. hex. bolt w/hex. nut and lockwasher

8шт.

F8366

SHIELD - sickle drive (regular) see F10367

1шт.

1/4" x 5/8" N.F. hex. bolt w/hex. nut and lockwasher

4шт.

F8372

BEARING

CUP (Tyson #11910-SL) bearing, sway bar

2шт.

F8373

CONE

- bearing, sway bar

2шт.

#61 Woodruff key

2шт.

F9054

ANGLE - sickle drive support, lower (10 ft. and 12 ft.) See F9435

1шт.

5/16" x 3/4" ctsk. hd. rivet

5шт.

F9055

ANGLE - sickle drive support, upper (10 ft. and 12 ft.) see F9436

1шт.

5/16" x 3/4" ctsk. hd. rivet

2шт.

F9072

"V" BELT - sickle drive (12 ft.) see F9442 and F9659

1шт.

F9435

ANGLE - sickle drive support, lower (14 ft.) see F9054

1шт.

5/16" x 3/4" ctsk. hd. rivet

5шт.

F9436

ANGLE - sickle drive support, upper (14 ft.) see F9055

1шт.

5/16" x 3/4" ctsk. hd. rivet

5шт.

F9442

"V" BELT - sickle drive (14 ft.) see F9072 and F9659

1шт.

F9513

BLANK-OFF PLUG

SLUG - pitman (to prevent grease from entering tube)

1шт.

F9659

V-BELT

Sickle Drive, 10 Foot Header, See F9072 and F9442

1шт.

F10367

SHIELD - sickle drive (heavy duty headers) see F8366

1шт.

F77084

SHAFT - crank, sickle drive

1шт.

F77087

PITMAN

- sickle drive

1шт.

1/8" str. Lincoln fitting #5000

1шт.

F77091

SHAFT - pivot, sway bar

1шт.

7/8" - 14 N.F. elastic stop nut (ESNA #29E-144)

1шт.

1/2" x 1-1/4" N.F. hex. bolt w/hex. nut, lockwasher and plain washer

4шт.

F77092

PLATE - adjustment (when these stocks are exhausted, use F78483)

1шт.

1/2" x 1-1/4" N.F. hex. bolt w/hex. nut and lockwasher

4шт.

1/2" plain washer

8шт.

F77591

PLATE - support, sway bar

1шт.

5/16" x 1" N.F. hex. bolt w/hex, nut, lockwasher and plain washer

3шт.

F77890

SWAY BAR - sickle drive (included 2-F8372 cups)

1шт.

1/8" str. Lincoln fitting #5000

1шт.

F78483

BUSHING

PLATE - adjustment (replaces F77092)

1шт.

1/2" x 1-1/4" N.F. hex. bolt w/hex. nut and lockwasher

4шт.

1/2" plain washer

8шт.

07285A

BEARING (N.D. #3205) pitman

1шт.

0906AB

WASHER (1-1/8" O.D. x 1-1/32" I.D. #12) pivot shaft

1шт.

02004AB

BEARING - pitman socket (1-each side of head)

2шт.

06563AB

SNAP RING - pitman bearing

1шт.

02400B

CAP - pitman bearing

1шт.

5/16" x 5/8" N.F. hex. bolt w/lockwasher

2шт.

0650CB

FLANGE - for 2419CHA bearing

4шт.

3/8" x 1" carr. bolt w/hex. nut and lockwasher

6шт.

0697CB

COLLAR - for 2419CHA bearing

2шт.

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING (Fafnir #RA103PPB2 w/0697CB collar) drive shaft

2шт.

0164CU

KEY - gib (2-3/16" long) for F1260 sheave

1шт.
