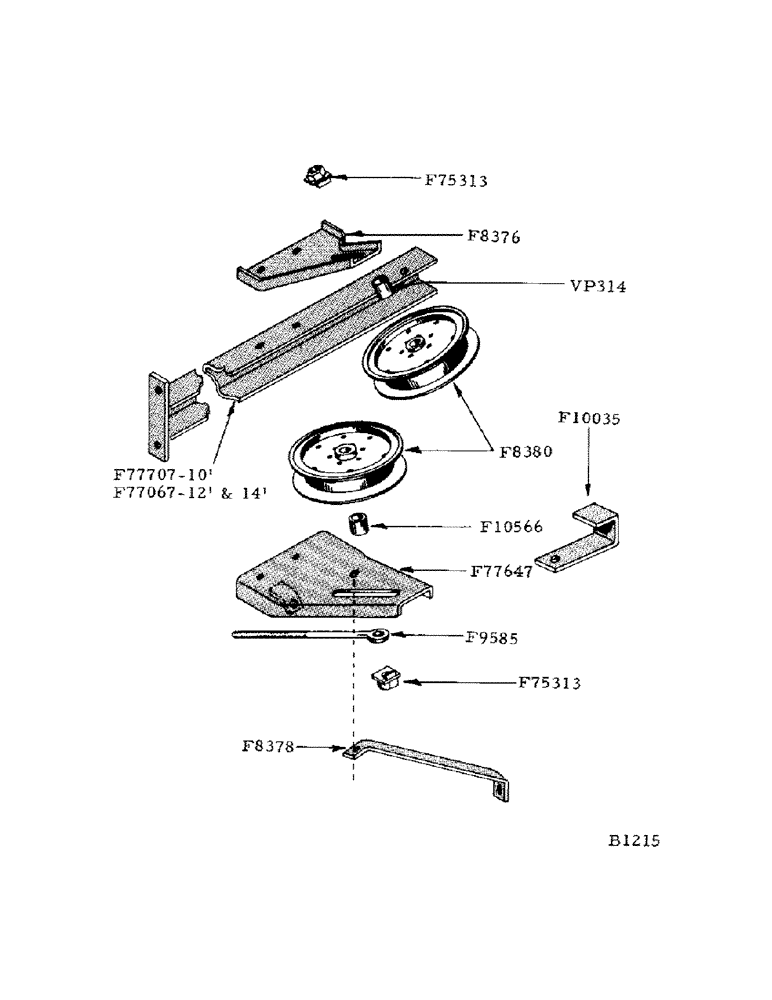

Запчасти Case IH 800 (019) - SICKLE DRIVE IDLER AND TIGHTENER (58) - ATTACHMENTS/HEADERS

F8376

BRACKET - upper idler, sickle drive

1шт.

3/8" x 1" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

F8378

BRACE - lower idler bracket

1шт.

5/16" x 7/8" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

F8380

IDLER (6-3/4" O.D.) sickle drive

2шт.

5/8" x 2-1/4" N.F. hex. bolt w/lockwasher and plain washer

2шт.

F9585

EYE BOLT - sickle drive belt tightener

1шт.

F10035

GUIDE - belt, stop

2шт.

F10566

SPACER (7/8" O.D. x 21/32" long) for F8380 idler (replaces VP314)

2шт.

F75313

LOCKNUT - for idler stud

2шт.

F77067

SCREW

CHANNEL - support, idler and tightener (12 ft. and 14 ft.) see F77707

1шт.

5/16" x 7/8" ctsk. hd. rivet

2шт.

F77647

BRACKET

- lower idler, sickle drive

1шт.

3/8" x 1" N.F. hex. bolt w/hex. nut and lockwasher

4шт.

F77707

NUT

CHANNEL, support, idler and tightener (10 ft.) see F77067

1шт.

5/16 x 7/8" ctsk. hd. rivet

2шт.
