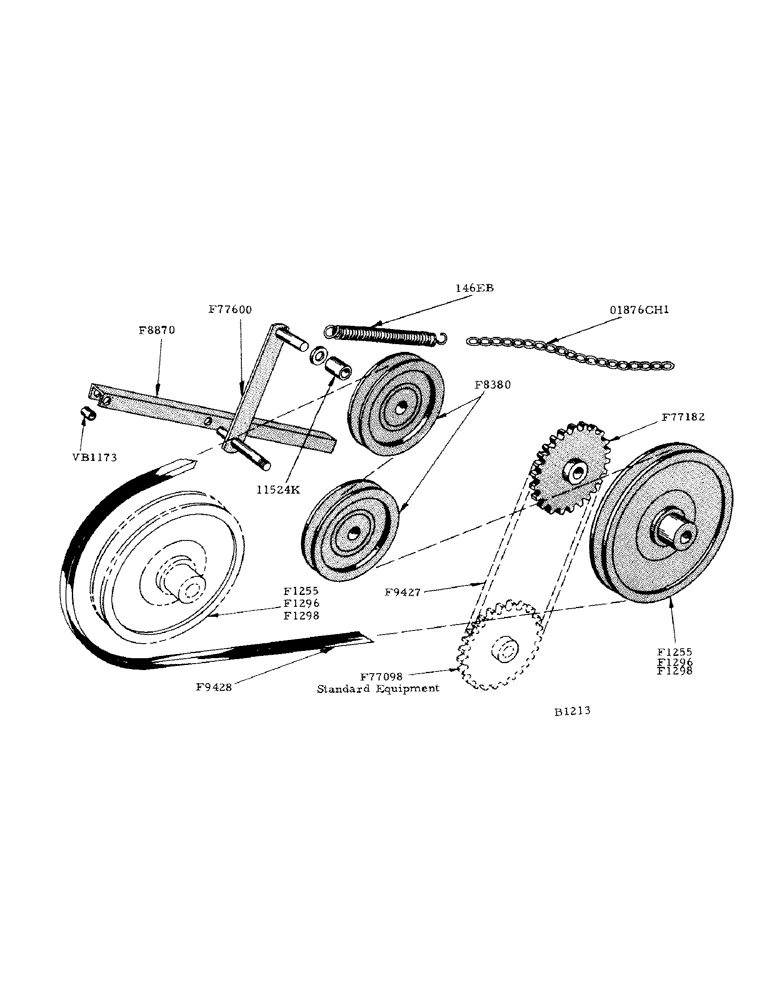

Запчасти Case IH 800 (017) - JACKSHAFT DRIVE (58) - ATTACHMENTS/HEADERS

F1255

SHEAVE HALF - variable speed (drives jackshaft) driven (before no. 8179101) When these stocks are exhausted use F1296 and F1298

2шт.

F1296

SHEAVE HALF - variable speed (drives jackshaft) driven (standard on machines built after no. 8179101) replaces F1255 when those stocks are exhausted

1шт.

F1298

SHEAVE HALF - variable speed (drives jackshaft) driven (standard on machines built after no. 8179101) replaces F1255 when those stocks are exhausted

1шт.

F8380

SHEAVE (6" O.D.) idler and tightener, jackshaft drive

2шт.

5/8" x 3-3/4" N.F. hex. bolt w/hex. nut, lockwasher and plain washer

1шт.

F8870

CHANNEL - jackshaft drive tightener

1шт.

3/8" x 2-1/4" N.F. hex. bolt w/hex. nut, plain washer and lockwasher

1шт.

7/16" x 1" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

F9427

CHAIN (AG)

CHAIN - pickup main drive (use 1-B12474 chain and 1-B12477 chain #50) see chain page

1шт.

F9428

BELT

"V" BELT - jackshaft drive

1шт.

F77182

SPROCKET (15T) on reel drive jackshaft (displaces either F77103 or F77099)

1шт.

F77600

BRACKET - tightener, jackshaft drive

1шт.

5/8" N.F. hex. nut, plain washer and lockwasher

1шт.

3/16" x 3/4" cotter pin

1шт.

01876CH1

CHAIN - tightener tension

1шт.

VB1173

SPACER (3/8" O.D. x 1-1/4" long) tightener channel

2шт.

11524K

BUSHING (1" O.D. x 1-1/2" long) for F8380 sheave

2шт.

146EB

SPRING - tightener tension

1шт.
