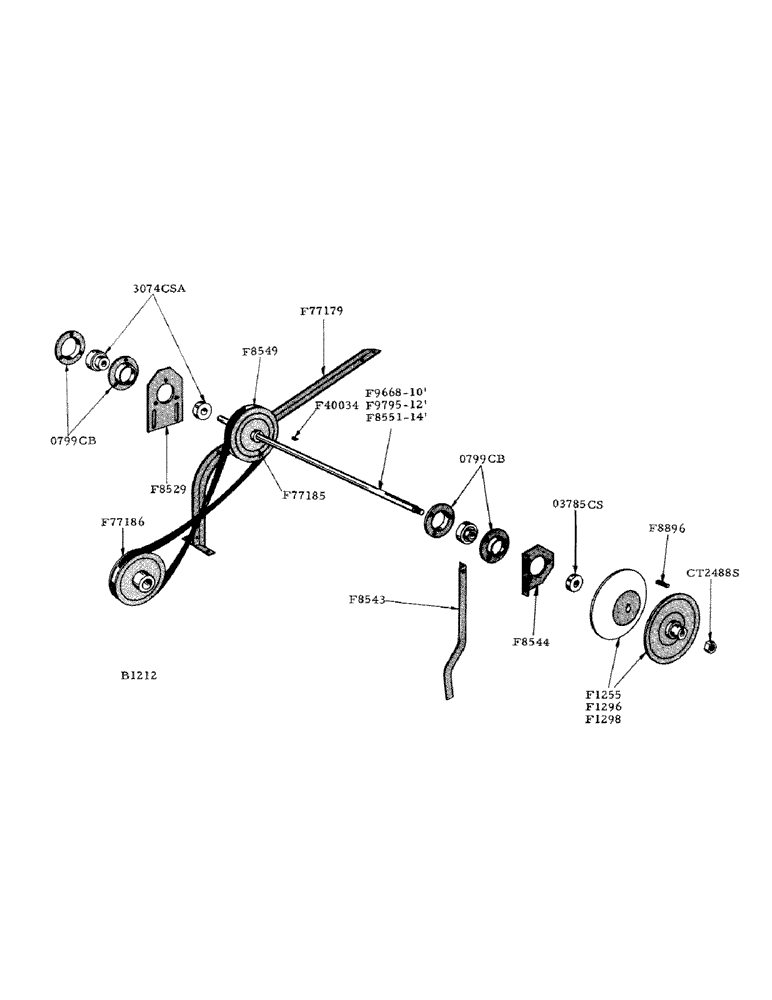

Запчасти Case IH 800 (016) - PICKUP DRIVE JACKSHAFT (58) - ATTACHMENTS/HEADERS

F1255

SHEAVE HALF - variable speed (drives jackshaft) driven (before no. 8179101) when these stocks are exhausted use F1296 and F1298

2шт.

F1296

SHEAVE HALF - variable speed (drive jackshaft) driven (standard on machines built after no. 8179101) replaces F1255 when those stocks are exhausted

1шт.

F1298

SHEAVE HALF - variable speed (drive jackshaft) driven (standard on machines built after no. 8179101) replaces F1255 when those stocks are exhausted.

1шт.

F8529

BRACKET - bearing, R.H. end of jackshaft

1шт.

F8543

ANGLE - jackshaft support, outer

1шт.

1/4" x 3/4" N.F. hex bolt w/hex nut and lockwasher

2шт.

F8544

BRACKET - bearing, L.H. end of jackshaft

1шт.

3/8" x 1" N.F. hex bolt w/hex nut and lockwasher

2шт.

3/8" plain washer

4шт.

F8549

"V" BELT - rear roller drive

1шт.

F8551

JACKSHAFT (1" RD x 43 1/8" long) 14 ft. header

1шт.

1/8" str. Lincoln fitting #5000

1шт.

1/4" x 2" cotter pin

1шт.

3/4" plain washer

1шт.

F8896

KEY (1/4" sq x 3-3/4" long) for F1255 sheave halves

1шт.

F9428

BELT

"V" BELT - jackshaft drive

1шт.

F9668

JACKSHAFT (22-1/8" long) 10 ft. header

1шт.

1/8" str. Lincoln fitting #5000

1шт.

1/4" x 2" cotter pin

1шт.

3/4" plain washer

1шт.

F9795

JACKSHAFT - (1" rd. x 31-1/8" long) 12 ft. header

1шт.

1/8" str. Lincoln fitting #5000

1шт.

1/4" x 2" cotter pin

1шт.

3/4" plain washer

1шт.

F40034

KEY

("A" Woodruff) for F77185 sheave

1шт.

F77179

ANGLE - jackshaft support, inner

1шт.

3/8 x 3/4" N.F. hex bolt w/hex nut, plain washer and lockwasher

2шт.

F77185

SHEAVE (8" O.D.) roller drive

1шт.

F77186

SHEAVE (6-1/2" O.D.) rear roller drive

1шт.

0799CB

FLANGE - for 3074CSA bearing

4шт.

04227CH

SNAP RING - for F1255 sheaves (not shown)

1шт.

03785CS

COLLAR - for 3074CSA bearing

2шт.

3074CSA

BALL BEARING

(Fafnir "RA-100PPB w/03785CS collar) jackshaft

2шт.

CT2488S

X

NUT (ESNA #49NTE-126) adjusting V.S. drive

1шт.
