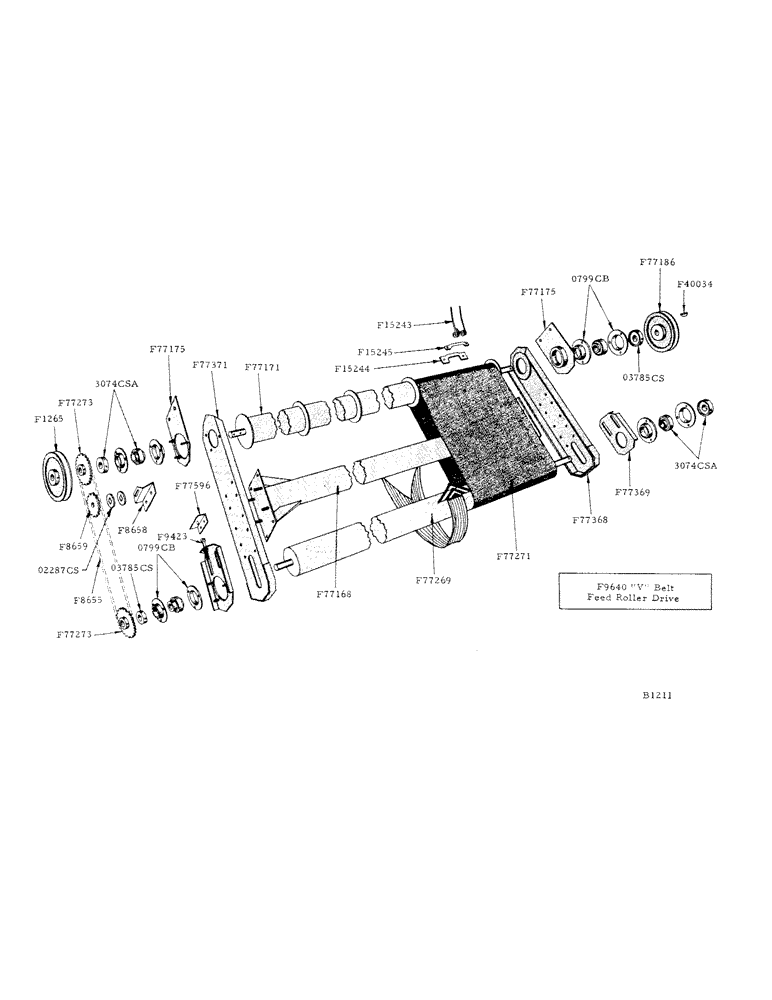

Запчасти Case IH 800 (014) - CONVEYOR (58) - ATTACHMENTS/HEADERS

F15243

SPRING

FINGER - spring (for conveyor)

144шт.

F15244

CLIP - hold down, spring finger (for conveyor)

144шт.

1/4" x 3/4" N.C. flat ctsk, elev. bolt w/hex. nut and lockwasher

288шт.

F15245

RETAINER - spring finger (for conveyor)

144шт.

F77168

TUBE - torque, cross brace

1шт.

5/16" x 1" N.F. hex., bolt w/hex. nut and lockwasher

2шт.

F77271

X

CONVEYOR - pickup (includes belt, 36-F15243 fingers, 36-F15244 clips and 36-F15245 retainers)

4шт.

F77368

SHEET - end, L.H.

1шт.

F77371

SHEET - end, R.H.

1шт.

5/16" N.C. hex. nut and lockwasher

2шт.

F78466

LACING SET - for F77271 conveyor belt

1шт.

B12512

CONNECTOR, ELEC

LINK - connecting, #CA-2060 roller chain, front conveyor

1шт.

B12513

LINK - roller, #CA-2060 roller chain, front conveyor

1шт.

B12515

LINK

- offset, #CA-2060 roller chain, front conveyor

1шт.

F8655

X

CHAIN - lower roller drive (use 2-12483 chain, 2-B12485 chain, 1-B12512 conn. link, 1-B12513 roller link and 3-B12515 offset link #CA-2040 roller chain) see chain page, front conveyor

1шт.

F9423

SCREW - adjusting, for bearing plate, front conveyor rollers

2шт.

F77269

TUBE - front, conveyor roller

1шт.

1/4" x 1-3/4" drive lok-pin type A, front conveyor rollers

1шт.

F77273

SPROCKET (10T) front conveyor roller drive (R.H. end)

1шт.

F77369

SCREW

PLATE - bearing, front adjusting, conveyor rollers

2шт.

5/16" N.F. hex. nut with plain washer and lockwasher, front conveyor rollers

10шт.

F77596

ANGLE - adjusting, for F9423 screw, front conveyor rollers

2шт.

5/16" x 1-1/4" N.F. hex. bolt w/hex, nut and lockwasher, front conveyor rollers

4шт.

0799CB

FLANGE - for 3074CSA bearing, front conveyor rollers

4шт.

03785CS

COLLAR - for 3074CSA bearing, front conveyor rollers

2шт.

3074CSA

BALL BEARING

(Fafnir #RA-100PPB w/03785CS collar) front conveyor roller shaft

2шт.

F1265

SHEAVE (4-5/8" O.D.) beater drive (R.H. end of rear roller shaft), conveyor

1шт.

1/4" x 1-1/2" drive-lock pin, rear coveyor rollers

1шт.

F8549

"V" BELT - rear roller drive (from jackshaft), conveyor

1шт.

F40034

KEY

("A" Woodruff) for F77186 sheave to F77171 roller, rear conveyor

2шт.

F77171

TUBE - rear, conveyor roller

1шт.

1/4" x 1-3/4" drive-lok pin type A, rear conveyor rollers

1шт.

F77175

BRACKET - bearing, for rear conveyor roller tube

2шт.

5/16" N.C. hex. nut and lockwasher, rear conveyor rollers

6шт.

7/16" x 1" N.F. hex. bolt w/hex., nut and lockwasher, rear conveyor rollers

4шт.

F77186

SHEAVE - (6-1/2" O.D.) rear roller drive (L.H. end), conveyor

1шт.

1/4" x 1-3/4" drive-lock pin type A, rear conveyor rollers

1шт.

F77273

SPROCKET (10T) conveyor roller drive (R.H. end), rear

1шт.

0799CB

FLANGE - for rear conveyor roller bearing 3074CSA

4шт.

03785CS

COLLAR - for 3074CSA bearing, rear conveyor rollers

2шт.

3074CSA

BALL BEARING

- (Fafnir #RA-100PPB w/03785CS collar) rear roller shaft, conveyor

2шт.

F8658

BRACKET - tightener, conveyor chain drive

1шт.

5/8" x 2" N.C. rd. hd. sq. neck bolt w/hex. nut and lockwasher, tightener, conveyor chain drive

1шт.

5/8" plain washer, tightener, conveyor chain drive

2шт.

F8659

SPROCKET (11T) conveyor chain tightener, drive

1шт.

02287CS

WASHER (1-5.16" O.D. x 21/32" sq. hole) idler, tightener, conveyor chain drive

2шт.
