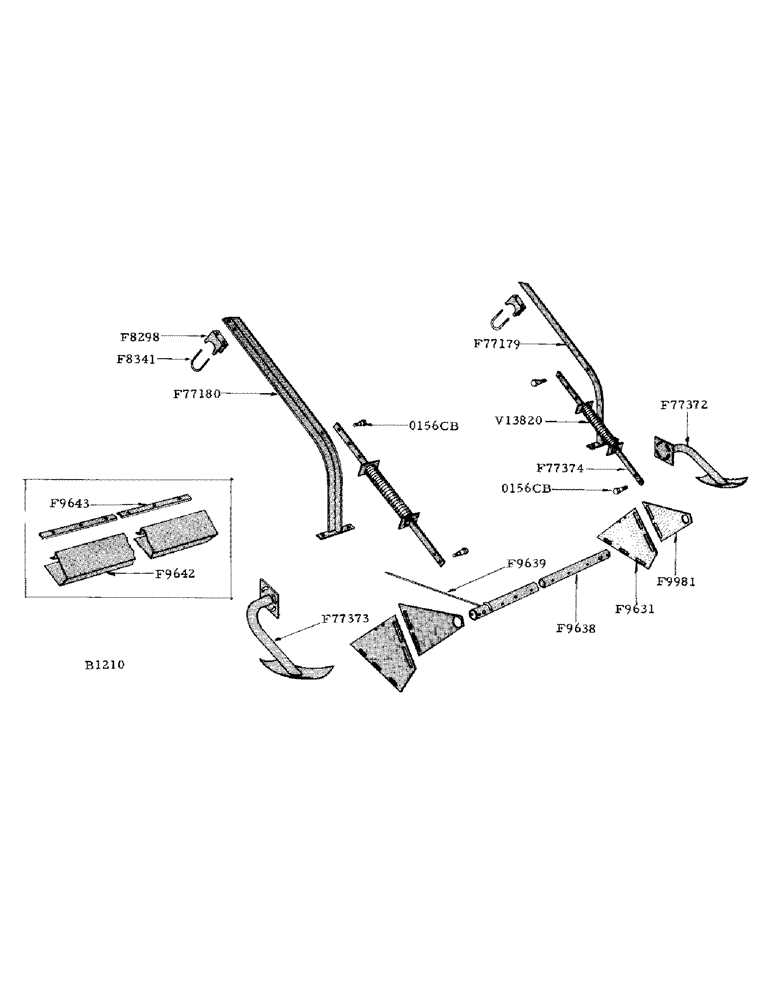

Запчасти Case IH 800 (013) - PICKUP SUPPORTS (58) - ATTACHMENTS/HEADERS

F8298

SUPPORT - mounting angle

2шт.

F8341

"U" BOLT - mounting angle support

2шт.

3/8" N.F. hex nut and lockwasher

4шт.

F9631

BRACKET - beater support

2шт.

5/16" x 3/4" N.F. hex bolt w/hex nut and lockwasher and plain washer

6шт.

F9633

BRACKET - pivot, for wind guard shaft (not shown) see feeder roll attachment

2шт.

1/4" x 1/2" N.F. hex bolt w/hex nut and lockwasher

4шт.

F9638

PIPE - wind guard

1шт.

3/16" x 2" cotter pin

2шт.

F9639

TINE - wind guard

15шт.

F9639 tine must be shortened 13" when used with feeder roll attachment.

1шт.

F9642

SHIELD - sickle guard

2шт.

F9643

WIPER - finger

2шт.

1/4" x 5/8" N.F. hexbolt w/hex nut and lockwasher, and plain washer

10шт.

F9981

BRACKET - wind guard support (see F9633)

2шт.

5/16" x 3/4" N.F. hex bolt w/hex nut and lockwasher

4шт.

F77179

ANGLE - mounting, L.H.

1шт.

7/16" x 1" N.F. hex bolt w/hex nut and lockwasher

2шт.

F77180

ANGLE - mounting, R.H.

1шт.

7/16" x 1" N.F. hex bolt w/hex nut and lockwasher

2шт.

F77372

RUNNER - L.H.

1шт.

3/8" N.C. hex nut, lockwasher and plain washer

4шт.

F77373

RUNNER - R.H.

1шт.

3/8" N.C. hex nut, lockwasher and plain washer

4шт.

F77374

SUPPORT ARM - spring seat

4шт.

0156CB

BOLT - shoulder, connects support arms

4шт.

3/8" N.C. hex nut and lockwasher

4шт.

V13820

SPRING - for support arms

2шт.
