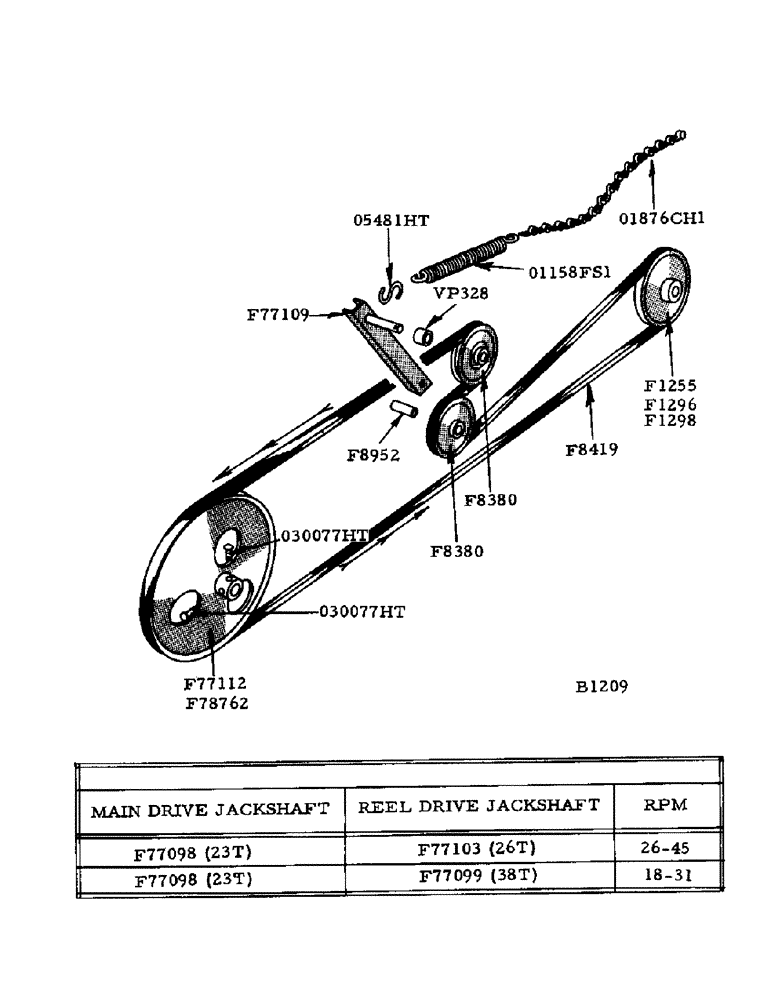

Запчасти Case IH 800 (012) - REEL DRIVE (58) - ATTACHMENTS/HEADERS

F1255

SHEAVE HALF - (8-5/8" O.D.) reel drive (Before no. 8179101) when these stocks are exhausted, use F1296 and F1298

2шт.

F1296

SHEAVE HALF - (8-5/8" O.D.) reel drive (will replace F1255 when those stocks are exhausted) standard on machines built after no. 8179101

1шт.

F1298

SHEAVE HALF - (8-5/8" O.D.) reel drive (will replace F1255 when those stocks are exhausted) standard on machines built after no. 8179101

1шт.

F8380

SHEAVE (6-3/4" O.D.) idler and tightener, reel drive

2шт.

5/8" x 3-3/4" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

5/8" x 5" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

F8419

V-BELT

"V" BELT - reel drive

1шт.

F8952

SPACER (7/8" O.D. x 2-5/16" long) for F8380 sheave

1шт.

F77109

SCREW

BRACKET - reel drive tightener

1шт.

3/16" x 3/4" cotter pin

1шт.

F77112

SHEAVE (23-1/8" O.D.) reel drive (before no. 8179751) see F78762

1шт.

F78762

SHEAVE

(23-1/8" O.D.) reel drive (after no. 8179751) will replace F77112 when those stocks are exhausted

1шт.

01876CH1

CHAIN - reel belt tightener

1шт.

01158FS1

SPRING - reel belt tightener

1шт.

05481HT

"S" HOOK - for chain

2шт.

030077HT

PIN - retaining, reel drive sheave

2шт.

1/8" x 5/8" cotter pin

2шт.

VP328

SPACER - for 1-F8380 sheave

1шт.
