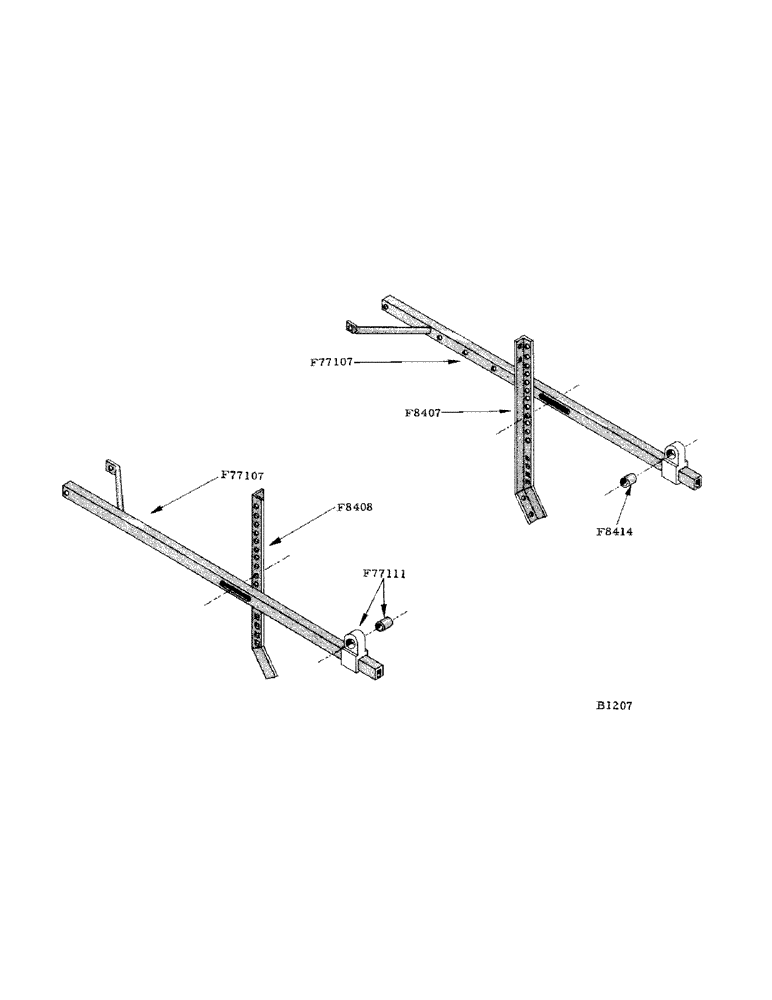

Запчасти Case IH 800 (010) - REEL SUPPORTS (58) - ATTACHMENTS/HEADERS

F8407

RAIL - reel support, L.H.

1шт.

5/16" x 5/8" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

5/16" x 5/8" carr. bolt w/hex. nut and lockwasher

3шт.

F8408

RAIL -reel support, R.H.

1шт.

5/16" x 5/8" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

5/16" x 5/8" carr. bolt w/hex. nut and lockwasher

3шт.

F8414

BUSHING (1-1/8" O.D. x 1-15/32" long) for F77111

2шт.

F77107

SCREW

ARM - reel support

2шт.

7/16" x 1-1/2" N.F. hex. bolt w/dbl. hex. nut

4шт.

F77111

SCREW

SUPPORT - reel shaft, w/F8414 bushing

2шт.

1/2" x 1" N.C. sq. hd. cup pt. set screw

2шт.
