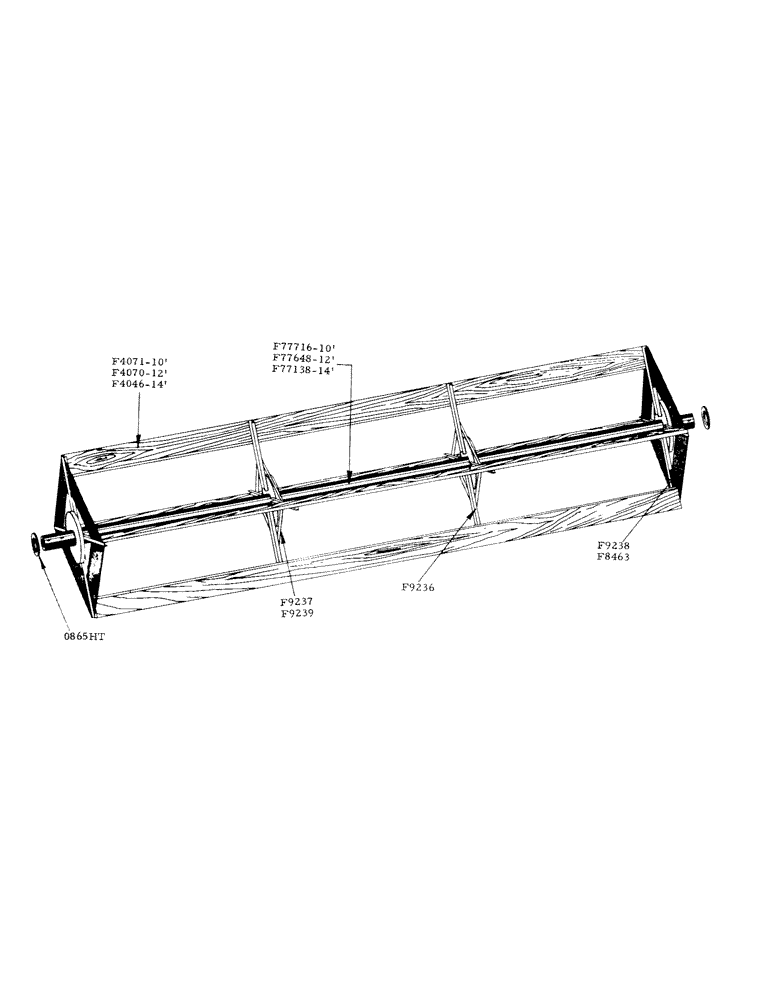

Запчасти Case IH 800 (008) - REEL, FOUR BAT, 10 INCH, 12 INCH, 14 INCH (58) - ATTACHMENTS/HEADERS

F4046

BAT - reel, 14 ft. header (14' only)

4шт.

1/4" x 1" carr. bolt w/hex nut and lockwasher (14' only)

32шт.

F4070

BAT - reel, 12 Ft. header (12' only)

4шт.

1/4" x 1" carr. bolt w/hex nut and lockwasher (12' only)

32шт.

F4071

BAT - reel, 10 ft. header (10' only)

4шт.

1/4" x 1" carr. bolt w/hex nut and lockwasher (10' only)

32шт.

F9236

ARM

- reel

16шт.

1/4" x 5/8" N.F. hex bolt w/hex nut and lockwasher

32шт.

F9237

STRAP - tie, reel arm (13-11/16" long)

8шт.

1/4" x 5/8" N.F. hex bolt w/hex nut and lockwasher

8шт.

F9238

CLOSURE - reel end

8шт.

1/4" x 1/2" N.F. hex bolt w/hex nut and lockwasher

32шт.

F77138

SHAFT - reel, with arm hubs, 14 ft. header (14' only)

1шт.

1/4" x 2" cotter pin (14' only)

3шт.

F77648

SHAFT - reel, with arm hubs, 12 ft. header (12' only)

1шт.

1/4 x 2" cotter pin (12' only)

3шт.

F77716

NUT

SHAFT - reel, with arm hubs, 10 ft. header (10' only)

1шт.

1/4 x 2" cotter pin (10' only)

3шт.

0865HT

WASHER (2" O.D. x 1-17/32" I.D. #16 ga.) reel shaft

3шт.

F4046

BAT - reel, 14 ft. header (14' only), conversion kit, (4 to 6), 10',12'

2шт.

1/4" x 1" carr. bolt w/hex nut and lockwasher (14' only), reel conversion kit, (4 bat to 6 bat), 10',12'

16шт.

F4070

BAT - reel, 12 ft. header (12' only), conversion kit, (4 to 6), 10', 14'

2шт.

1/4" x 1" carr. bolt w/hex nut and lockwasher (12' only), reel conversion kit, (4 bat to 6 bat), 10', 14'

16шт.

F4071

BAT - reel, 10 ft. header (10' only), conversion kit, (4 to 6), 12', 14'

2шт.

1/4" x 1" Carr. bolt w/hex nut and lockwasher (10' only), reel conversion kit, ( 4 bat to 6 bat), 12', 14'

16шт.

F8463

CLOSURE - reel end (6-bat only), conversion kit, (4 bat to 6 bat), 10', 12', 14'

12шт.

F9236

ARM

- reel conversion kit, (4 bat to 6 bat), 10', 12', 14'

8шт.

1/4" x 5/8" N.F. hex botl w/hex nut and lockwasher, reel conversion kit, (4 bat to 6 bat), 10', 12', 14'

16шт.

F9239

STRAP - tie, reel arms (6-bat only) 9-7/8" long), reel conversion kit, (4 bat to 6 bat), 10', 12', 14'

12шт.

1/4" x 5/8" Carr. bolt w/hex nut and lockwasher, reel conversion kit, (4 bat to 6 bat), 10', 12', 14'

4шт.

F10036

TIE STRAP (To convert a 4 or 6 bat reel to 3 bat), reel conversion kit

12шт.

F77870M

HARRISON PICKUP REEL FOR 10 FT. HEADER (machinery item)

1шт.

F77875M

HARRISON PICKUP REEL FOR 12 FT. HEADER (machinery item)

1шт.

F77880M

HARRISON PICKUP REEL FOR 14 FT. HEADER (machinery item)

1шт.
