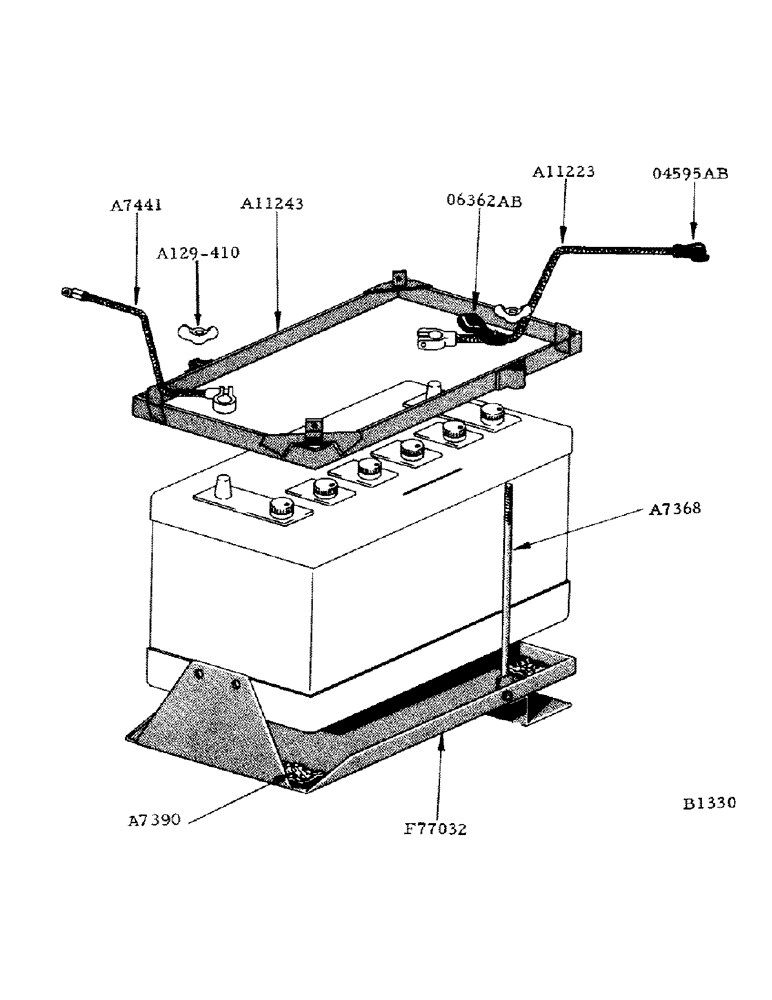

Запчасти Case IH 800 (253) - BATTERY TRAY, GASOLINE (55) - ELECTRICAL SYSTEMS

BATTERY - 12 volt, dry charged (Exide no. SS-3SM) not furnished by J.I. Case Co.

1шт.

A7368

BOLT - battery hold down

2шт.

5/16" x 5/8" W.B. hd. rivet

2шт.

A129-410

3/8" N.C. wing nut

2шт.

A7390

PAD - rubber, battery

2шт.

A7441

CABLE

- battery ground (21")

1шт.

A11223

X

CABLE - battery to starter (28 1/2")

1шт.

A11243

FRAME - battery clamping

1шт.

F77032

TRAY - battery, with hold down bolts and bumpers

1шт.

5/16" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

04595AB

NIPPLE - battery, positive terminal (rubber)

1шт.

06362AB

COVER - battery, positive terminal

1шт.

BATTERY - 6 volt, dry charged (Exide #XF-19) not furnished by J.I. Case Co., tray, diesel

2шт.

A7368

BOLT - battery hold down, tray, diesel

2шт.

5/16" x 5/8" W.B. hd. rivet, battery tray, diesel

2шт.

A129-410

3/8" N.C. wing nut, battery tray, diesel

2шт.

A7382

COVER - battery, tray, diesel

1шт.

A7390

PAD - rubber, battery, tray, diesel

2шт.

A7440

CABLE

- battery to battery, tray, diesel

1шт.

F77881

TRAY - battery, with hold down bolts and bumpers, diesel

1шт.

5/16" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher, battery tray, diesel

1шт.

1/4" x 5/8" N.C. hex. bolt w/lockwasher, battery tray, diesel

1шт.

06362AB

COVER - battery, positive terminal, tray, diesel

1шт.

07420AB

PAD - rubber, for A7382 cover, battery tray, diesel

4шт.
