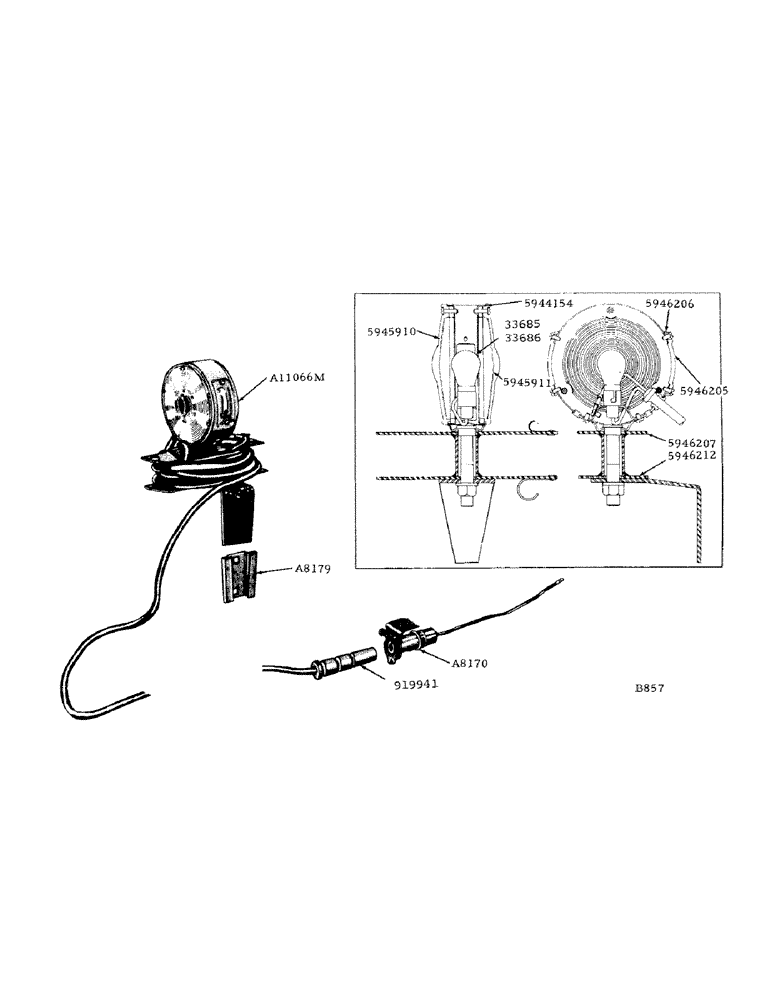

Запчасти Case IH 800 (251) - WARNING LAMP ATTACHMENT (55) - ELECTRICAL SYSTEMS

A8170

SOCKET

- electrical outlet

1шт.

#10-32 x 3/4" N.C. rd. hd. mach. screw w/nut and lockwasher

2шт.

A8179

SOCKET

BRACKET - warning lamp socket

2шт.

5/16" x 1" carr. bolt w/hex. nut and lockwasher

4шт.

A11066M

LAMP - warning (consists of lamp and 1-A8179 socket, 1-103642 6 volt bulb and 1-14256 12 volt bult) see note

1шт.

F8875

WIRE - light switch (current side) to outlet socket

1шт.

05939A

CLIP - wire (3/16" D)

1шт.

06168AB

CLIP - wire (1/4" D)

4шт.

07549AB

CONNECTOR - two wire line

2шт.

33685

BULB - 21 c.p., 6 volt (mfrs. no. 1129), parts for A11066M warning lamp

1шт.

33686

BULB

- 21 c.p., 12 volt (mfrs. no. 1141), parts for A11066M warning lamp

1шт.

919941

PLUG ASSEMBLY, parts for A11066M warning lamp

1шт.

5944154

GASKET - lens, parts for A11066M warning lamp

2шт.

5945910

LENS - amber, parts for A11066M warning lamp

1шт.

#6-32 x 1/2" rd. hd. slotted screw, parts for A11066M warning lamp

3шт.

5945911

LENS - red, parts for A11066M warning lamp

1шт.

#6-32 x 1/2" rd. hd. slotted screw, parts for A11066M warning lamp

3шт.

5946205

LENS - outlook, parts for A11066M warning lamp

2шт.

#6-20 x 5/16" pan hd. screw, parts for A11066M warning lamp

4шт.

5946206

GASKET - outlook lens, parts for A11066M warning lamp

2шт.

5946207

SPOOL ASSEMBLY, parts for A11066M warning lamp

1шт.

7/16" - 14 hex. nut, parts for A11066M warning lamp

1шт.

7/16" lockwasher, parts for A11066M warning lamp

1шт.

5946212

BRACKET - mounting, parts for A11066M warning lamp

1шт.
