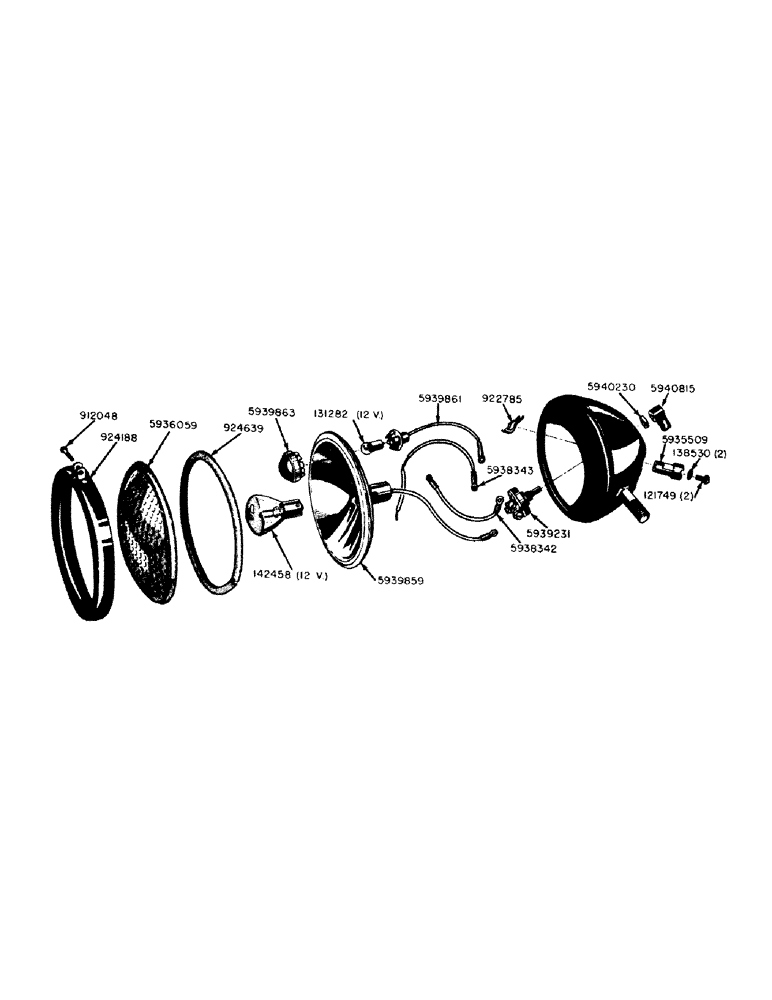

Запчасти Case IH 800 (249) - 09897 AB COMBINATION FLOOD AND TAIL LAMP (55) - ELECTRICAL SYSTEMS

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

- terminal

2шт.

131282

BULB,C2V, #53, 14.4V

- light, small (no. 53, ICP single contact, 12-16 volt)

1шт.

138530

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, , Terminal screw Int Tooth, #8

2шт.

NLS

NO LONGER SERVICED

BULB - light, large (no. 1143, 32 CP single contact, 12-16 volt)

1шт.

912048

SCREW - moulding

1шт.

922785

SUPPORT

SPRING - terminal

1шт.

924188

MOULDING ASSEMBLY

1шт.

924639

GASKET - reflector seal

1шт.

5935509

TERMINAL POST COMPLETE

1шт.

5936059

LENS

1шт.

5938342

WIRE ASSEMBLY -, Serial Range: terminal-switch

1шт.

5938343

WIRE ASSEMBLY - large bulb switch

1шт.

5939231

SWITCH ASSEMBLY (includes knob assembly)

1шт.

5939859

REFLECTOR ASSEMBLY

1шт.

5939861

SOCKET AND WIRE ASSEMBLY

1шт.

5939863

JEWEL ASSEMBLY

1шт.

5940230

NUT - retaining, for switch

1шт.

5940815

SWITCH KNOB ASSEMBLY W/SCREW

1шт.
