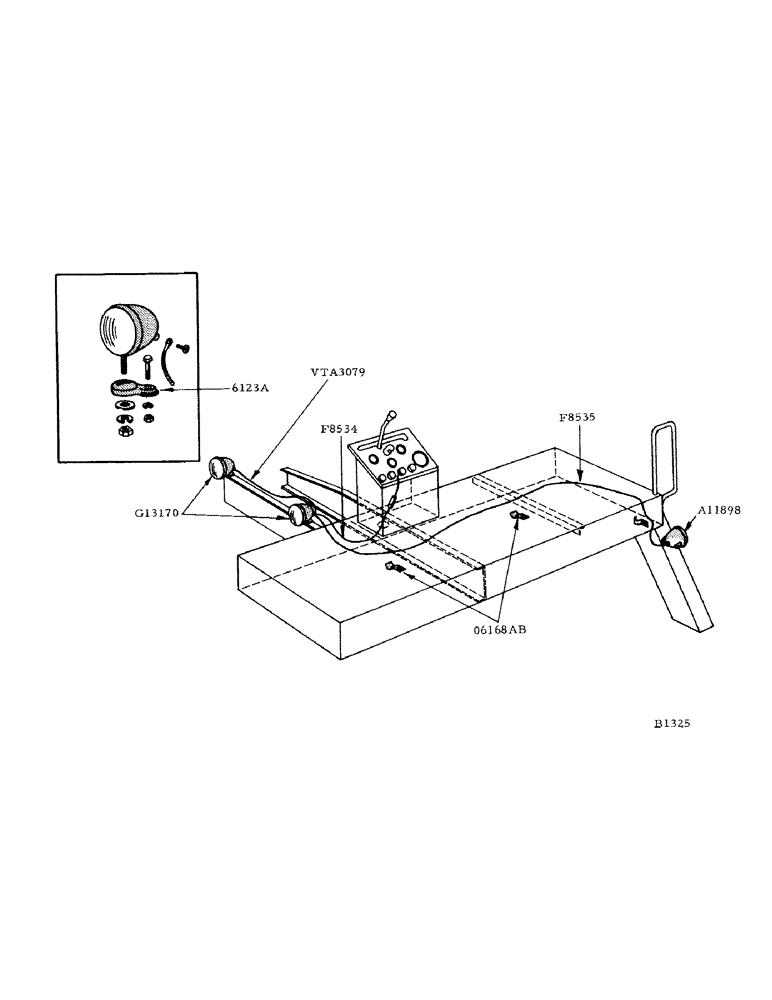

Запчасти Case IH 800 (247) - LIGHTING ATTACHMENT (55) - ELECTRICAL SYSTEMS

A11898

X

LAMP - combination flood and tail

1шт.

1/2" plain washer

1шт.

1/2" N.C. hex. nut and lockwasher

1шт.

F8534

WIRE (45" long) light switch to outlet socket (includes 9 amp fuse)

1шт.

F8535

WIRE (135" long) head lights to tail light

1шт.

G13170

HEAD LAMP (12 volt)

2шт.

1/2" plain washer

2шт.

1/2" N.C. hex. nut and lockwasher

2шт.

6123A

X

BRACKET - 2 for head lamps and 1 for tail lamp (not shown)

3шт.

3/8" x 1-1/4" N.F. hex. bolt w/hex. nut and lockwasher

3шт.

06168AB

CLIP - wire, head and tail lamp (not shown)

3шт.

1/4" x 1/2" N.C. rd. hd. mach. screw w/hex. nut and lockwasher

3шт.

09897AB

LAMP (use A11898)

1шт.

VTA3079

CABLE - outlet, Serial Range: socket-lamps

1шт.

F223-9

FUSE (9 amp.) for F8534 wire

1шт.
