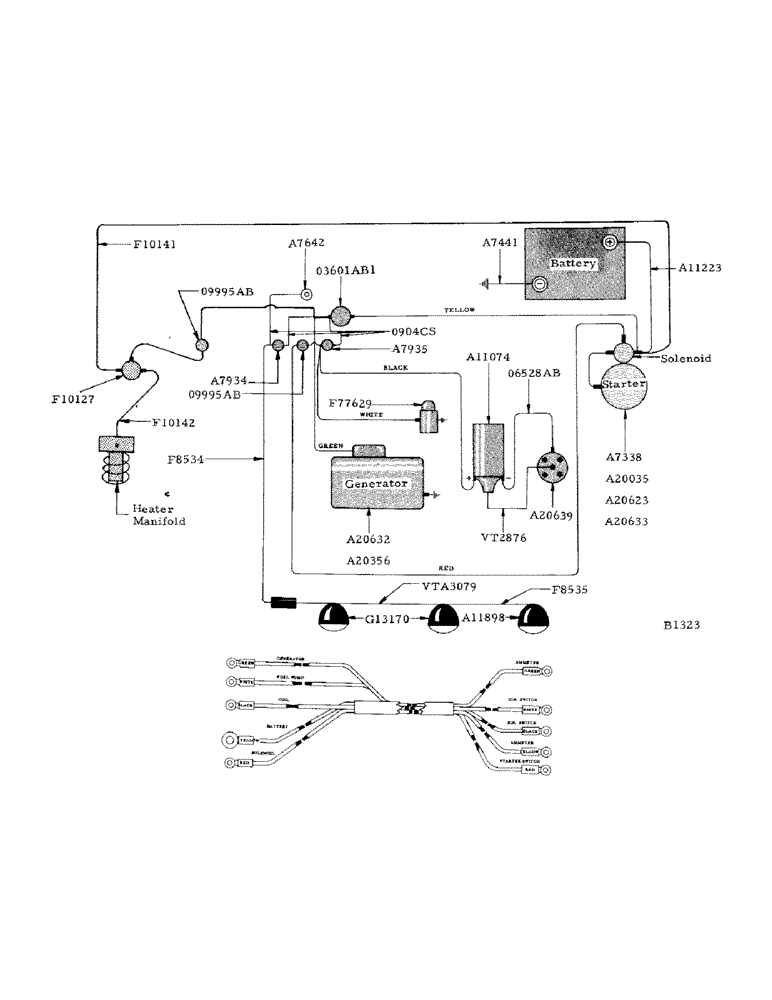

Запчасти Case IH 800 (246) - ELECTRICAL SYSTEM (55) - ELECTRICAL SYSTEMS

A7338

SPARE PART MOTOR - starting, 12 volt (Electric Auto-Lite no. MCK-4005) diesel can use A20633

1шт.

A7441

CABLE

CABLE - ground

1шт.

A7642

LAMP

LAMP - dash (12 volt - 15" wire)

1шт.

*

#6-32 x 5/16" Parker-Kalon self tapping rd. hd. sheet metal screw

2шт.

A7934

SWITCH

SWITCH - light, with A7817 knob

1шт.

A7935

SWITCH

SWITCH - distributor ignition, with A7819 knob

1шт.

A11074

COIL

COIL

1шт.

A11223

X

CABLE - battery to starter (28-1/2")

1шт.

A20035

SPARE PART MOTOR - starting, 12 volt (Electric Auto Lite no. MDL-6015) spark ignition (can use A20623)

1шт.

A20356

GENERATOR - 20 amp., 12 volt (Electric Auto Lite no. GJL-7001-EN) can use A20632

1шт.

A20623

SPARE PART MOTOR - starting, 12 volt (Delco-Remy no. 1107750) spark ignition

1шт.

A20632

X

GENERATOR - 12 volt (Delco-Remy no. 110369) see A20356

1шт.

A20633

STARTER MOTOR

MOTOR - starting, 12 volt (Delco-Remy no. 1113111) diesel

1шт.

AR20633

REMAN-STARTER

Reman for New PN A20633

1шт.

AC20633

CORE-STARTER

Return Number

1шт.

104213A2R

REMAN-STARTER

Remanufactured Starter

1шт.

104213A1C

CORE-STARTER

Return Number

1шт.

RR46156

REMAN-STARTER

Remanufactured Starter

1шт.

RC46156

CORE-STARTER

Return Number

1шт.

A20639

SPARE PART DISTRIBUTOR

1шт.

F6112

SPARE PART CABLE (see illustration)

1шт.

F10127

SOLENOID - heater

1шт.

F10141

CABLE - starter solenoid to heater solenoid

1шт.

F10142

CABLE

CABLE - heater solenoid to heater manifold

1шт.

F77629

SPARE PART PUMP - fuel (Auto Pulse Electric Model #12V511)

1шт.

03601AB1

AMMETER

1шт.

06528AB

WIRE - distributor to coil (-)

1шт.

09995AB

SWITCH - starter, with 010463AB boot

1шт.

VT2876

X

CABLE -, Serial Range: coil-distributor

1шт.

0904CS

WIRE (6" long) ammeter to lights, ammeter to ignition switch and ignition switch to starter button

3шт.
