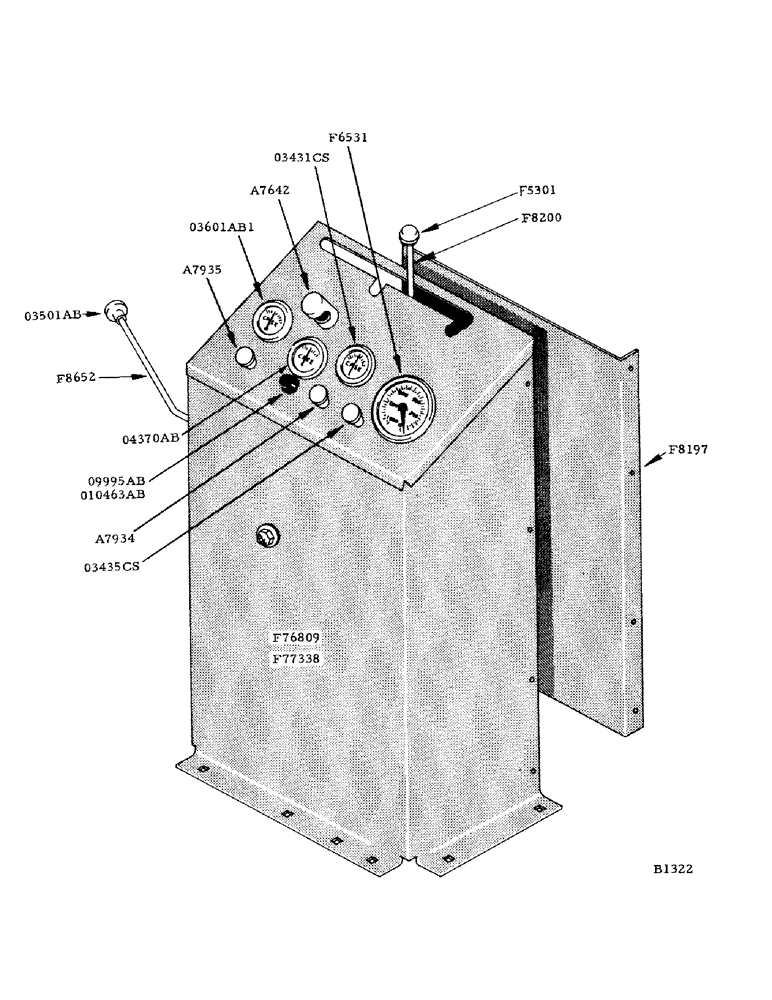

Запчасти Case IH 800 (244) - INSTRUMENT PANEL, GASOLINE (55) - ELECTRICAL SYSTEMS

A7642

LAMP

- dash (12 volt-15" wire)

1шт.

#6-32 x 5/16" Parker-Kalon self tapping rd. hd. sheet metal screw

2шт.

A7817

KNOB

- light switch

1шт.

A7819

KNOB

- ignition switch

1шт.

A7934

SWITCH

- light, with A7817 knob

1шт.

A7935

SWITCH

- distributor ignition, with A7819 knob

1шт.

F5301

KNOB - throttle control

1шт.

F6112

HARNESS - electric cable (see illustration of F6112)

1шт.

F6531

TACHOMETER (Variable speed belt driven cylinder only) see F9333

1шт.

F8173

LINE - oil pressure (not shown)

1шт.

#66FL Imp. brass coupler (1/4" O.D. x 1/8" N.P.T. - female)

1шт.

F8197

COVER - instrument panel

1шт.

1/4" x 1/2" N.F. hex. bolt w/hex. nut, lockwasher and plain washer

8шт.

F8200

LEVER - throttle control (see gear shift)

1шт.

F8652

LEVER - shift (see gear shift illustration)

1шт.

F9333

COVER - tachometer hole

1шт.

#6 x 3/8" self tapping screw

3шт.

F76809

PANEL - instrument

1шт.

1/4" x 1/2" N.C. hex. bolt w/hex. nut and lockwasher

4шт.

03501AB

KNOB - gear shift

1шт.

03601AB1

AMMETER

1шт.

04370AB

GAUGE - oil pressure

1шт.

1/4" O.D. x 1/8" P.T. coupling (Imperial brass #66FL)

1шт.

09995AB

SWITCH - starter, with 010463AB boot

1шт.

010463AB

BOOT - rubber, for 09995AB starter switch

1шт.

VT2124

X

FUSE (SFE-20 amp.) for A7934 light switch

1шт.

03431CS

GAUGE - temperature

1шт.

03435CS

CHOKE - flexible control (not shown)

1шт.

A11471

X

GAUGE - fuel pressure, instrument panel, diesel

1шт.

1/8" O.D. x 1/8" NPT connector (Imperial Brass #66FL), instrument panel, diesel

1шт.

F8800

LOOM - for F8799 tube ("719" diesel engines) see F10540, instrument panel

1шт.

F8802

LINE - fuel pressure gauge (for "719" diesel engines) see F10541, instrument panel

1шт.

F9909

CABLE - ammeter to starter, instument panel, diesel

1шт.

F10540

LOOM - for F10541 tube ("A267D" engines) see F8800, instrument panel, diesel

1шт.

F10541

LINE - fuel pressure gauge ("A267D" engines) see F8802, instrument panel, diesel

1шт.

F77338

PANEL - instrument, diesel

1шт.

09995AB

SWITCH - diesel starting aid, manifold heater, instrument panel

1шт.

VT2124

X

FUSE - (SFE - 20 amp) for F9909, instrument panel, diesel

1шт.
