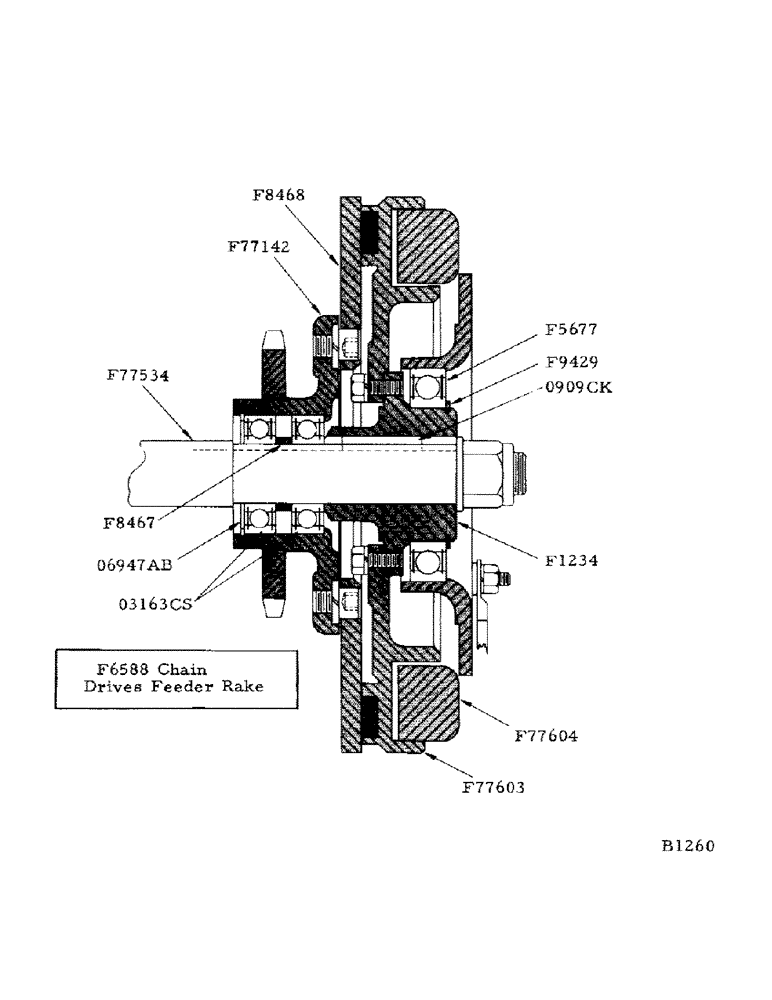

Запчасти Case IH 800 (077) - ELECTRIC CLUTCH ATTACHMENT (55) - ELECTRICAL SYSTEMS

F1234

HUB - outer

1шт.

5/16" x 5/8" N.C. hex. bolt w/lockwasher

4шт.

F5677

BEARING (Fafnir #9114PP) for F1234 hub

1шт.

F5681

SWITCH - foot, operator's platform

1шт.

1/4" x 3/4" N.C. hex. bolt w/lockwasher

1шт.

F5682

CONDENSER

1шт.

F5744

SUPPORT - condenser clip

1шт.

F8467

SPACER (1-7/16" O.D. #11 ga.) for 03163CS bearing

1шт.

F8468

PLATE - armature

1шт.

F8470

WIRE - foot, Serial Range: switch-clutch

2шт.

F9429

RING - retaining, for F5677 bearing

1шт.

F10284

STRAP - ground

1шт.

5/16" x 5/8" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

F10450

RESISTOR - field

1шт.

1/4" x 1/2" N.C. hex. bolt w/hex. nut and lockwasher

1шт.

F77142

HUB - inner with welded 27T sprocket (see F6423)

1шт.

7/16" x 1/2" N.C. hex. socket hd. cap screw w/lockwasher

4шт.

F77534

SHAFT - beater

1шт.

F77603

ROTOR

1шт.

F77604

FIELD ASSEMBLY

1шт.

06168AB

CLIP - condenser

1шт.

3/8" x 3/4" N.C. hex. bolt w/hex. nut and lockwasher

2шт.

06947AB

SNAP RING - retaining 03163CS bearings in F77142 hub

1шт.

09675AB

CABLE - for F10450 resistor

1шт.

3/16" x 1/2" N.C. rd. hd. mach. screw w/hex, nut and lockwasher

1шт.

0909CK

KEY (5/16" sq x 1-5/8") electric clutch to beater shaft

1шт.

03163CS

BEARING (N.D. #99506) for F77142 hub

2шт.

03692N

GROMMET - rubber, operator's platform

2шт.
