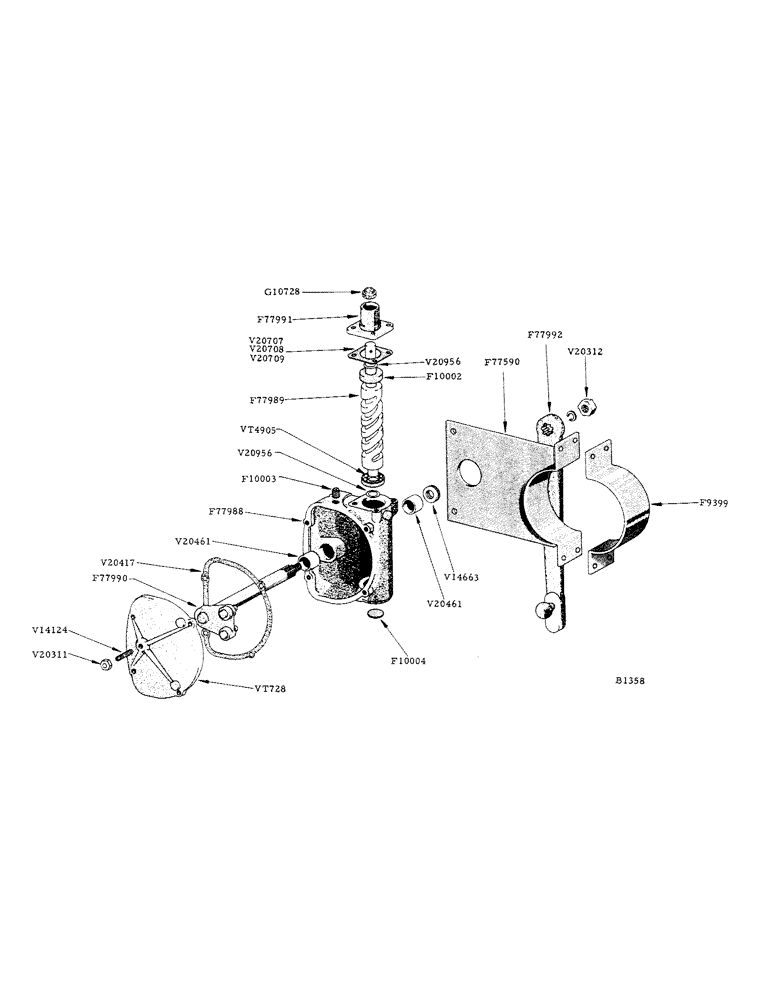

Запчасти Case IH 800 (292) - PARTS FOR F76784 STEERING ASSEMBLY (41) - STEERING

F9399

CLAMP - steering support

1шт.

1/2" x 1-1/4" N.F. hex. bolt w/hex. nut and lockwasher

4шт.

F10002

BEARING, CUP

CUP - cam ball bearings

2шт.

F10003

PLUG - vent, for housing (can be used in place of 1/4" sq. hd. pipe plug)

1шт.

F10004

X

PLUG - welch (1-1/2" dia.) for housing

1шт.

F76784

STEERING UNIT ASSEMBLY, complete

1шт.

1/2" x 1-1/2" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

F77590

SUPPORT - steering gear

1шт.

1/2" x 1-1/2" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

F77988

HOUSING - cam, includes 2-V20461 bushing and 1-V14663 oil seal

1шт.

1-1/2" dia. expansion plug

1шт.

F77989

CAM AND STUB SHAFT

1шт.

F77990

SHAFT - lever includes 1-V20312 nut

1шт.

7/8" lockwasher (light)

1шт.

F77991

COVER - upper, for housing (includes G10728 oil seal)

1шт.

F77992

ARM - steering with ball

1шт.

G10728

SEAL

OIL SEAL - for F77991 cover

1шт.

VT728

COVER - side

1шт.

5/16" x 1" N.F. hex. hd. cap screw

4шт.

VT4905

X

BALL - (5/16" dia.) cam ball bearings

24шт.

V14124

O-RING

SCREW - side adjusting

1шт.

V14663

SUPPORT

OIL SEAL - for housing

1шт.

V20220

X

WASHER (9/16" O.D. x 21/64" I.D. #18 ga.) copper, side cover gasket (not shown)

4шт.

V20311

X

LOCK NUT - for side adjusting screw

1шт.

V20312

NUT - for lever shaft

1шт.

V20417

GASKET - side cover

1шт.

V20461

X

BUSHING - steering arm shaft

2шт.

V20707

GAUGE

SHIM (.003") upper cover

1шт.

V20708

SHIM

(.010") upper cover

1шт.

V20709

CABLE

SHIM (.002") upper cover

1шт.

V20956

RING - retaining, cam ball bearings

2шт.
