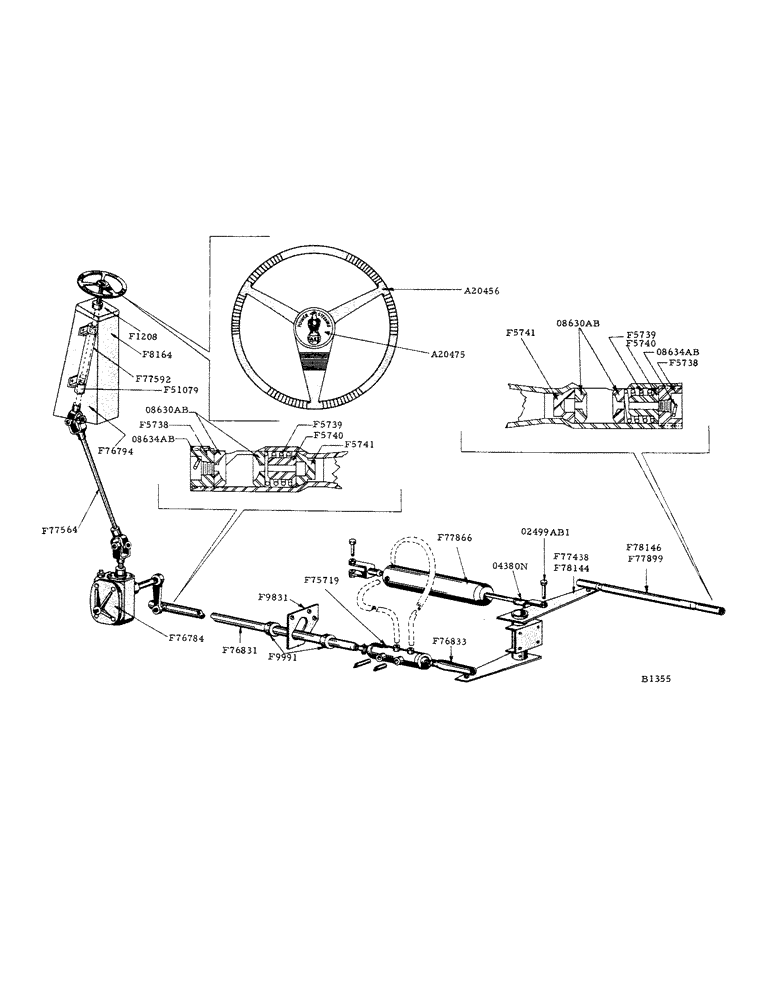

Запчасти Case IH 800 (288) - STEERING ASSEMBLY (41) - STEERING

A20456

WHEEL (STEERING)

WHEEL - steering

1шт.

A20475

CAP

MEDALLION - steering wheel

1шт.

F1208

CAP - steering column

1шт.

1/4" x 3/4" N.C. rd. hd. mach. screw w/hex. nut and lockwasher

4шт.

F8164

PANEL - rear, steering column

1шт.

1/4" x 3/8" N.C. rd. hd. mach. screw w/lockwasher

8шт.

F9831

GUIDE - drag link

1шт.

3/8" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

3шт.

F9991

COLLAR - stop, drag link

2шт.

1/2" x 1" N.F. sq. hd. set screw w/jam nut

4шт.

F51079

NEEDLE BEARING

BEARING (J.H. #1616 - O.H.) steering column support

2шт.

F76784

STEERING UNIT ASSEMBLY, complete

1шт.

1/2" x 1-1/2" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

F76794

COLUMN - steering

1шт.

1/4" x 1/2" N.F. hex. bolt w/hex. nut and lockwasher

4шт.

1/4" x 5/8" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

F77564

STEERING SHAFT - complete

1шт.

F77592

SUPPORT - bearing holder, upper steering shaft (includes 2-F51079 bearings)

1шт.

5/16" x 3/4" carr. bolt w/hex. nut, lockwasher and plain washer

4шт.

1/8" str. Lincoln fitting #5000

1шт.

010984AB

"O" RING - steering wheel medallion

1шт.

F7510

NUT - jam (11/16" - 18 N.F.) for F76831 drag link, power steering valve cylinder

1шт.

F9240

HOSE,0.25" ID x 36.00", SAE 100R1

- Hydraulic, From valve to cylinder, power steering, and linkage 0.25" ID x 36.00", SAE 100R1

2шт.

F9831

GUIDE - drag link, power steering, valve cylinder

1шт.

3/8" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher, power steering, valve cylinder, and linkage

3шт.

F9991

GUIDE - drag link, power steering, valve cylinder

1шт.

F75719

VALVE - for steering drag link, power, cylinder

1шт.

F76831

LINK - drag, front (see F7510), power steering, valve cylinder

1шт.

1/8" str. Lincoln fitting #5000, power steering, valve cylinder, and linkage

1шт.

F76833

SOCKET - steering valve, power, cylinder, and linkage

1шт.

1/8" str. Lincoln fitting #5000, power steering, valve cylinder, and linkage

1шт.

F77438

ARM - pivot (standard) see F78144, power steering, valve cylinder, and linkage

1шт.

3/8" x 1" N.F. hex. bolt w/hex. nut and lockwasher, power steering, valve cylinder, and linkage

2шт.

1/2" x 1-1/4" N.F. hex. bolt w/hex. nut and lockwasher, power steering, valve cylinder, and linkage

2шт.

1/8" str. Lincoln fitting #5000, power steering, valve cylinder, and linkage

1шт.

F77866

LOCK NUT

CYLINDER - power steering, valve, and linkage

1шт.

5/8" N.F. hex. jam nut, power steering, valve cylinder, and linkage

2шт.

F77899

LINK - drag, rear (regular - see F78146), power steering, valve cylinder

1шт.

1/8" str. Lincoln fitting #5000, power steering, valve cylinder, and linkage

2шт.

F78144

ARM - steering, pivot (narrow rear axle) see F77438, power, valve cylinder, and linkage

1шт.

1/8" str. Lincoln fitting #5000, power steering, valve cylinder, and linkage

1шт.

F78146

LINK - drag, rear (narrow rear axle att.), power steering, valve cylinder

1шт.

1/8" str. Lincoln fitting, #5000, power steering, valve cylinder, and linkage

2шт.

04380N

CLEVIS - each end of F77866 cylinder, valve, power steering, and linkage

2шт.

02499AB1

PIN - clevis, for 04380N clevis, power steering, valve cylinder, and linkage

2шт.

1/8" x 1" cotter pin, power steering, valve cylinder, and linkage

2шт.

F5738

SCREW - adjusting (Qty: F77899 - 2; F76831, F76833 - 1), parts for drag links

1шт.

F5739

SPRING (Qty: F77899 - 2; F76831, F76833 - 1), parts for drag links

1шт.

F5740

SUPPORT - spring (Qty: F77899 - 2; F76831, F76833 - 1), parts for drag links

1шт.

F5741

STOP - spring (Qty: F77899 - 2; F76831, F76833 - 1), parts for drag links

1шт.

08630AB

BEARING (Qty: F77899 - 4; F76831, F76833 - 2), parts for drag links

1шт.

08634AB

WIRE - lock (Qty: F77899 - 2; F76831, F76833 - 1), parts for drag links

1шт.
