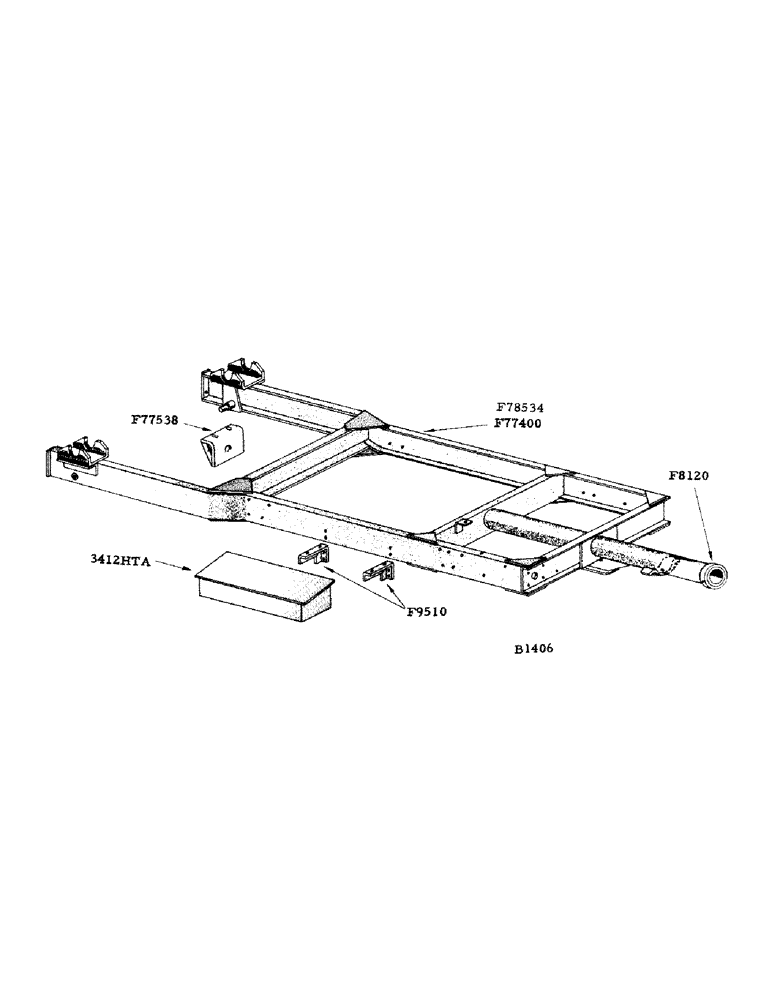

Запчасти Case IH 800 (285) - MAIN FRAME (39) - FRAMES AND BALLASTING

F8120

COLLAR - axle

1шт.

F77400

MAIN FRAME - (before no. 8179751) see F785234

1шт.

F77538

SUPPORT - transmission

1шт.

F78534

MAIN FRAME - (after no. 8179751) see F77400

1шт.

F1259

WRENCH - sickle guard straightener (see sickle guards), tool box

1шт.

F9510

ANGLE - tool box support

2шт.

5/16" x 3/4" N.F. hex. bolt w/hex, nut and lockwasher, tool box

4шт.

F9511

WRENCH - pitman adjustment screw, tool box

1шт.

3412HTA

TOOL BOX

1шт.

5/16" x 5/8" N.F. hex. bolt w/hex. nut, lockwasher and plain washer, tool box

4шт.
