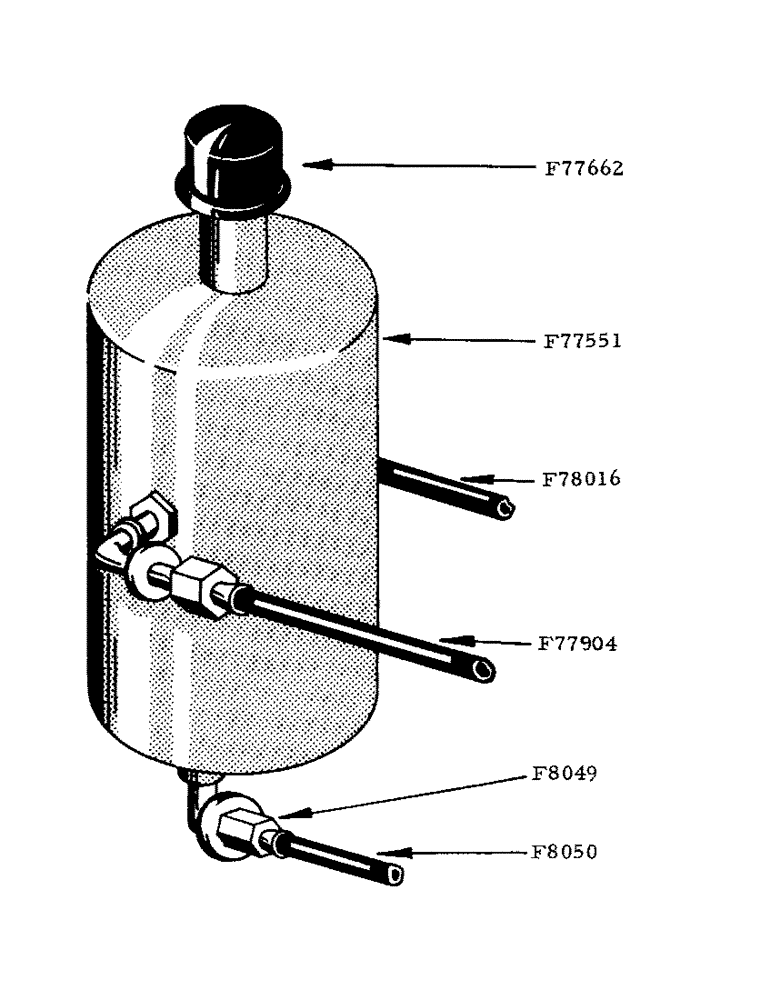

Запчасти Case IH 800 (259) - OIL RESERVOIR FOR HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

F8049

COUPLING - for F8050 intake hose

1шт.

F8050

HOSE (28-1/4" braid) intake, from, Serial Range: reservoir-pump

1шт.

#11-1/2 hose clamp

2шт.

F77551

RESERVOIR - oil, hydraulic

1шт.

3/8" x 3/4" N.C. hex. bolt and lockwasher

4шт.

F77662

DIP STICK - oil reservoir gauge

1шт.

F77904

LINE (3/8" O.D.) power steering valve hose to reservoir (includes 2-R218-343 nut and 2-R218-363 sleeve) see hydraulic system

1шт.

R218-443 connector

2шт.

1/4" - 90deg. street ell

1шт.

F78016

LINE (1/2" O.D.) from F77014 line to F77551 reservoir (includes 2-R218-344 nuts and 2-R218-364 sleeves) see hydraulic system

1шт.

1/8" - 90deg. street ell

1шт.
