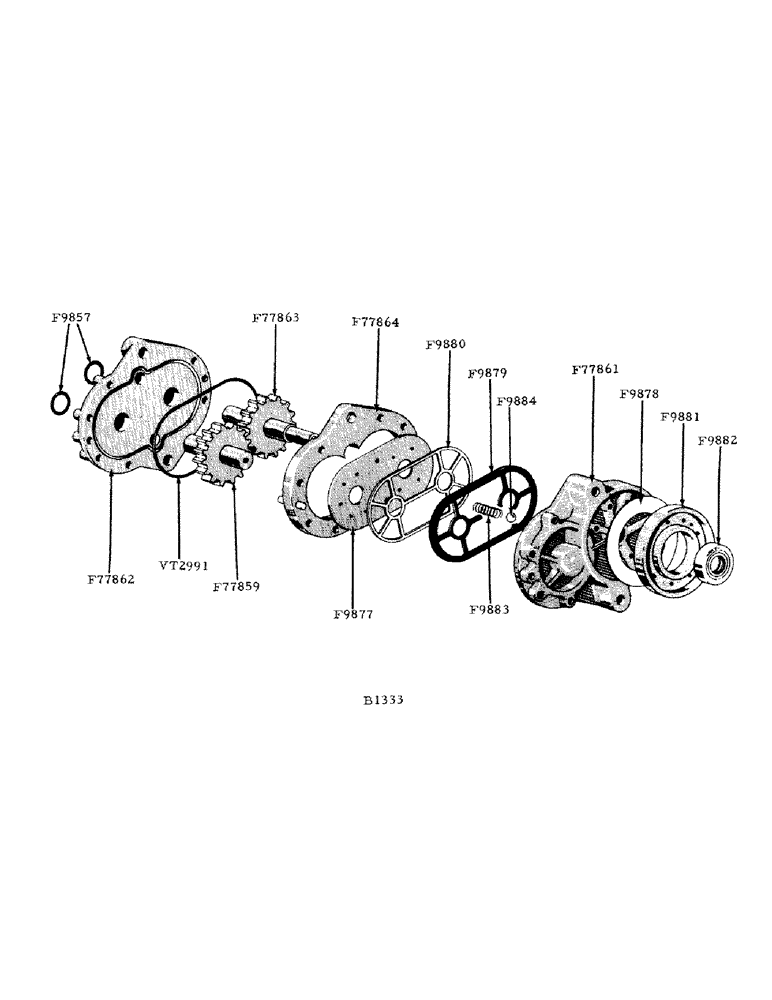

Запчасти Case IH 800 (257) - HYDRAULIC PUMP (35) - HYDRAULIC SYSTEMS

F9857

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

"O" RINGS - flow divider (3/32" x 1-1/4" O.D.)

2шт.

Part of Hydraulic Pump Repair Kit P/N F78406

1шт.

F9877

DIAPHRAGM - front plate

1шт.

F9878

GASKET - seal retainer

1шт.

Part of Hydraulic Pump Repair Kit P/N F78406

1шт.

F9879

SEAL

"V" SEAL - moulded, for front plate

1шт.

Part of Hydraulic Pump Repair Kit P/N F78406

1шт.

F9880

SEAL

- diaphragm, front plate (phenolic gasket)

1шт.

Part of Hydraulic Pump Repair Kit P/N F78406

1шт.

F9881

RETAINER - seal

1шт.

F9882

SEAL

- shaft

1шт.

Part of Hydraulic Pump Repair Kit P/N F78406

1шт.

F9883

SPRING

- steel ball

1шт.

F9884

X

STEEL BALL (7/32" dia.) front plate

1шт.

F77859

GEAR - idler (includes shaft)

1шт.

F77861

LOCK NUT

PLATE - front

1шт.

F77862

LOCK NUT

PLATE - back

1шт.

F77863

GEAR - drive (includes shaft)

1шт.

F77864

LOCK NUT

BODY - pump w/dowel pins

1шт.

F78406

HYDRAULIC PUMP REPAIR KIT. Includes: P/N F9857, P/N F9878, P/N F9879, P/N F9880 and P/N F9882

1шт.

VT2991

X

"O" RING - back plate (1/8" x 3-3/8")

1шт.
