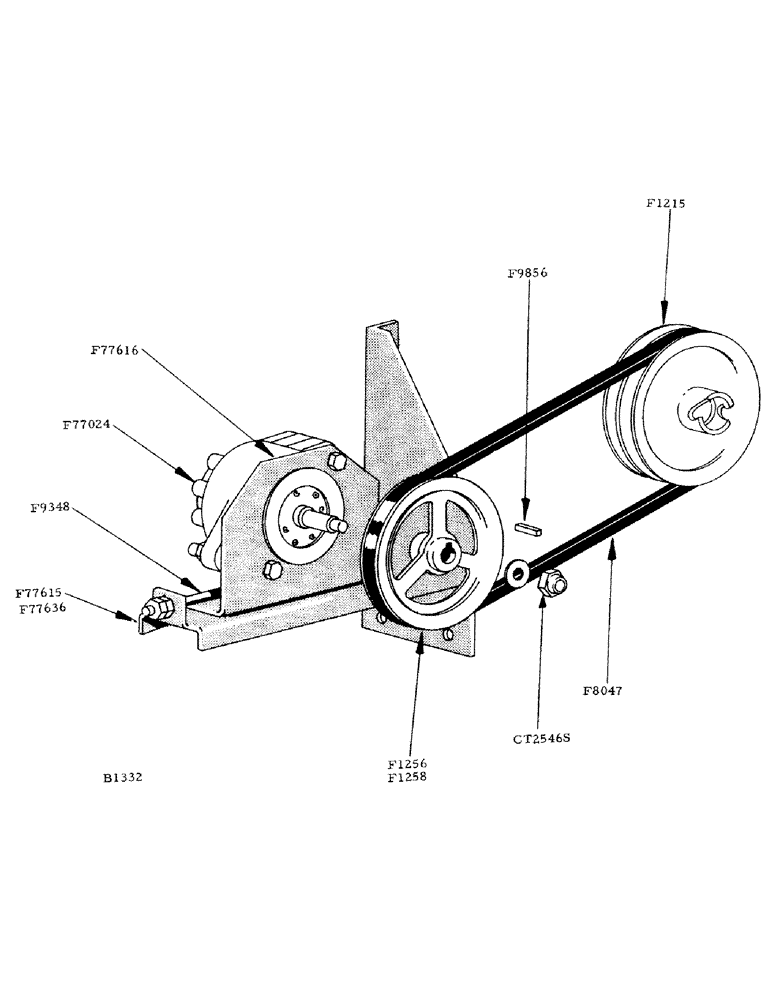

Запчасти Case IH 800 (256) - HYDRAULIC PUMP DRIVE (35) - HYDRAULIC SYSTEMS

F1215

SHEAVE - double, drives fan and hydraulic pump

1шт.

F1256

SHEAVE - (7-7/16" O.D. - 3 spokes) hydraulic pump drive, driven (power steering) see F1258

1шт.

F1258

SHEAVE - (9-5/8 O.D.) hydraulic pump drive (standard) see F1256

1шт.

F8047

BELT

Hydraulic Pump Drive

1шт.

F9348

BOLT - adjustment, (3/8" x 3-1/2") hydraulic pump drive

1шт.

3/8" x 1-1/2" N.C. hex. bolt w/hex. nut, lockwasher and plain washer

1шт.

3/8" N.C. hex. nut and lockwasher

1шт.

F9856

KEY

- (1/8" x 1/8" x 3/16") for F1256 or F1258 sheave

1шт.

F77024

PUMP - hydraulic

1шт.

F77615

BRACKET - support, engine and hydraulic pump (power steering) see F77636

1шт.

3/4" x 2" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

F77616

PLATE - adjusting, hydraulic pump

1шт.

3/8" x 1" N.C. rd. hd. sq. neck bolt w/hex. nut, lockwasher and plain washer

3шт.

F77636

BRACKET - support, engine and hydraulic pump (standard) see F77615

1шт.

3/4" x 2" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

CT2546S

X

NUT - elastic stop (ESNA #29-E-080) for drive sheave

1шт.
